xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
MAC Address Table
This allows the Switch's dynamic MAC address
forwarding table to be viewed. When the Switch learns
an association between a MAC address and a port
number, it makes an entry into its forwarding table.
These entries are then used to forward packets through
the Switch.
To view the MAC Address forwarding table, click
Monitoring > MAC Address Table:

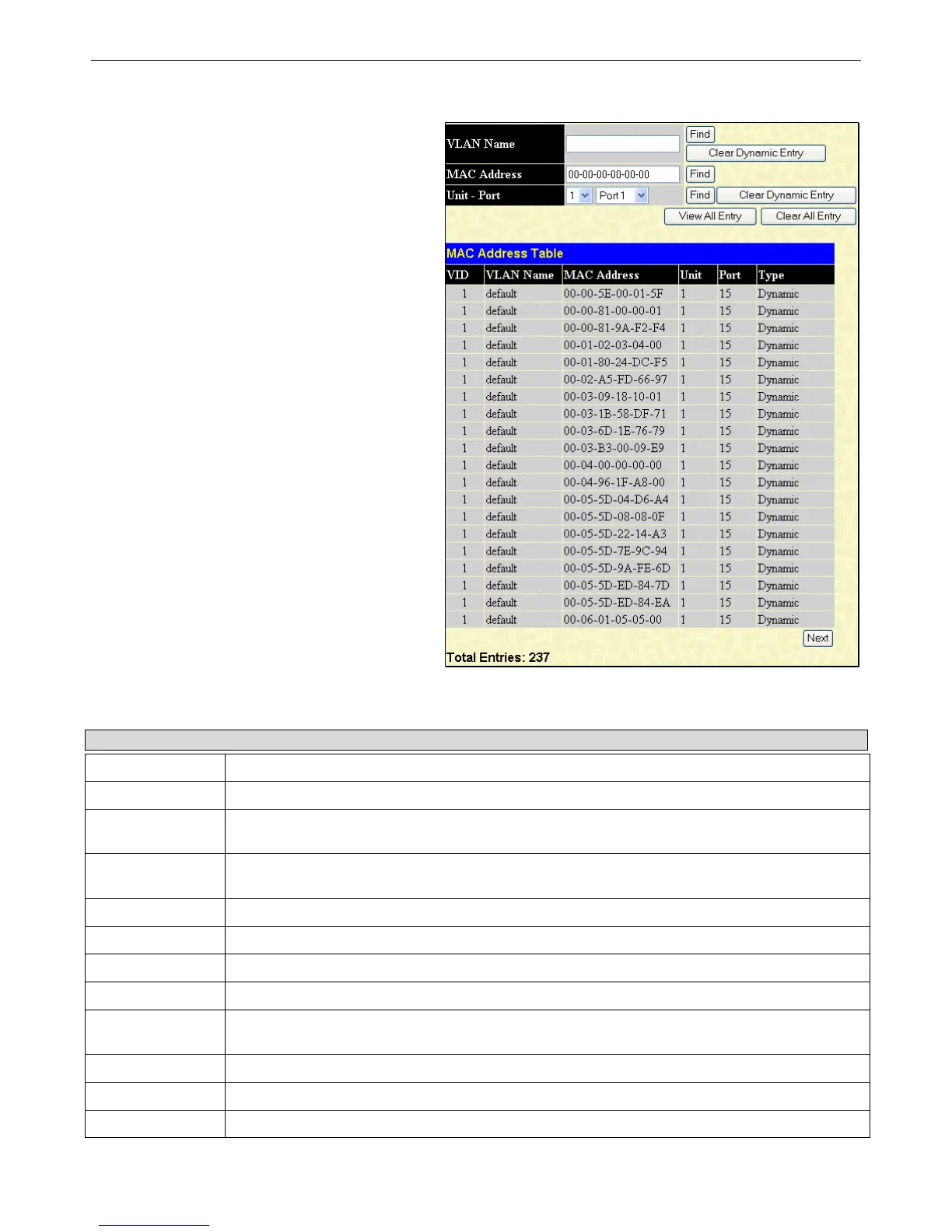

Figure 11- 24. MAC Address Table
The functions are used in the MAC address table:
Parameter Description
VLAN Name
Enter a VLAN Name for the forwarding table to be browsed by.
MAC Address
Enter a MAC address for the forwarding table to be browsed by.
Unit – Port
Select the unit of the switch in the switch stach, and a port on that switch, where to find the MAC
address.
Find
Allows the user to move to a sector of the database corresponding to a user defined port, VLAN,
or MAC address.
VID
The VLAN ID of the VLAN of which the port is a member.
VLAN Name
The VLAN Name of the VLAN of which the port is a member.
MAC Address
The MAC address entered into the address table.
Unit - Port
The unit and port to which the MAC address above corresponds.
Type
Describes the method which the Switch discovered the MAC address. The possible entries are
Dynamic, Self, and Static.
Next
Click this button to view the next page of the address table.
View All Entry
Clicking this button will allow the user to view all entries of the address table.
Clear All Entry
Clicking this button will allow the user to delete all entries of the address table.
