xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

STP Bridge Global Settings

To open the following window, click Layer 2 Features > Spanning Tree > STP Bridge Global Settings link. Use the STP

Status pull-down selector to enable or disable STP globally, and choose the STP method used with the STP Version menu.

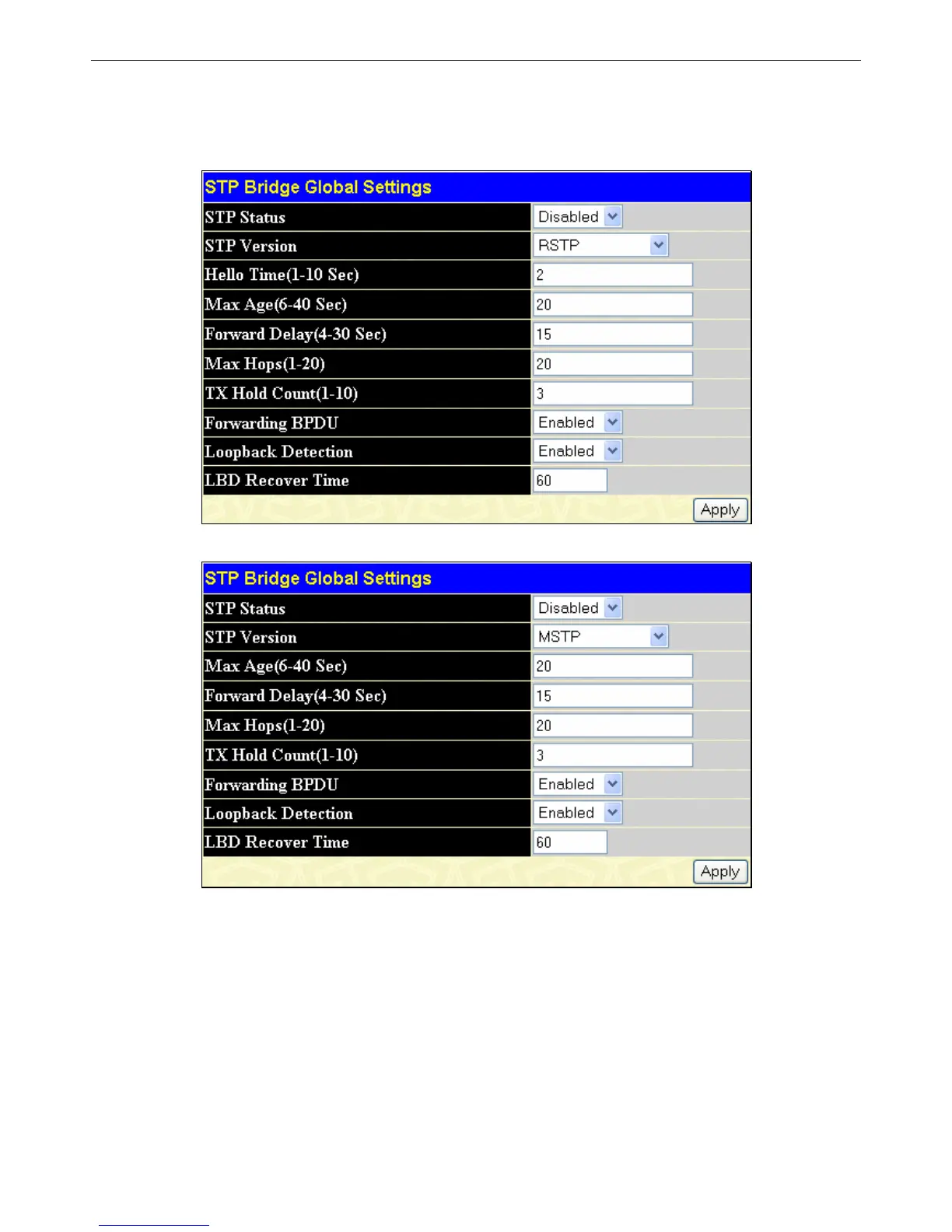

Figure 7- 36. STP Bridge Global Settings window – RSTP (default)

Figure 7- 37. STP Bridge Global Settings window - MSTP

152
