xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

Browse Routing Table

The Browse Routing Table window shows the current IP routing table of the Switch. To find a specific IP route, enter an IP

address into the IP Address field along with a proper subnet mask into the Netmask field and click Find. To view this table,

click, Monitoring > Browse Routing Table.

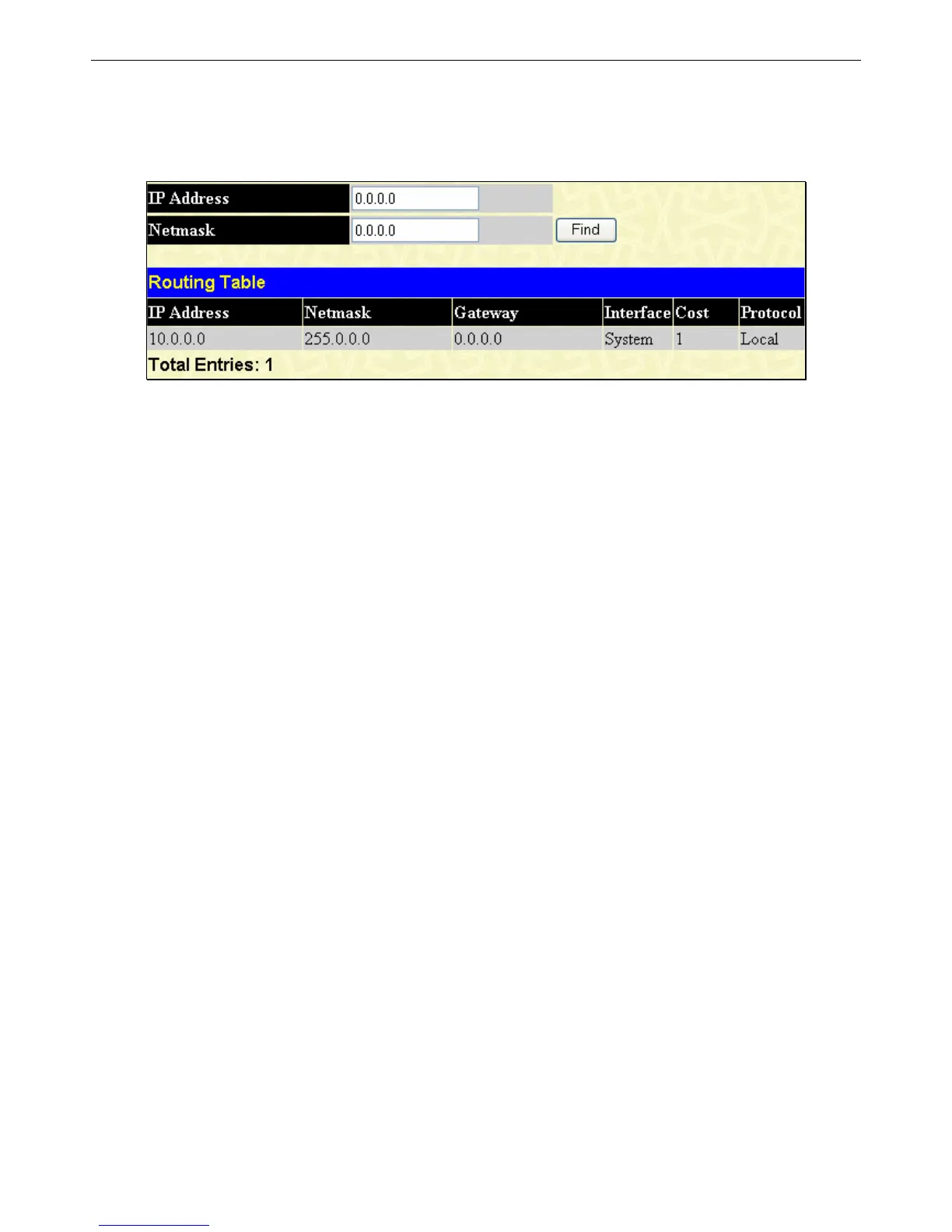

Figure 11- 31. Browse Routing Table
