xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Replace
Source IP
This parameter specifies the replacement for the source port of the ISM VLAN, which connects
with the uplink server.
To configure the IGMP Snooping Multicast VLAN Group List, click its corresponding button, which will produce the
following window for the user to configure.

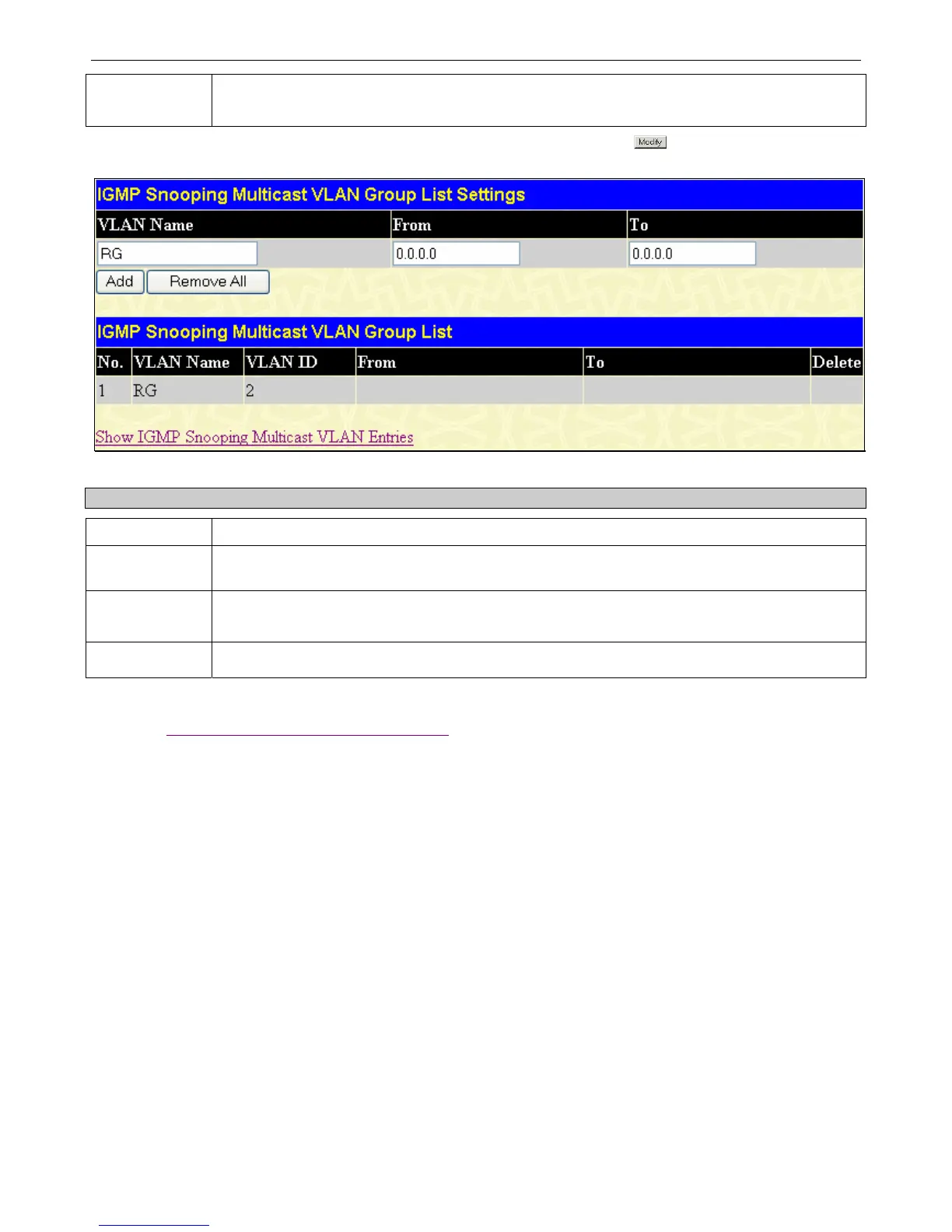

Figure 7- 29. IGMP Snooping Multicast VLAN Group List Settings - Modify window
Parameter Description
No.
This is the number of the group that has been created.
VLAN Name
This is the VLAN Name that, along with the VLAN ID, identifies the VLAN the user wishes to
modify.
VLAN ID
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN the user wishes to
modify.
From……..To
Enter the starting and ending IP address of the group.
To add a new group enter the corresponding information and click Add, to remove previously configured group entries enter the
corresponding information and click Remove All. To view the IGMP Snooping Muticast VLAN Entries Table, click the
hyperlinked Show IGMP Snooping Multicast VLAN Entries
.
Limited Multicast Address Range
The Limited Multicast Address Range window allows the user to specify which multicast address(es) reports are to be received
on specified ports on the Switch. This function will therefore limit the number of reports received and the number of multicast
groups configured on the Switch. The user may set an IP address or range of IP addresses to accept reports (Permit) or deny
reports (Deny) coming into the specified switch ports. Click L2 Features > IGMP Snooping > Limited Multicast Address
Range to view the window shown below:
To configure Limited IP Multicast Range:
Choose the port or sequential range of ports using the From…To… port pull-down menus.
Use the remaining pull-down menus to configure the parameters described below:
