xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Errors
The Web Manager allows port error statistics compiled by the Switch's management agent to be viewed as either a line graph or a
table. Four windows are offered.
Received (RX)
To select a port to view these statistics for, first select the Switch in the switch stack by using the Unit pull-down menu and then
select the port by using the Port pull down menu. The user may also use the real-time graphic of the Switch and/or switch stack at
the top of the web page by simply clicking on a port. Click, Monitoring > Errors > Received (RX) to view the following graph
of error packets received on the Switch.

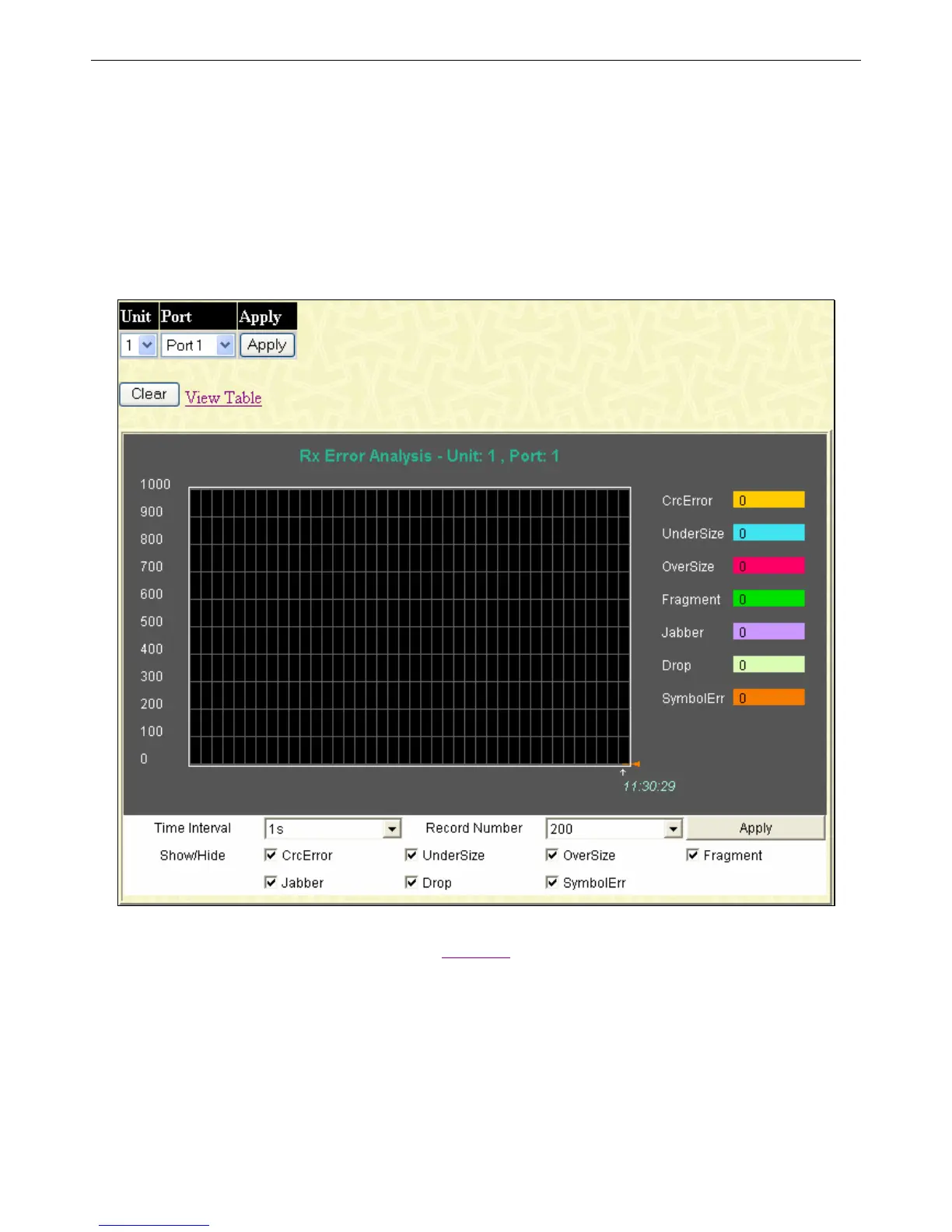

Figure 11- 12. Rx Error Analysis window (line graph)
To view the Received Error Packets Table, click the link View Table, which will show the following table:
