xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

VLAN Status

This allows the VLAN status for each of the Switch's ports to be viewed by VLAN. This window displays the ports on the Switch

that are currently Egress (E) or Tag (T) ports. To view the following table, click Monitoring > VLAN Status.

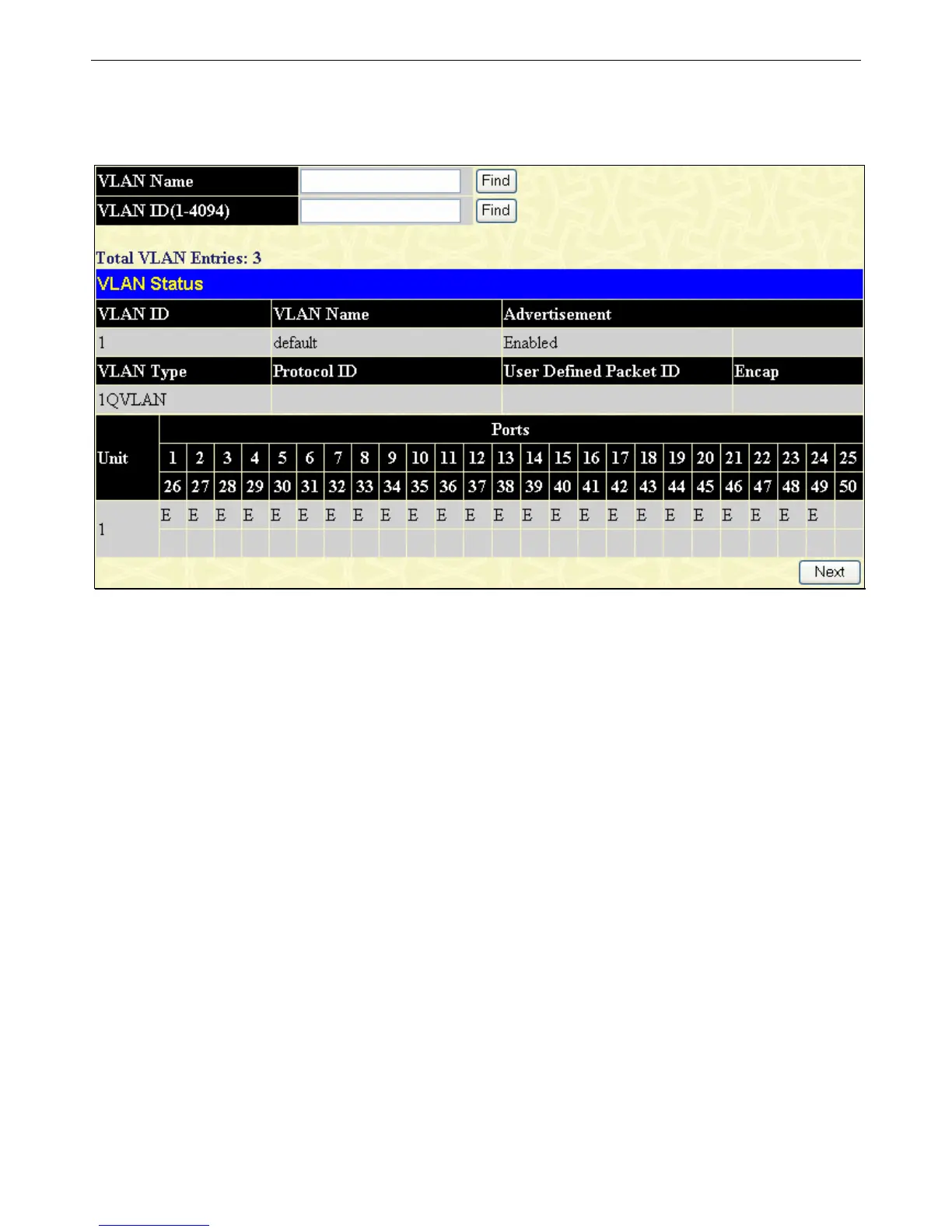

Figure 11- 20. VLAN Status window

267
