xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

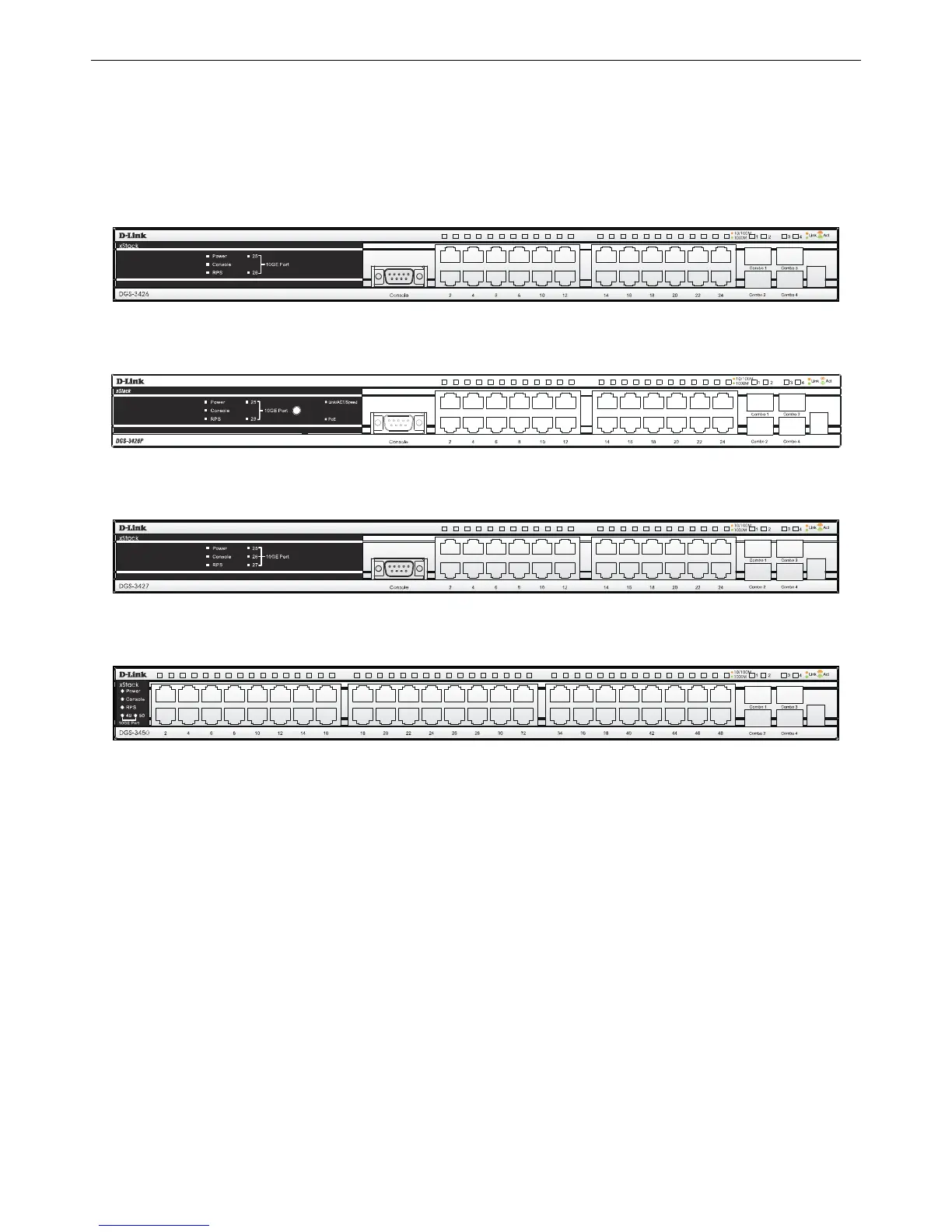

Front-Panel Components
The front panel of the Switch consists of LED indicators for Power, Master, Console, RPS, and for Link/Act for each port on the
Switch including 10GE Ports for optional modules and SFP port LEDs. The front panel includes a seven-segment LED indicating
the Stack ID number. A separate table below describes LED indicators in more detail. DGS-3426P also includes a Mode Select
button for changing the mode Link/Act/State to PoE.
DGS-3426
Figure 2- 1. Front Panel View of the DGS-3426 as shipped
DGS-3426P
Figure 2- 2. Front Panel View of the DGS-3426P as shipped
DGS-3427
Figure 2- 3. Front Panel View of the DGS-3427 as shipped
DGS-3450
Figure 2- 4. Front Panel View of the DGS-3450 as shipped
4
