xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

VLAN Status Port

This window allows the VLAN status for each of the Switch's ports to be viewed. To view the following table, click Monitoring

> VLAN Status Port.

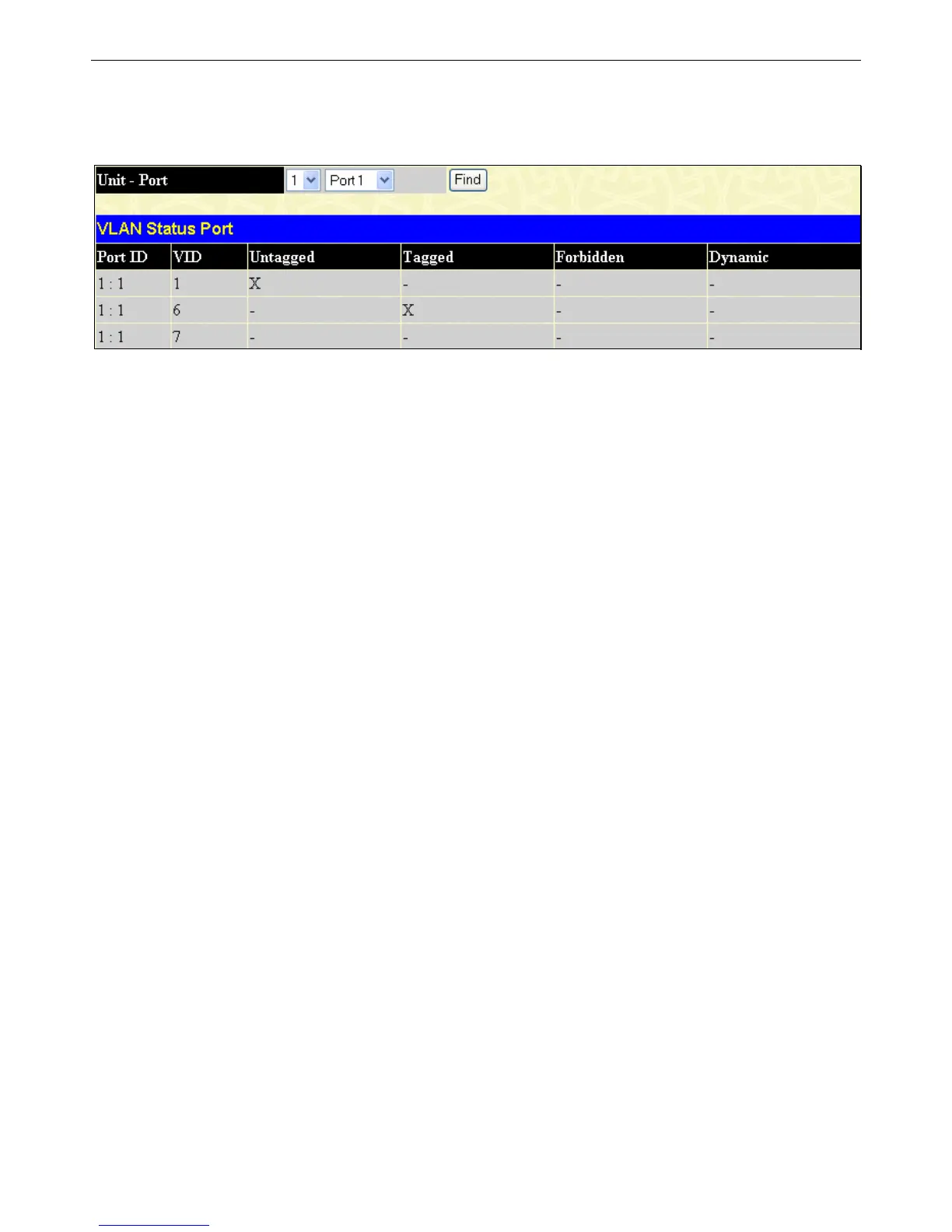

Figure 11- 21. VLAN Status Port window

Enter the port number and click

Find

, the VLAN port status will be displayed on the VLAN Status Port

table shown on the lower part of the window.

268
