xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch

Configure 802.1X Authenticator

To configure the 802.1X authenticator settings, click Security > 802.1X > Configure 802.1X Authenticator Parameter. The

user may toggle between switches in the switch stack by using the Unit pull-down menu.

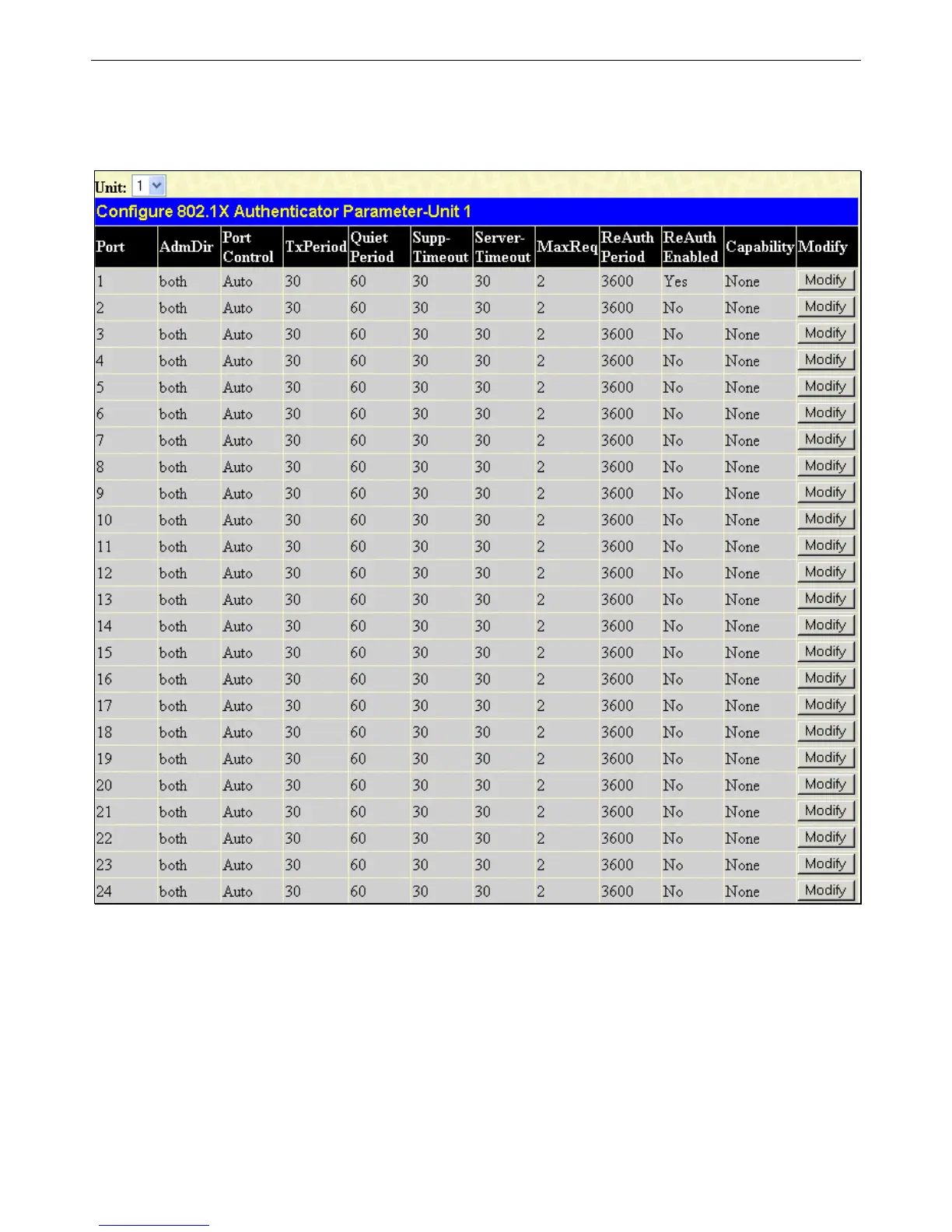

Figure 10- 14. Configure 802.1X Authenticator Parameter window

To configure the settings by port, click on its corresponding Modify button, which will display the following table to configure:

213
