xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Transmitted (TX)
To select a port to view these statistics for, first select the Switch in the switch stack by using the Unit pull-down menu and then
select the port by using the Port pull down menu. The user may also use the real-time graphic of the Switch and/or switch stack at
the top of the web page by simply clicking on a port. Click, Monitoring > Packets > Transmitted (TX) to view the following
graph of packets transmitted from the Switch.

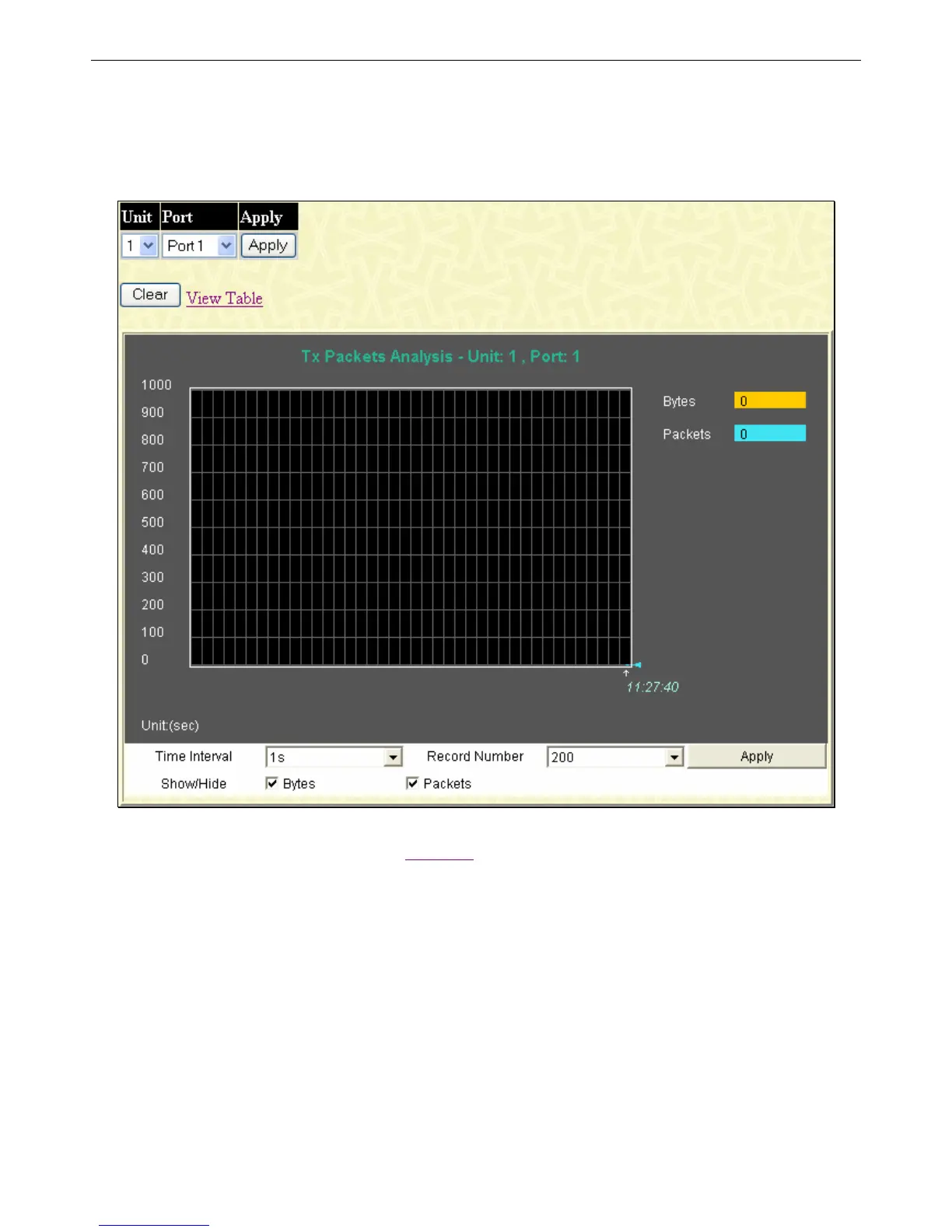

Figure 11- 10. Tx Packets Analysis window (line graph for Bytes and Packets)
To view the Transmitted (TX) Table, click the link View Table.
256
