Device Information
The Device Information window contains the main
settings for all major functions for the Switch. It appears
automatically when you log on to the Switch. To return
to the Device Information window after viewing other
windows, click the DGS-3400 Web Management Tool
folder. The Device Information window shows the
Switch’s MAC Address (assigned by the factory and
unchangeable), the Boot PROM, Firmware Version,
Hardware Version and Serial Number. This
information is helpful to keep track of PROM and
firmware updates and to obtain the Switch's MAC
address for entry into another network device's address
table, if necessary. The user may also enter a System
Name, System Location and System Contact to aid in
defining the Switch, to the user's preference. In addition,
this screen displays the status of functions on the Switch
to quickly assess their current global status. Some
Functions are hyper-linked for easy access from the
Device Information window.
Many miscellaneous functions are enabled and disabled
in the Device Information menu.
NOTE: DGS-3426/DGS-
3427/DGS-3450/DGS-3426P
will display the serial number in
the Device Information window
for Firmware 2.35.B09.

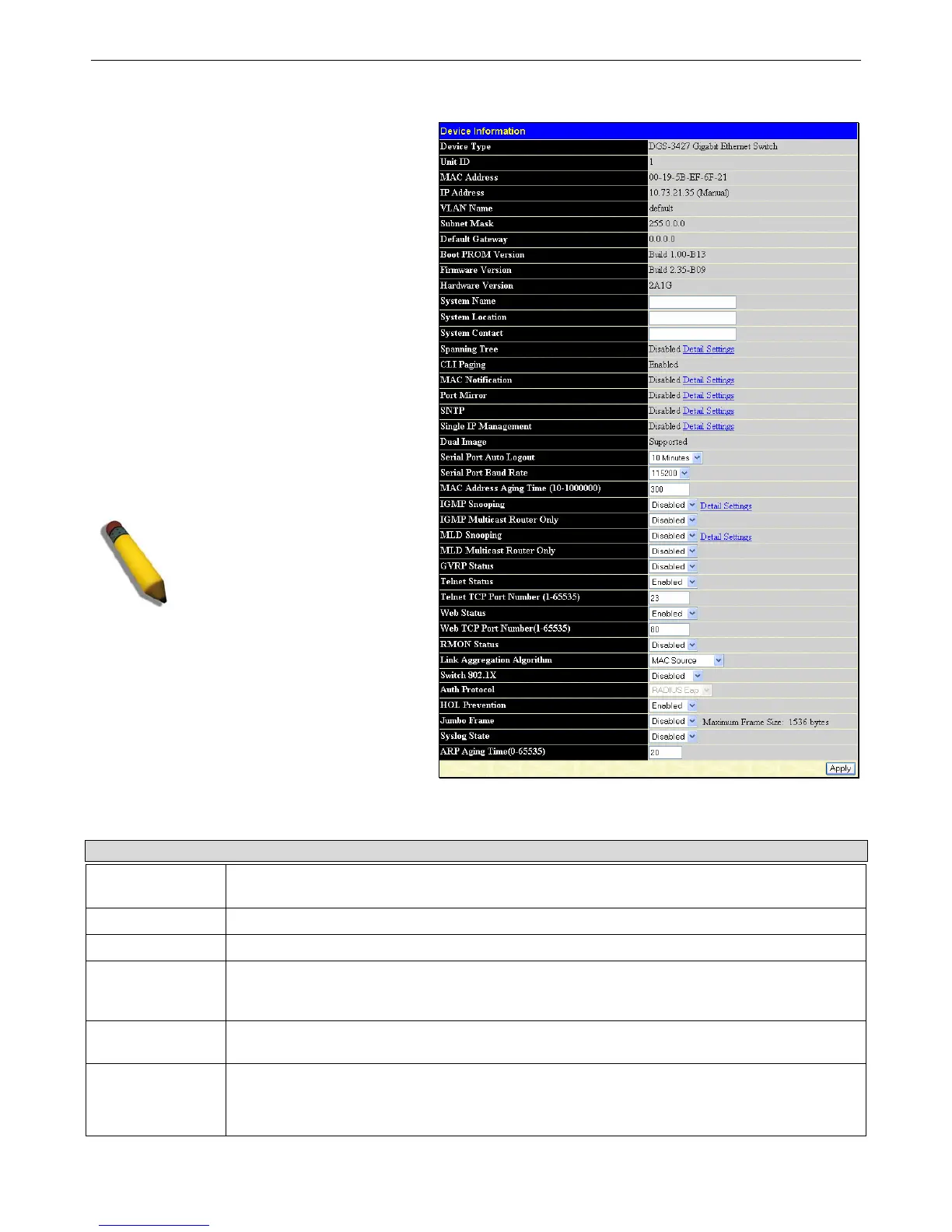

Figure 6- 1. Device Information window
Device Information menu configurable parameters include those described in the table below.
Parameter Description
System Name
Enter a system name for the Switch, if so desired. This name will identify it in the Switch
network.
System Location
Enter the location of the Switch, if so desired.
System Contact
Enter a contact name for the Switch, if so desired.
Serial Port Auto
Logout Time
Select the logout time used for the console interface. This automatically logs the user out after
an idle period of time, as defined. Choose from the following options: 2 Minutes, 5 Minutes, 10
Minutes, 15 Minutes or Never. The default setting is 10 minutes.
Serial Port Baud
Rate
This field specifies the baud rate for the serial port on the Switch. The default setting is 115200.
MAC Address
Aging Time
This field specifies the length of time a learned MAC Address will remain in the forwarding table
without being accessed (that is, how long a learned MAC Address is allowed to remain idle). To
change this, type in a different value representing the MAC address age-out time in seconds.
The MAC Address Aging Time can be set to any value between 10 and 1,000,000 seconds. The
