Port Speed
Displays the connection speed between the CS and the MS or CaS
Commander Switch Icon

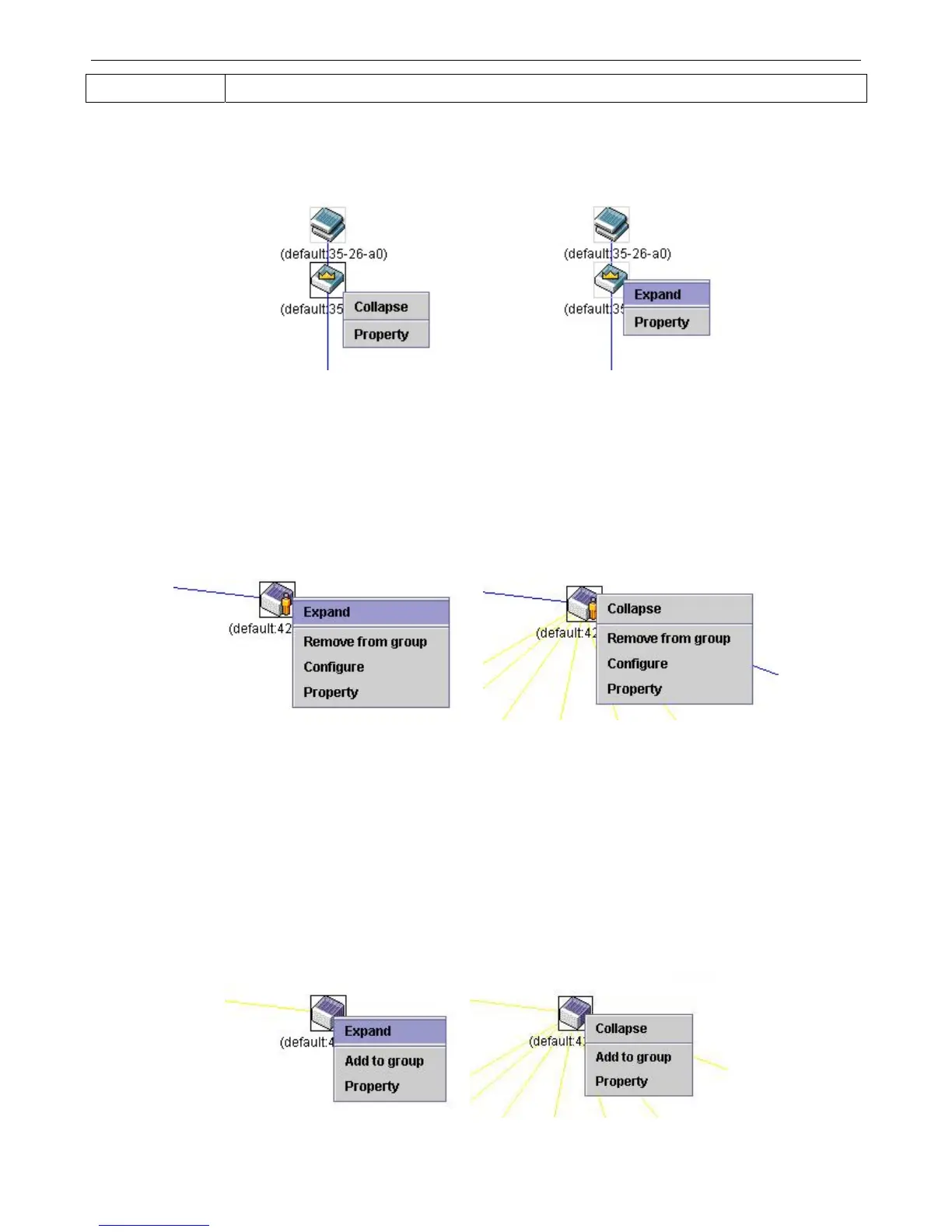

Figure 6- 81. Right Clicking a Commander Icon
The following options may appear for the user to configure:
• Collapse - to collapse the group that will be represented by a single icon.
• Expand - to expand the SIM group, in detail.
• Property - to pop up a window to display the group information.
Member Switch Icon
Figure 6- 82. Right Clicking a Member icon
The following options may appear for the user to configure:
• Collapse - to collapse the group that will be represented by a single icon.
• Expand - to expand the SIM group, in detail.
• Remove from group - remove a member from a group.
• Configure - launch the web management to configure the Switch.
• Property - to pop up a window to display the device information.
Candidate Switch Icon
