xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Connecting To Network Backbone or Server
The combo SFP ports and the 1000BASE-T ports are ideal for uplinking to a network backbone, server or server farm. The copper
ports operate at a speed of 1000, 100 or 10Mbps in full or half duplex mode. The fiber-optic ports can operate at 1000Mbps in full
duplex mode only.
Connections to the Gigabit Ethernet ports are made using a fiber-optic cable or Category 5e copper cable, depending on the type
of port. A valid connection is indicated when the Link LED is lit.

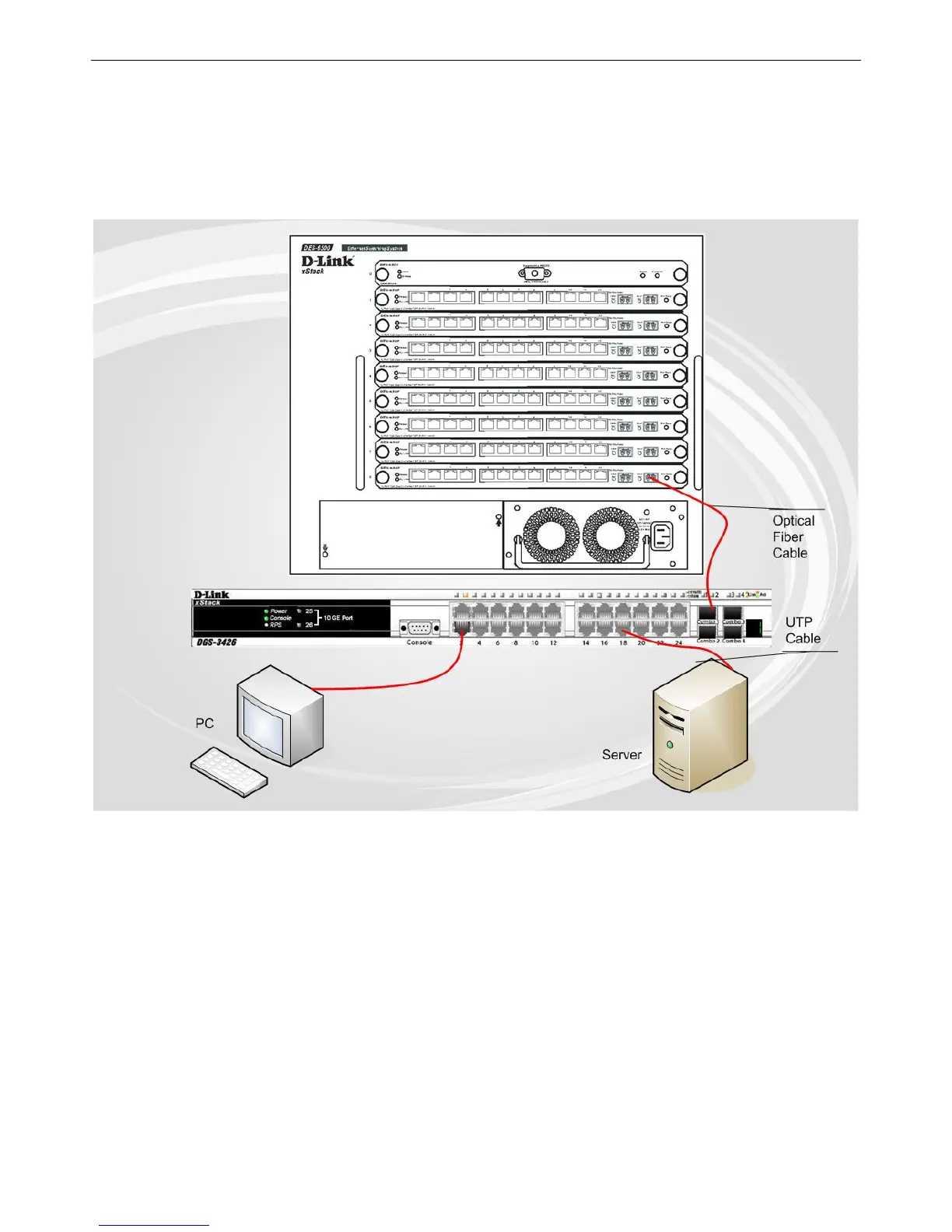

Figure 3- 3. DGS-3400 uplink connection to a server, PC or switch stack.
