xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
UMB Cast (RX)
To select a port to view these statistics for, first select the Switch in the switch stack by using the Unit pull-down menu and then
select the port by using the Port pull down menu. The user may also use the real-time graphic of the Switch and/or switch stack at
the top of the web page by simply clicking on a port. Click Monitoring > Packets > UMB Cast (RX) to view the following graph.

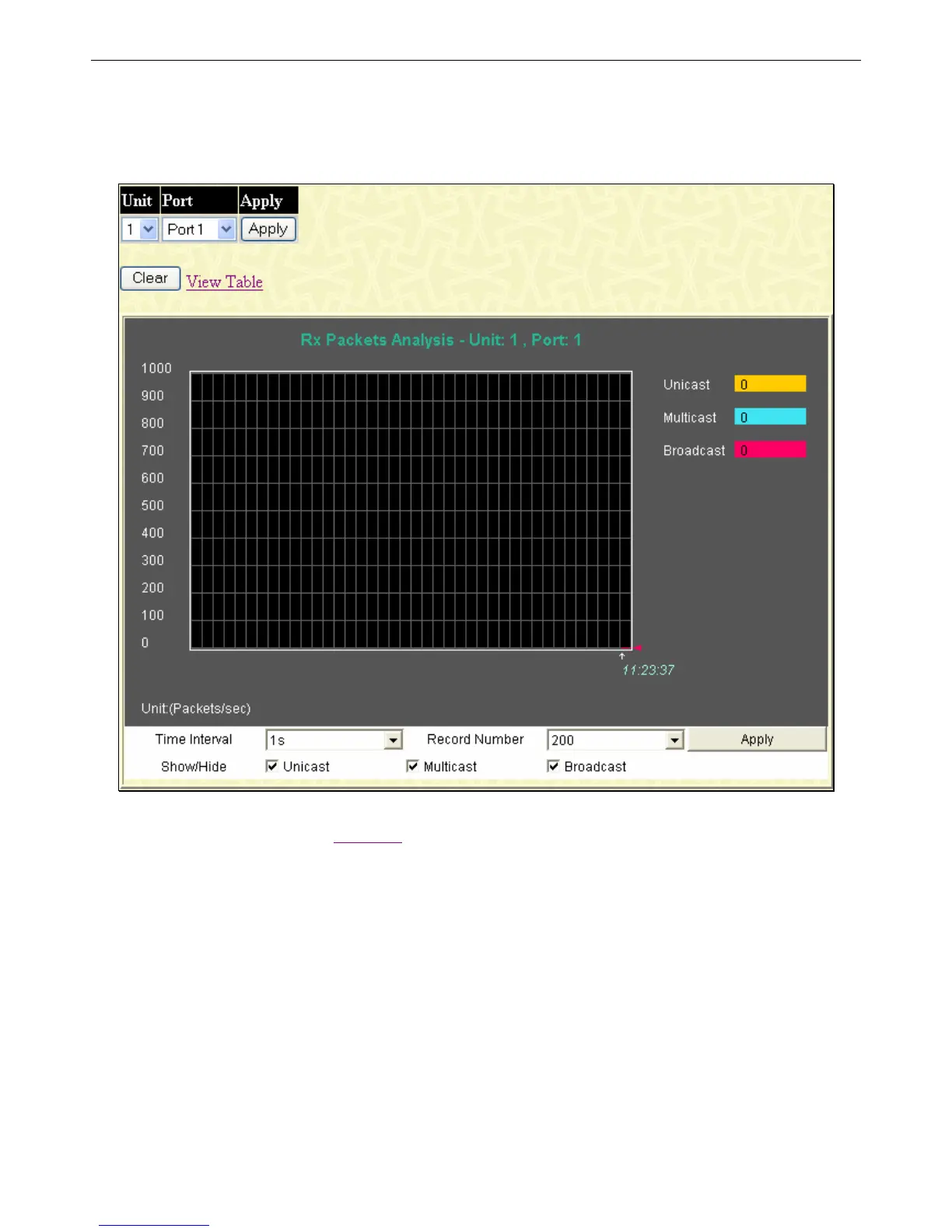

Figure 11- 8. Packets Analysis (line graph for Unicast, Multicast, and Broadcast Packets)
To view the UMB Cast Table, click the View Table link.
