xStack
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
101
• Collapse – to collapse the group that will be represented by a single icon.
• Expand – to expand the SIM group, in detail.
• Add to group – add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.

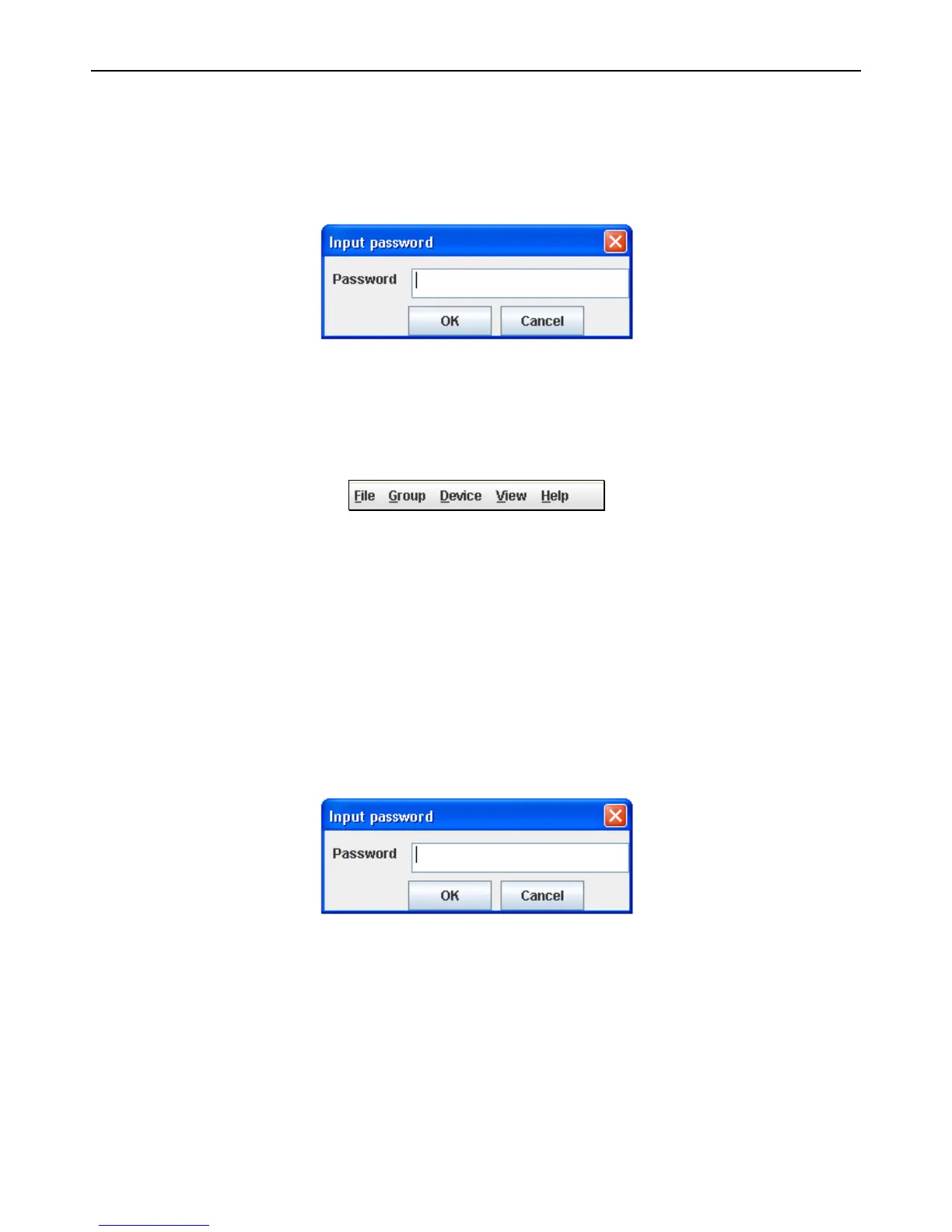

Figure 2 - 112 Input password dialog
• Property – to pop up a window to display the device information.
Menu Bar
The Single IP Management window contains a menu bar for device configurations, as seen below.
Figure 2 - 113 Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
• Print Setup – will view the image to be printed.
• Print Topology – will print the topology map.
• Preference – will set display properties, such as polling interval, and the views to open at SIM startup.
Group
• Add to group – add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.
Figure 2 - 114 Input password dialog
• Remove from Group - Remove an MS from the group.
Device
• Configure - will open the Web manager for the specific device.
View
• Refresh - update the views with the latest status.
• Topology - display the Topology view.
