Permanent – The locked addresses will only age out after the Switch has been reset.
DeleteOnTimeout – The locked addresses will age out after the aging timer expires.
DeleteOnReset – The locked addresses will not age out until the Switch has been
reset or rebooted.
Clear
Click the
to clear MAC address entries which were learned by the Switch by a
specified port. This only relates to the port security function. This command will only
take effect if the Mode is set as Permanent or DeleteonReset.
Click Apply to implement changes made.
Port Security Entries
The Port Lock Entry Delete window is used to remove an entry from the port security entries learned by the Switch and entered
into the forwarding database.
This function is only operable if the Mode in the Port Security window is selected as Permanent or DeleteOnReset, or in other
words, only addresses that are statically learned by the Switch can be deleted. Once the entry has been defined by entering the
correct information into the window above, click the
under the Delete heading of the corresponding MAC address to be deleted.
Click the Next button to view the next page of entries listed in this table.
To view this window, click Security > Port Security > Port Lock Entries, as shown below:

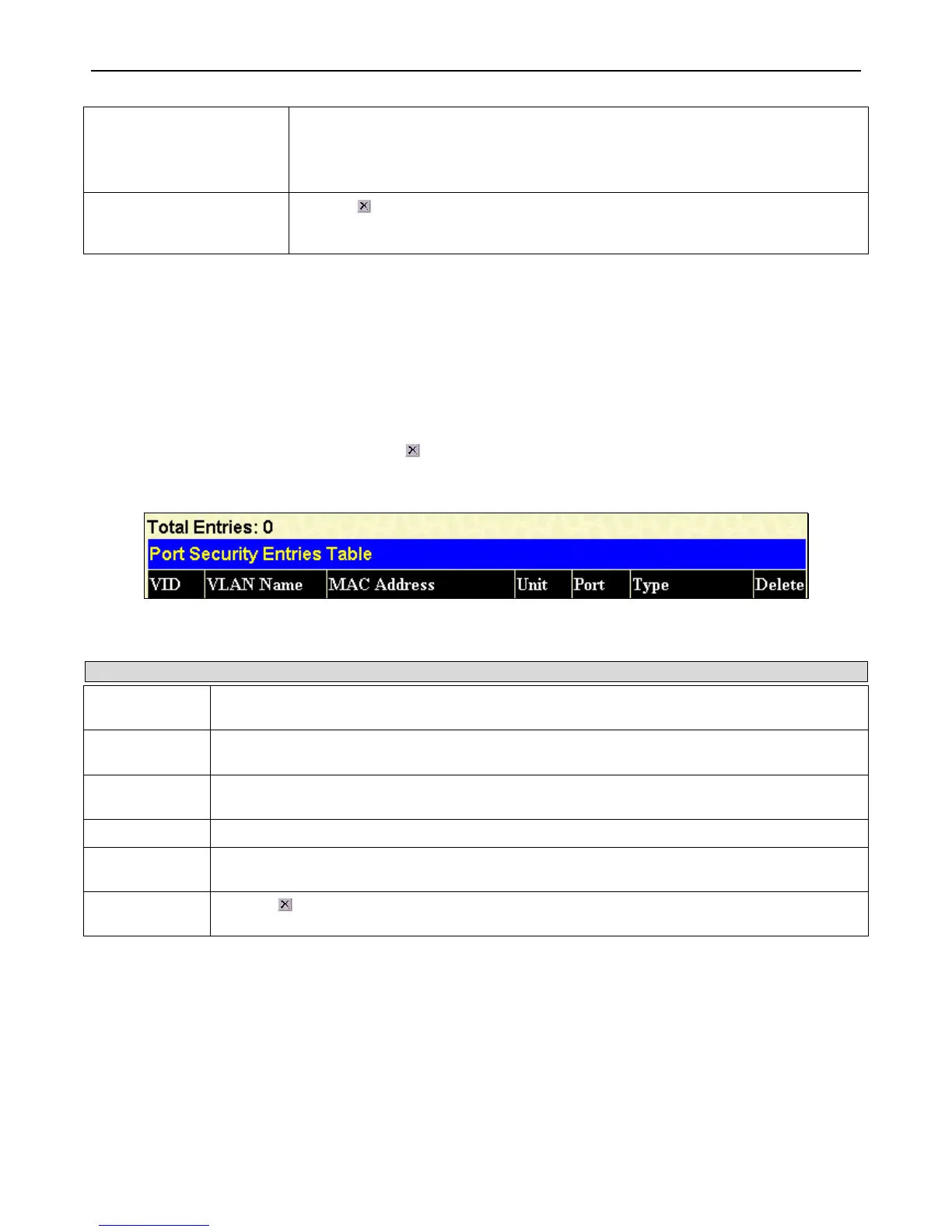

Figure 6 - 4 Port Lock Entries Table
This window displays the following information:
Parameter Description
VID
The VLAN ID of the entry in the forwarding database table that has been permanently learned by
the Switch.
VLAN Name
The VLAN Name of the entry in the forwarding database table that has been permanently learned
by the Switch.
MAC Address
The MAC address of the entry in the forwarding database table that has been permanently learned
by the Switch.
Port
The ID number of the port that has permanently learned the MAC address.
Type
The type of MAC address in the forwarding database table. Only entries marked Permanent or
Delete on Reset can be deleted.
Delete
Click the
in this field to delete the corresponding MAC address that was permanently learned by
the Switch.
To Next Page
