xStack
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
118
Protocol Type Header in Hexadecimal Form
IP over Ethernet 0x0800
IPX 802.3 0xFFFF
IPX 802.2 0xE0E0
IPX SNAP 0x8137
IPX over Ethernet2 0x8137
decLAT 0x6004
SNA 802.2 0x0404
netBios 0xF0F0
XNS 0x0600
VINES 0x0BAD
IPV6 0x86DD
AppleTalk 0x809B
RARP 0x8035
SNA over Ethernet2 0x80D5
Table 3 - 2 Protocol VLAN and the corresponding protocol value
To achieve this goal, users must first properly set the type of protocol, along with the identifying value located in the packet
header and apply it to a protocol group, which is identified by an ID number. Once the group has been created and configured,
then users must add it to a port or set of ports using the Protocol VLAN Port Settings window, and configure the appropriate
VLAN and priority tags for these untagged packets. When these actions are completed and saved to the switch, then the ingress
and untagged packets can be appropriately dealt with and forwarded through the switch.
Protocol VLAN Group Settings
This window is used to begin the Protocol Group VLAN configurations.
To view this window, click L2 Features > VLAN > Protocol VLAN > Protocol VLAN Group Settings, as shown below:

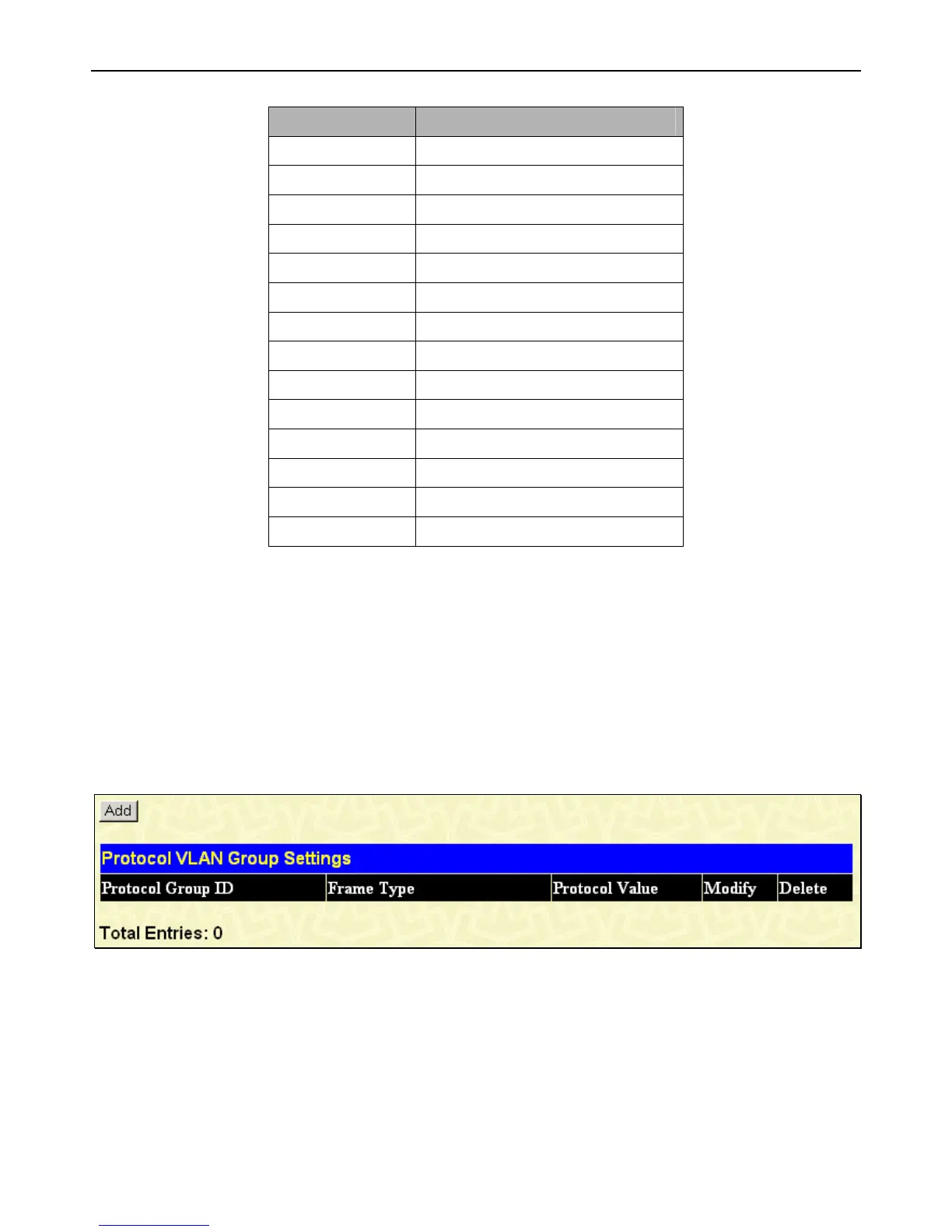

Figure 3 - 17 Protocol VLAN Group Settings window
Click the Add button to reveal the following window for the user to configure:
