xStack
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
251

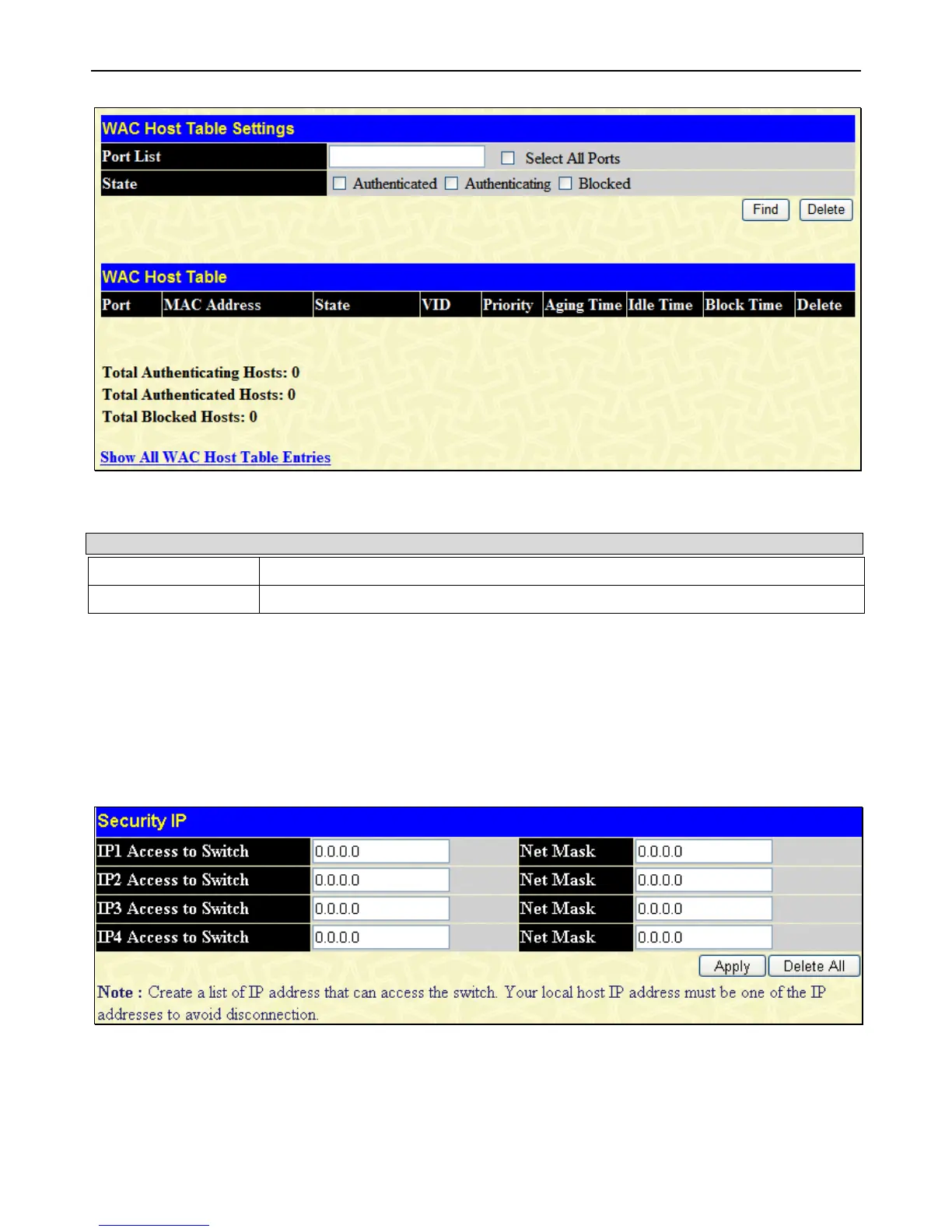

Figure 6 - 33 WAC Host Table Settings window
The following parameters can be configured:
Parameter Description
Port List
Enter the ports you wish to Find or Delete. Check the All Ports box to select all ports.
State
Select the state of the ports. Choose between Authenticated, Authenticating or Blocked.
Click Find to display the Host table entries or click Delete to remove an entry.
Trust Host
Up to four trusted host secure IP addresses may be configured and used for remote Switch management. It should be noted that if
one or more trusted hosts are enabled, the Switch will immediately accept remote instructions from only the specified IP address
or addresses. If you enable this feature, be sure to first enter the IP address of the station you are currently using.
To view this window, click Security > Trust Host, as shown below:
Figure 6 - 34 Security IP window for Trusted Host configuration
To configure secure IP addresses for trusted host management of the Switch, type the IP address of the station you are currently
using in the first field as well as up to three additional IP addresses of trusted hosts. Click the Apply button to assign trusted host
status to the IP addresses. This goes into effect immediately. Click Delete All to remove all configured trusted hosts from this
switch.
