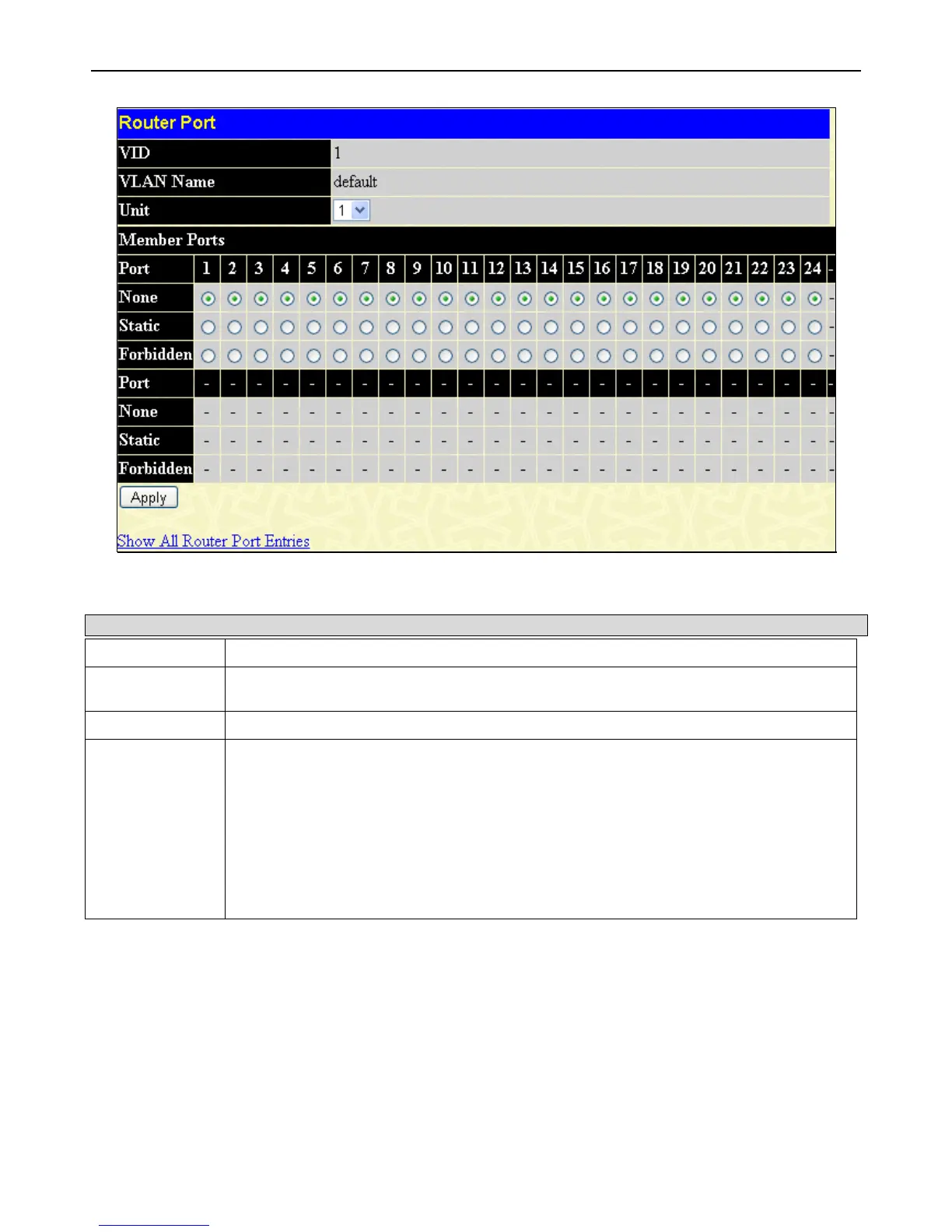

Figure 3 - 28 Router Port window (Modify)
The following parameters can be set:
Parameter Description
Unit
Select the switch in the switch stack to be modified.
VID (VLAN ID)
This is the VLAN ID that, along with the VLAN Name, identifies the VLAN where the multicast
router is attached.
VLAN Name
This is the name of the VLAN where the multicast router is attached.
Member Ports
Ports on the Switch that will have a multicast router attached to them. There are three options
for which to configure these ports:
None – Click this option to not set these ports as router ports
Static – Click this option to designate a range of ports as being connected to a multicast-
enabled router. This command will ensure that all packets with this router as its destination will
reach the multicast-enabled router.
Forbidden – Click this option to designate a port or range of ports as being forbidden from
being connected to multicast enabled routers. This ensures that these configured forbidden
ports will not send out routing packets
Click Apply to implement the new settings.
IGMP Snooping Static Group Settings
This table is used to configure the current IGMP snooping static group information on the Switch.
To view this window, click L2 Features > IGMP Snooping > IGMP Snooping Static Group Settings, as shown below:
