xStack
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
117

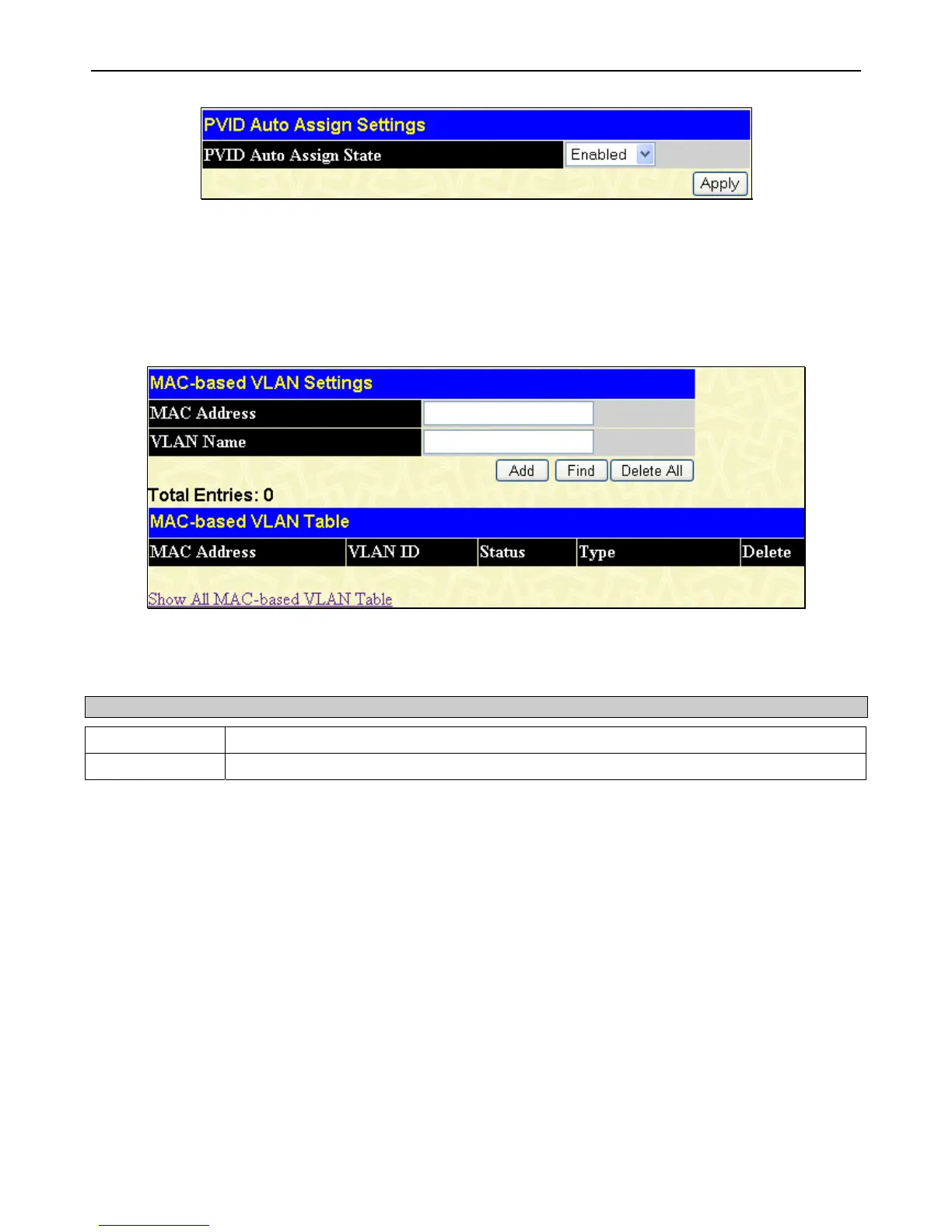

Figure 3 - 15 PVID Auto Assign Settings window
When Enabled, PVID will be automatically assigned when adding a port to a VLAN as an untagged member port.
MAC-based VLAN Settings
This table is used to create new MAC-based VLAN entries and search, edit and delete existing entries.
To view this window click L2 Features > VLAN > MAC-based VLAN Settings, as shown below:
Figure 3 - 16 MAC-based VLAN Settings window
The following fields can be set:
To configure a Double VLAN, enter the following parameters and click Apply.
Parameter Description
MAC Address
Specify the MAC address to be reauthenticated by entering it into the MAC Address field.
VLAN Name
Enter the VLAN name of a previously configured VLAN.
Click Find, Add or Delete All for changes to take affect.
Protocol VLAN
Protocol VLAN groups can be created on the Switch. The purpose of these Protocol VLAN groups is to identify ingress untagged
packets and quickly and accurately send them to their destination. Ingress untagged packets can be identified by a protocol value
in the packet header, which has been stated here by the user. Once identified, these packets can be tagged with the appropriate tags
for VLAN and priority and then relayed to their destination.
The following is a list of protocol values for some common protocols.
