Check the box of the chunk, from 1 to 4, you wish to examine and then enter the hexadecimal
value in the mask field.
Click Apply to implement changes made.
To view the settings for a created profile, click its corresponding
button in the Access Profile Table window, revealing the
following window:

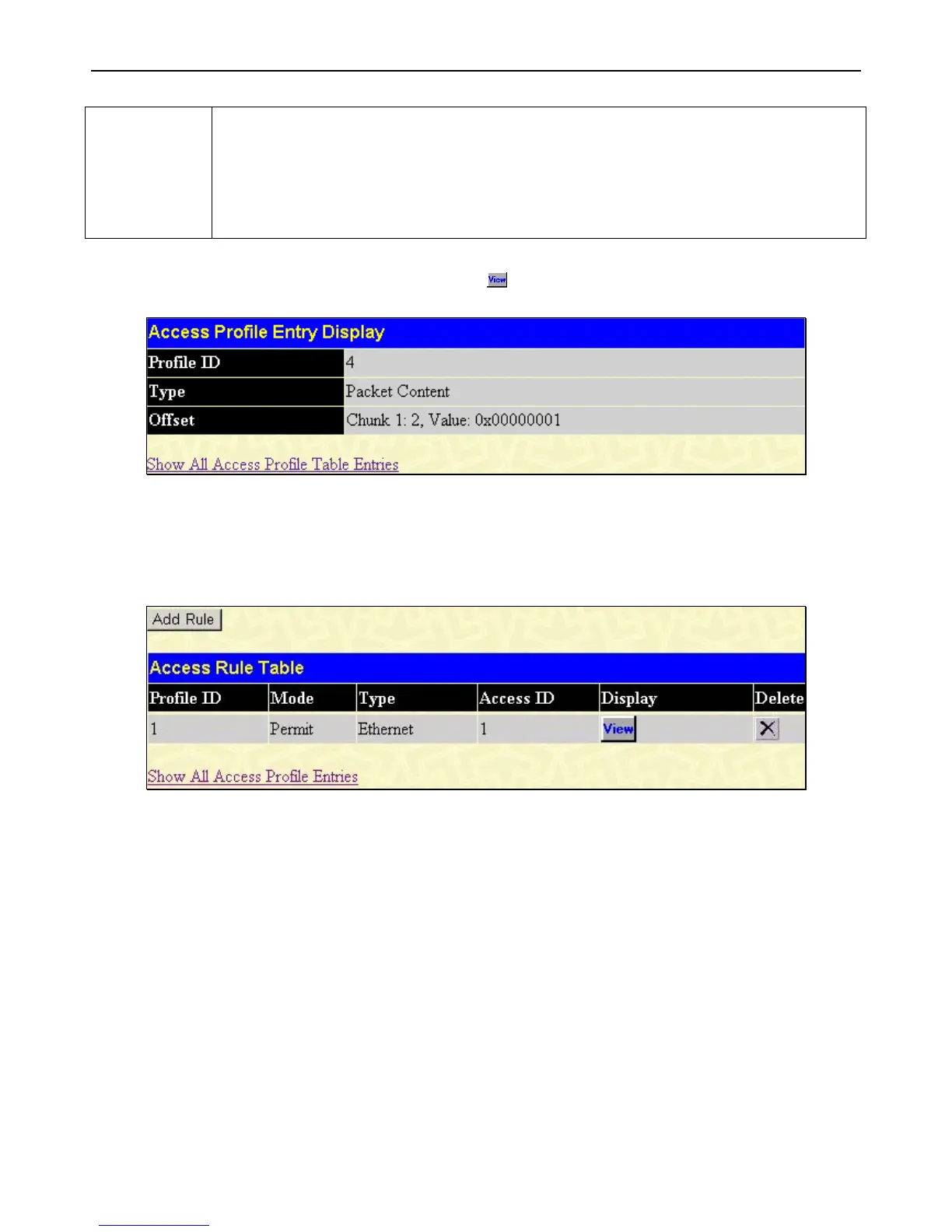

Figure 5 - 10 Access Profile Entry Display window (Packet Content)
To establish the rule for a previously created Access Profile:
To configure the Access Rule for Ethernet, open the Access Profile Table window and click Modify for an Ethernet entry. This
will open the following window:
Figure 5 - 11 Access Rule Table window
To Next Page
