xStack
®
DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
67

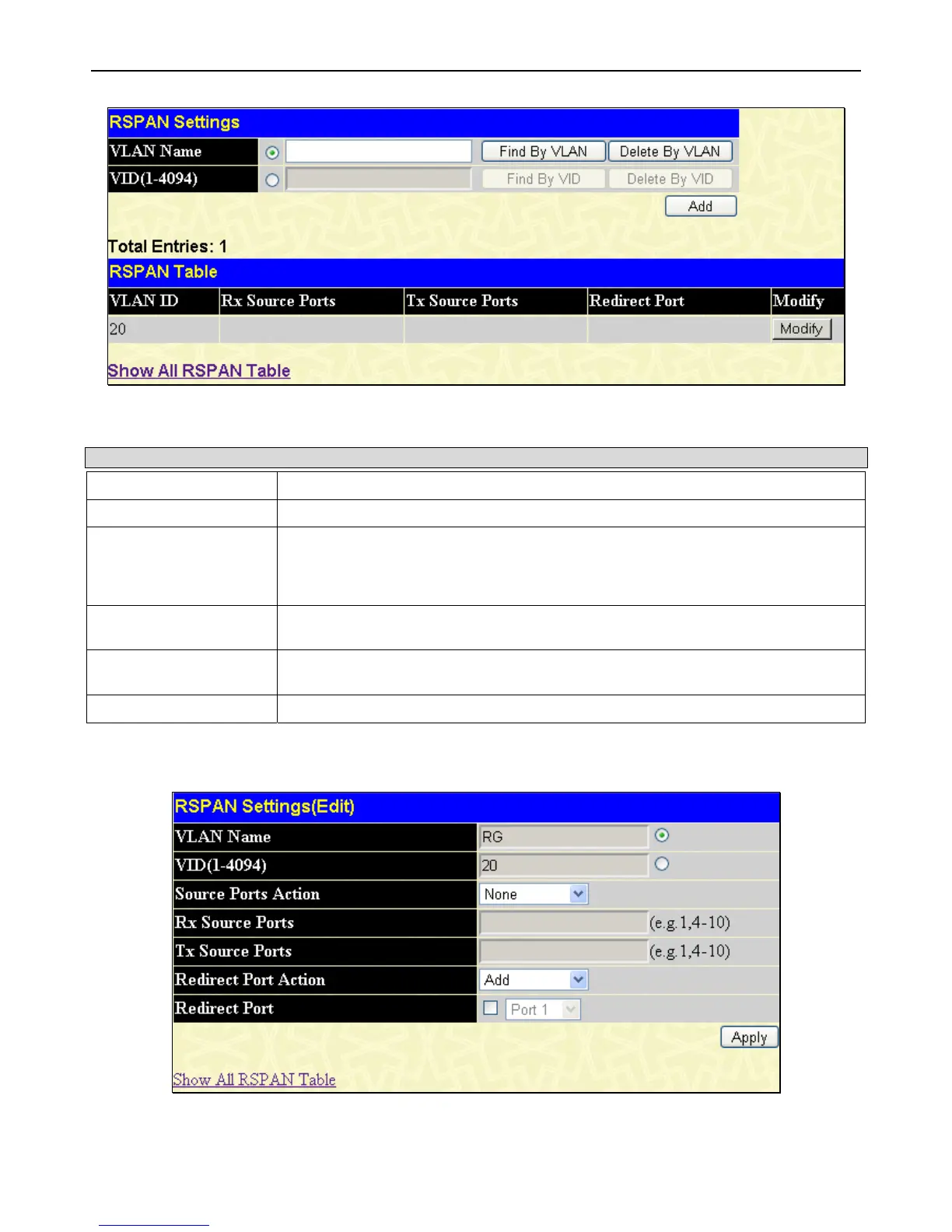

Figure 2 - 71 RSPAN Settings window
The following fields can be configured:
Parameter Description
VLAN Name
Enter the name of the VLAN you wish to Add, Find or Delete.
VID (1-4094)
Enter the VLAN ID of the VLAN you wish to Add Find or Delete.
Rx Source Ports
The goal of Rx source ports is to monitor as much as possible all the packets received
by the source interface or VLAN before any modification or processing is performed by
the switch. A copy of each packet received by the source is sent to the destination port
for that RSPAN session.
Tx Source Ports
The goal of Tx source ports is to monitor as much as possible all the packets sent by the
source interface after all modification and processing is performed by the switch.
Redirect Port
RSPAN redirect function will work when RSPAN is enabled and at least one RSPAN
VLAN has been configured with redirect ports.
Modify
Click on the corresponding Modify button to edit the entries.
To remove an entry, click the corresponding Delete by VLAN icon. To search for an entry enter the appropriate information and
click the Find by VLAN button. To modify an existing entry, click the corresponding Modify button, revealing the following
window to configure:
Figure 2 - 72 RSPAN Settings – Edit window
The following fields can be configured:
