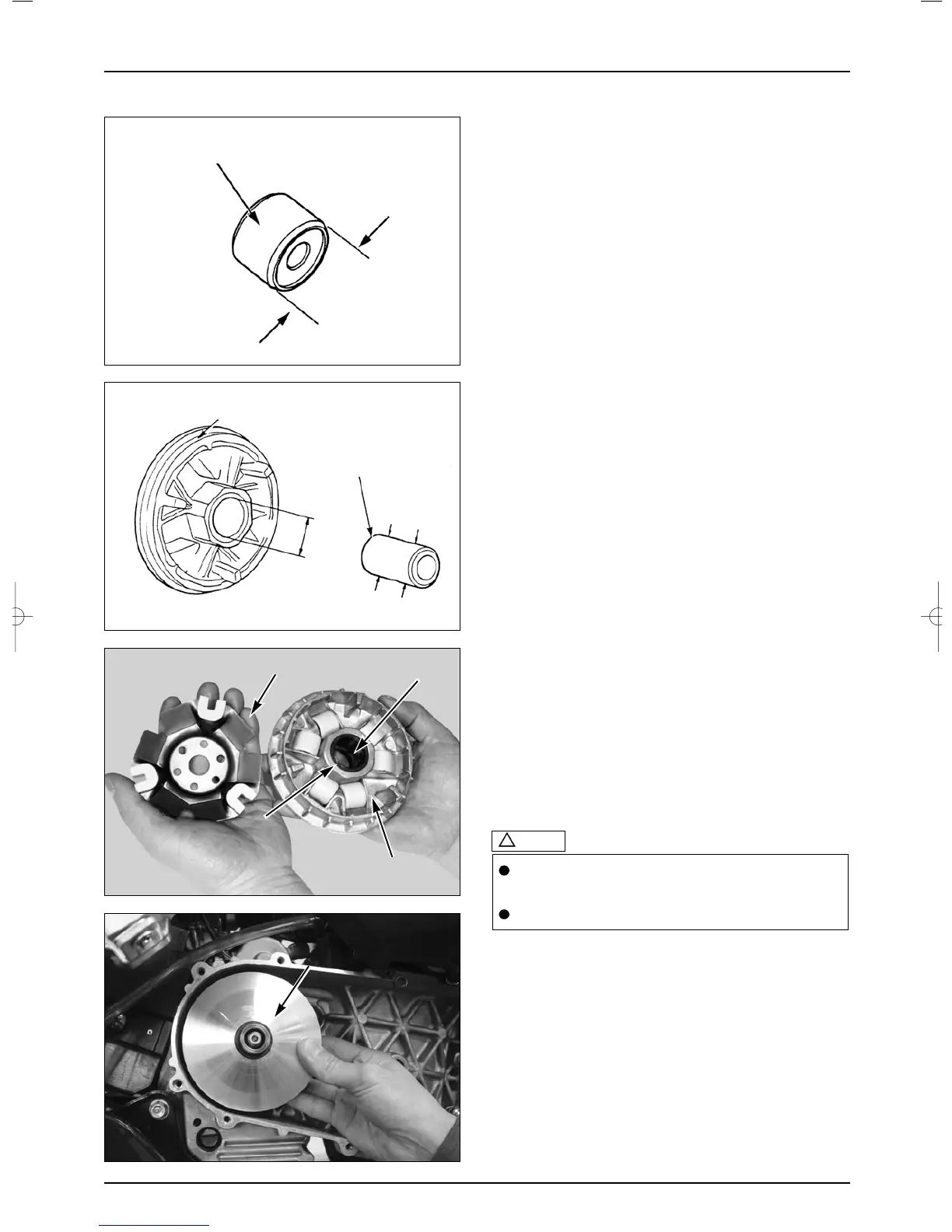

MOVABLE DRIVE FACE INSPECTION

● Check the rollers for wear or damage.

● Measure the O.D. of each roller.

SERVICE LIMIT : 19.5mm

● Measure the abnormal wear.

SERVICE LIMIT : LESS THAN 2.0mm

MOVABLE DRIVE FACE INSTALLATION

● Install the weight roller on the movable drive face.

● Apply the inside of the movable drive face with the

specified amount of grease.

SPECIFIED GREASE : ALVANIA EP2

GREASE APPLICATION : 0.5~1.5 g

● Install the movable drive face boss.

● Install the movable drive face boss and movable drive

face to the LH. crank shaft.

● Check the drive face boss for wear or damage and

replace as necessary.

● Measure the O.D. of the drive face boss. Replace the

boss if the service limit is exceeded.

SERVICE LIMIT : LESS THAN 23.960mm

● Measure the I.D. of the drive face . Replace it if the

service limit is exceeded.

● Movable drive face inner diameter.

SERVICE LIMIT : LESS THAN 24.05mm

8-6

LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

WEIGHT ROLLER

MOVABLE DRIVE FACE

BOSS

RAMP PLATE

GREASE

WEIGHT ROLLER

OIL SEAL

MOVABLE DRIVE FACE

Do not get the grease on the drive face. Remove

any misplaced grease with a degreasing agent.

Use only the specified grease in the specified amount.

NOTE
