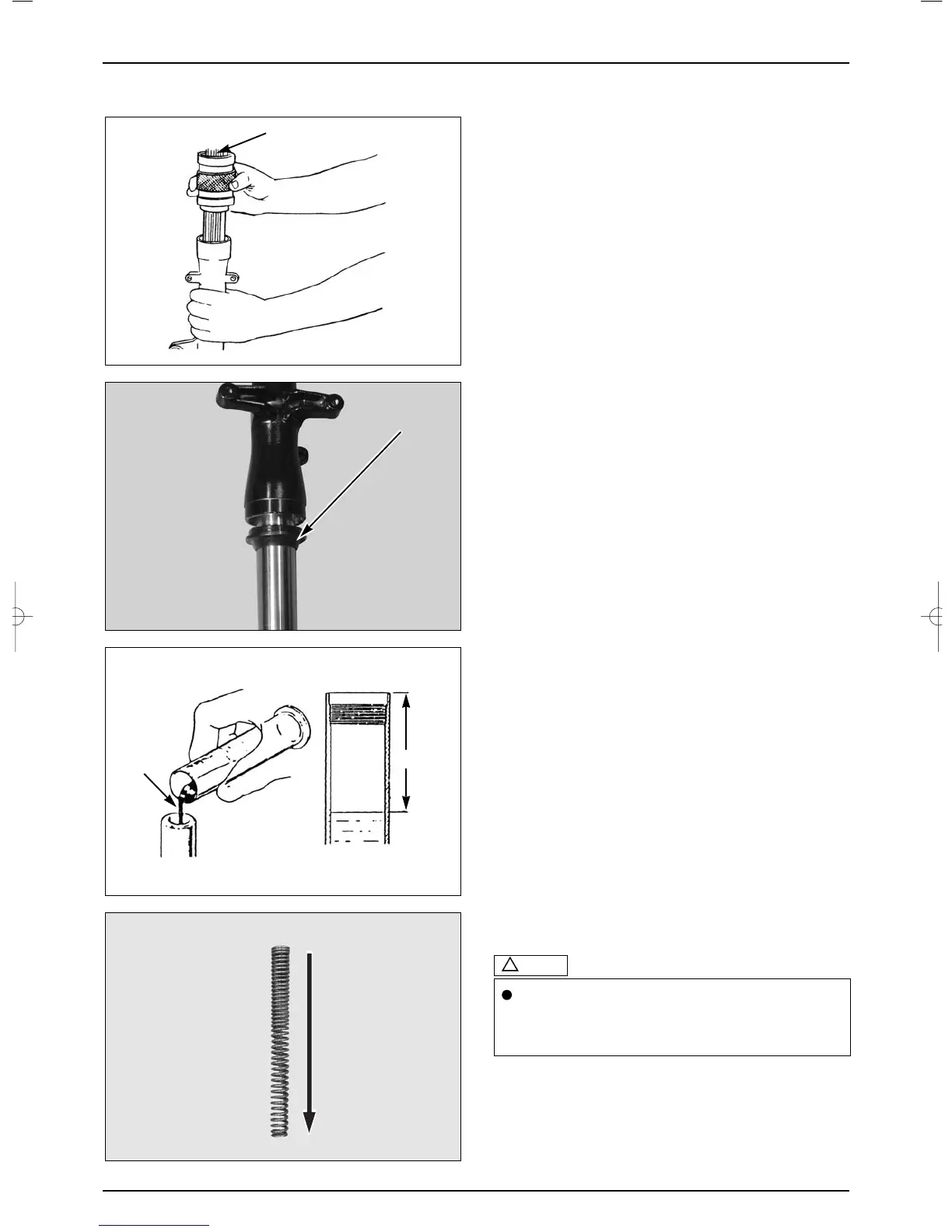

● Install the dust seal.

● Fill a prescribed amount of automatic transmission

fluid(ATF) into the fork tube.

CAPACITY : 90cc

● Slowly press the fork tube 2-3 times to discharge air.

● Assemble the springs to the fork pipe.

13-11

FRONT WHEEL/FRONT FORK/STEERING

● Install the oil seal stopper ring.

● Accurately assemble the oil seal stop ring to the bottom

case.

● Apply ATF to a new oil seal.

● Assemble the oil seal to the bottom case.

● Insert the oil seal with special tools until the attachment

groove of the bottom case set ring is exposed.

TOOLS : FORK SEAL DRIVER

FORK SEAL DRIVER BODY

FORK SEAL DRIVER

FORK OIL

OIL LEVEL

DUST SEAL

Install the spring with the smaller pitch side facing

downward.

NOTE

DAELIM B-BONE Service Manual
