14-3
REAR WHEEL/SUSPENSION/REAR SWING ARM
REAR WHEEL

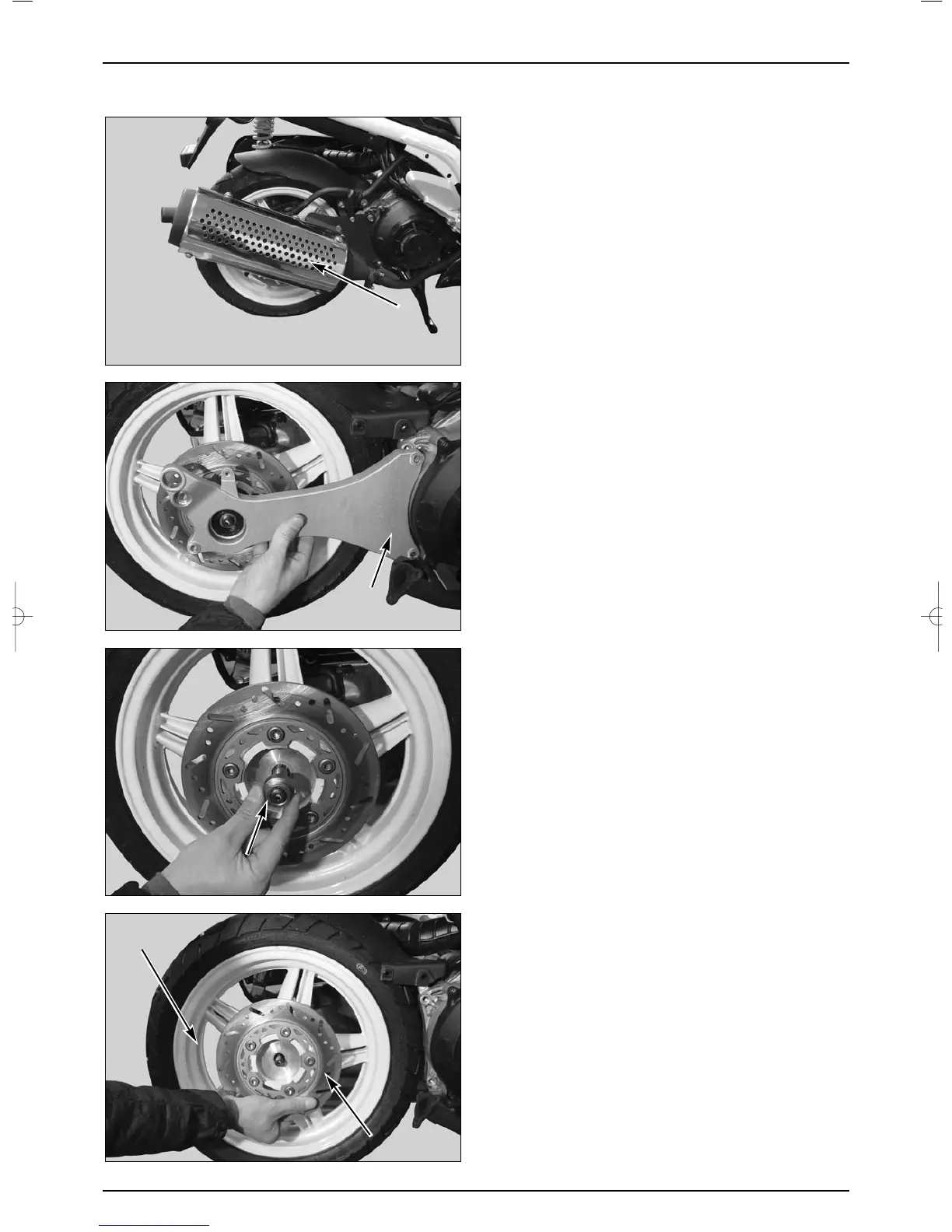

REMOVAL
● Support the motorcycle on the main stand.
● Remove the muffler.
● Remove the rear brake caliper assembly with brake hose
from the rear swing arm.
● Loosen the rear axle nut.
● Remove the rear swing arm.
● Remove the rear wheel inside collar.
● Remove the rear wheel.
