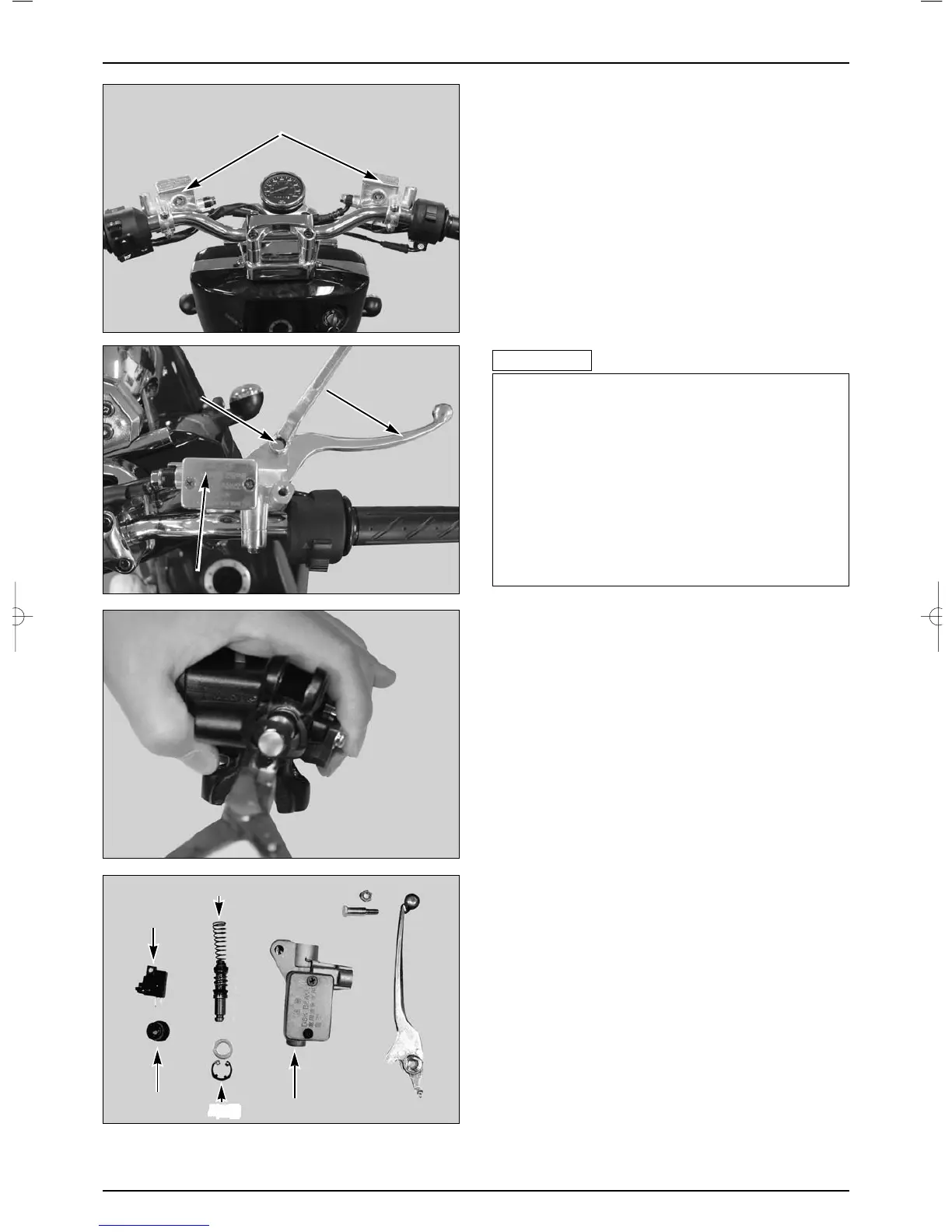

15-11

BRAKE SYSTEM

MASTER CYLINDER SET

LEVER

MASTER CYLINDER BODY

CIR CLIP

BOOT

STOP SW

PIVOT BOLT

BRAKE LEVER

MASTER CYLINDER

REMOVAL

● Drain the front rear brake fluid.

● Remove the front rear stop switch.

● Loosen the brake hose oil bolt.

● Loosen the master cylinder holder bolt.

● Remove the master cylinder.

●Brake fluid causes damage to the painted, plastic or

rubber parts. Do not spill fluid on these parts.

●If contaminated, gently wipe off the fluid with a piece

of cloth or wash in water. Close hose joints properly to

prevent leakage of brake fluid.

●Clean the disassembled parts with brake fluid, and use

compressed air to verify each passage is not clogged.

●Do not allow the disassembled parts to be

contaminated by waste material or dust.

CAUTION

△

DISASSEMBLY

● Remove the front / rear stop switches.

● Remove the piston boot, cir clip from the master

cylinder.

TOOL : SNAP RING PLIERS

● Remove the washer piston spring from the master

cylinder.

● Clean the master cylinder, reserve, master piston with

the recommended brake fluid.
