17-4

IGNITION SYSTEM

IGNITION COIL

SPARK PLUG CAP

FAN SCREW

IGNITION COIL

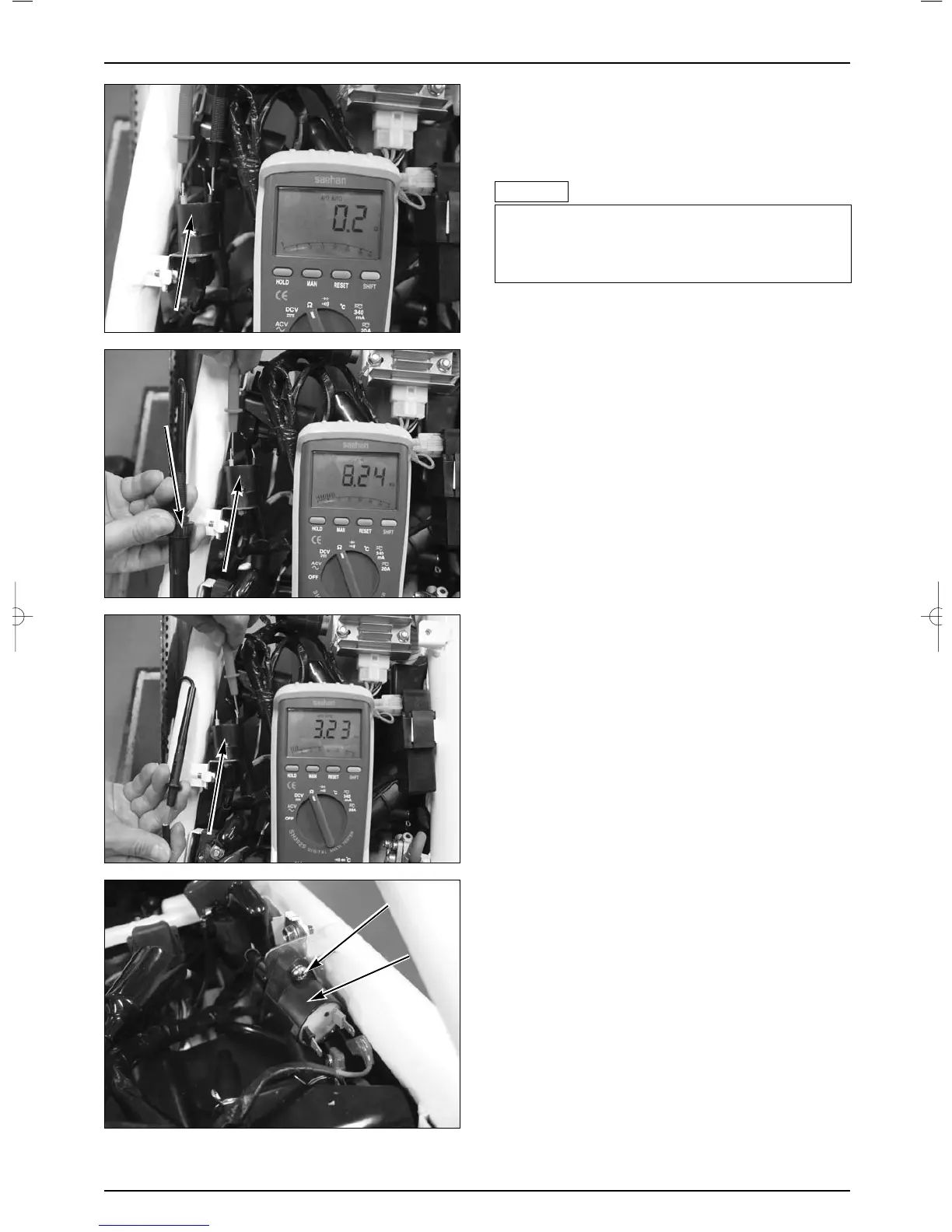

IGNITION COIL INSPECTION

● Remove the rear under cover.

● Remove the primary wire.

● Measure the resistance between the two terminals of

the ignition primary coil.

● If the resistance value is within the specified range the

coil is good.

● If resistance is ∞ (infinite), replace the coil with a new

one.

STANDARD VALUE : 0.1~0.2

● With the spark plug cap on, measure the resistance

between the primary coil terminal and the spark plug

cap.

● If the resistance value is within the specified range,

then the coil is good.

● If the resistance is ∞ (open wire), disconnect the spark

plug cap and measure the secondary coil resistance.

STANDARD VALUE : 7.3~11.0

㏀

● Without the spark plug cap, measure the resistance

between the primary coil terminal and high-tension

code.

● If the resistance value is within the specified range,

then the coil is good.

● If the resistance is ∞ (infinite), replace the coil with

new one.

STANDARD VALUE : 3.6~4.6

㏀

REPLACEMENT

● Remove the high-tension cord from the plug, remove

the plug cap.

● Remove the wire from the ignition coil.

● Remove the primary wire from the ignition coil.

● Loosen the ignition coil fixing bolt securing the frame,

Remove the ignition coil.

● Install in the reverse order of removal.

●Since the resistance value of the primary coil is

inherently very small, it is difficult to distinguish it

from a shorted wire.

NOTE

△
