Indoor Unit (RA Models) SiEN18-622
120 Function
7.2 Fan Speed Control for Indoor Units
Control Mode The airflow rate can be automatically controlled depending on the difference between the set
temperature and the room temperature. This is done through phase control and Hall IC control.
For more information about Hall IC, refer to the troubleshooting for fan motor on page 325.
Phase Steps Phase control and fan speed control contains 9 steps: LLL, LL, SL, L, ML, M, MH, H and HH.
= Within this range the airflow rate is automatically controlled when the FAN setting
button is set to automatic.
Note: 1. Fan stops during defrost operation.
2. In time of thermostat OFF, the fan rotates at the following speed.
Cooling : The fan keeps rotating at the set tap.
Heating : The fan stops.
Automatic Air
Flow Control for
Heating
On heating mode, the indoor fan speed will be regulated according to the indoor heat exchanger
temperature and the difference between the room temperature and the required set point.
Automatic Air
Flow Control for
Cooling

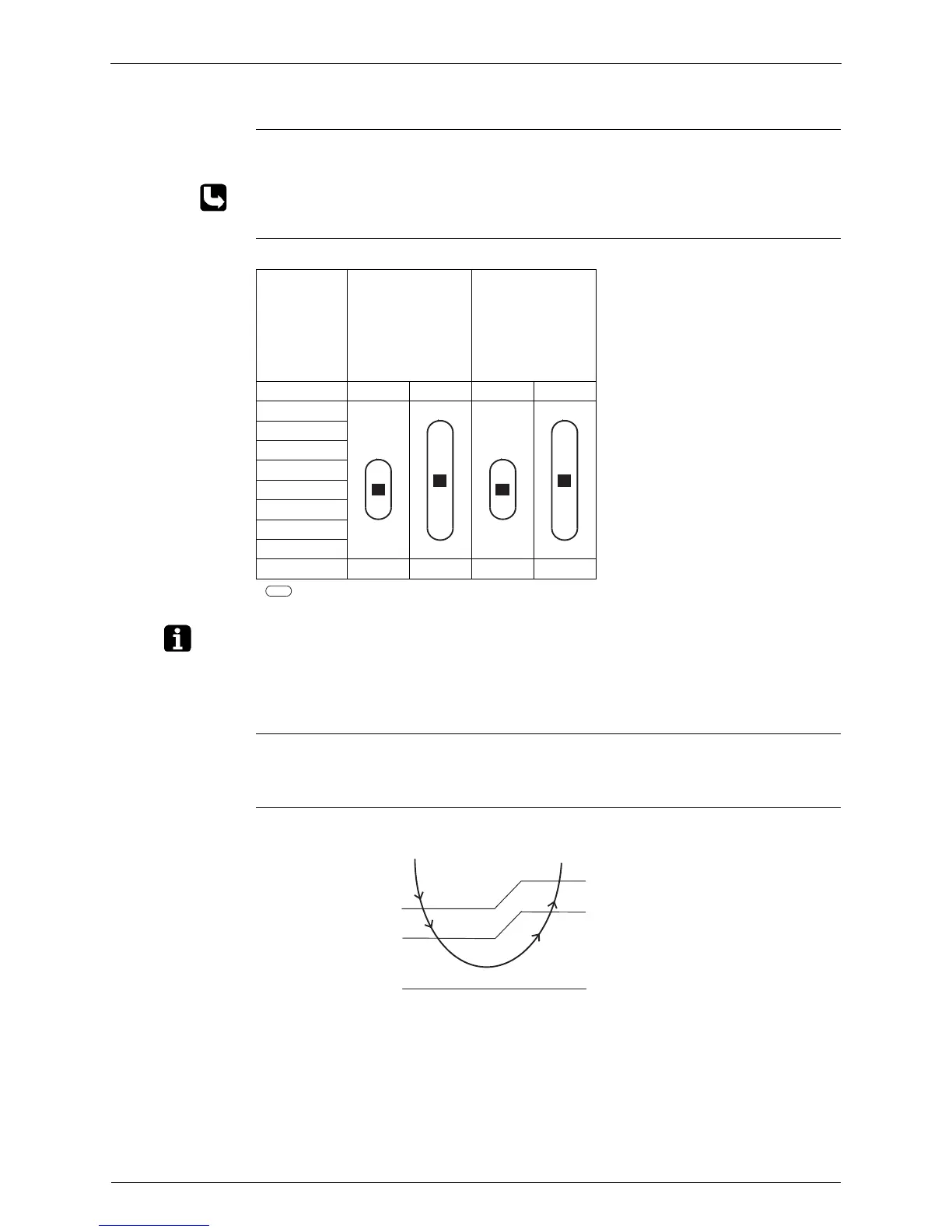

The following drawing explains the principle of fan speed control for cooling:
FTK(X)S50-71F
FTK(X)S50-71B
FTXS50-71D
FTK(X)S20-35D
FTK(X)S25-35E
FDK(X)S25-60C
CDK(X)S25-60C
CDK(X)S25-35EA
FDKS25-35EA
FVXS35-50B
FLXS25-60B
Step Cooling Heating Cooling Heating
LLL
LL
SL
L
ML
M
MH
H
HH (Powerful) H+90 H+90 H+50 H+50
(R6037)
(R6036)
(R6037)
(R6036)
+1.5°C
