Daikin Super Multi Plus E-Series - Indoor Units

Wiring Diagrams SiEN18-622
426 Appendix

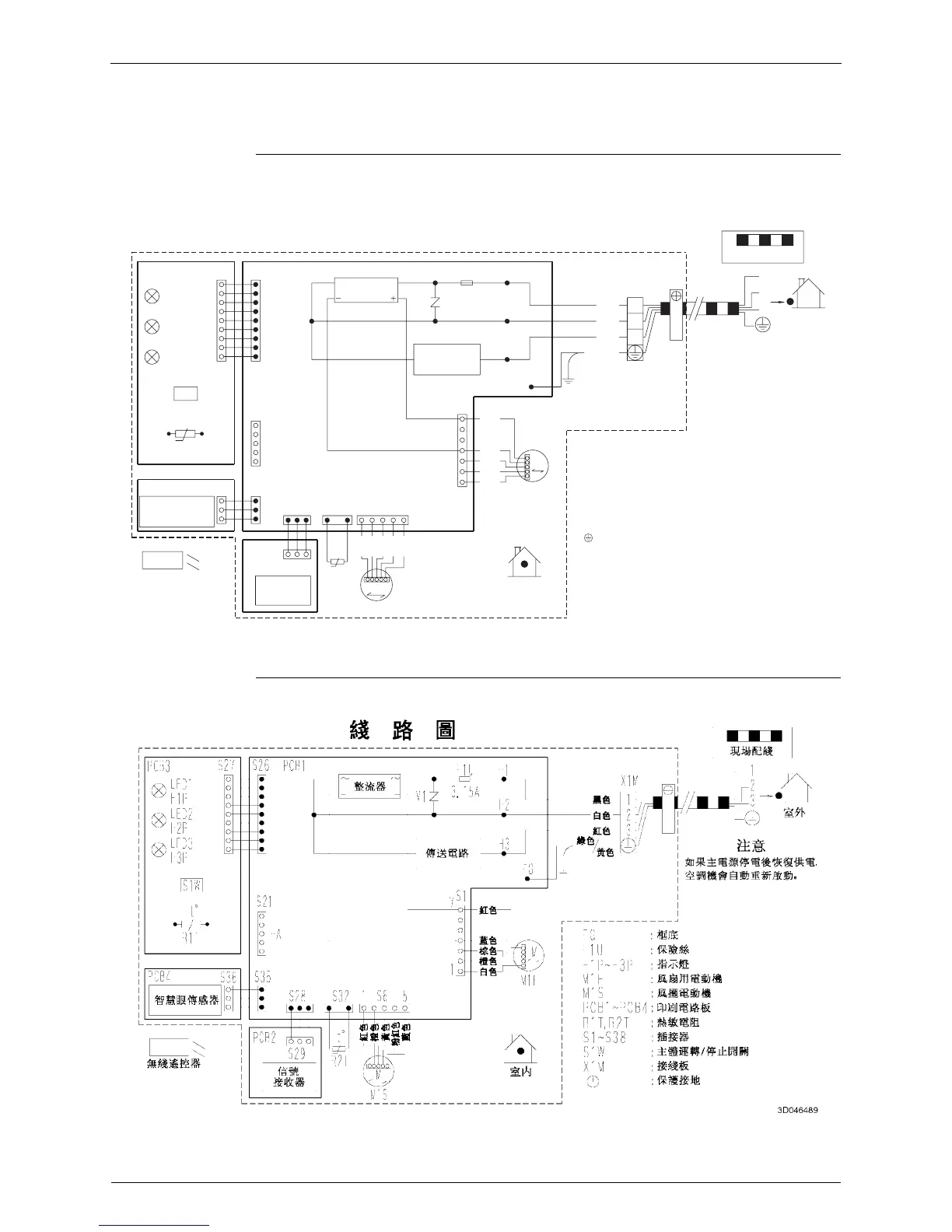

2.3 Indoor Units
2.3.1 Wall Mounted Type
FTKS20/25/35DVMA, FTKS25/35DVM, FTKS25/35EVMA
FTXS20/25/35DVMA, FTXS25/35EVMA
FTXS20/25/35DVMT
PCB3
PCB4
LED3
LED2
H2P
H3P
LED1
H1P
S1W
R1T
t°
S27
S36
S26
PCB2
S35
S21
HA
PCB1
S29
S28
R2T
S32
t°
~
1
M1S
M
S6
~
5
V1
7
1
3.15A
S1
F1U
H2
H3
H1
INDOOR
M1F
FG
M
X1M
3
2
1
FIELD WIRING.
3
2
1
OUTDOOR
RED
ORG
YLW
PNK
BLU
WHT
BRN
RED
BLU
ORG
GRN
WHT
RED
/
BLK
YLW
CAUTION
NOTE THAT OPERATION WILL
RESTART AUTOMATICALLY IF
THE MAIN POWER SUPPLY IS
TURNED OFF AND THEN BACK
ON AGAIN.
INFRARED
REMOTE
CONTROL
INTELLIGENT EYE
SENSOR
RECTIFIER
TRANSMISSION
CIRCUIT
SIGNAL
RECEIVER
FG : FRAME GROUND
F1U : FUSE
H1P~H3P : PILOT LAMP
M1F : FAN MOTOR
M1S : SWING MOTOR
PCB1~PCB4 : PRINTED CIRCUIT BOARD
R1T, R2T : THERMISTOR.
S1~S38 : CONNECTOR
S1W : OPERATION SWITCH
X1M : TERMINAL STRIP
: PROTECTIVE EARTH
3D046453B
