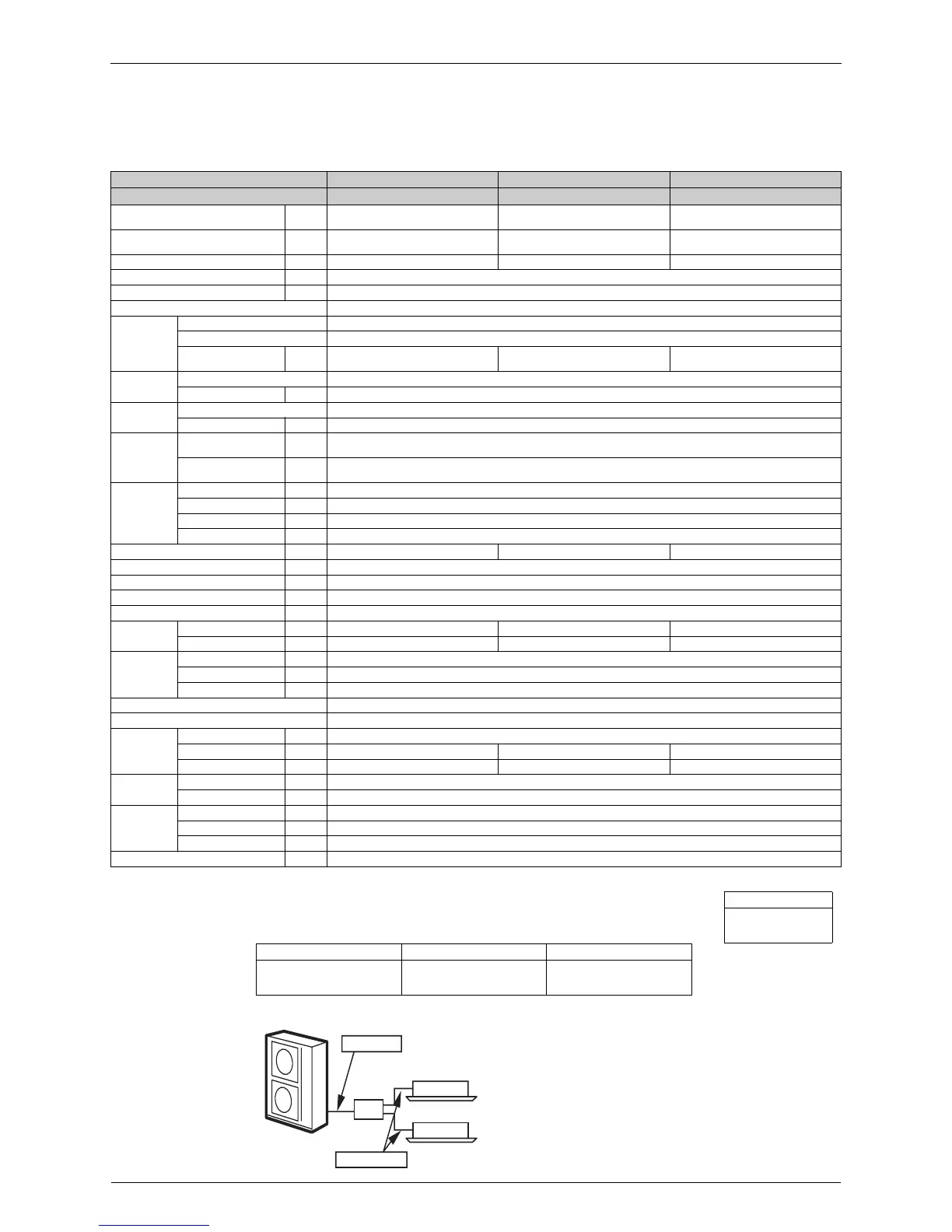

Daikin Super Multi Plus E-Series - Heat Pump

Specifications SiEN18-622
34 Specifications
1.2 Heat Pump
1.2.1 Outdoor Units
50Hz 220-230-240V
Note:
1. H Refrigerant charge is required. (Chargeless piping length 0m)
Formula for calculation charge : R (kg)
R = Total length (m) of liquid pipe size at φ9.5×0.054 + Total length (m) of liquid piping size at φ6.4×0.022
2. The data are based on the conditions shown in the table below.
Model RMXS112EV1A RMXS140EV1A RMXS160EV1A
4HP 5HP 6HP
Cooling Capacity
kW
(kcal/h)
11.2 (9,630) 14.0 (12,040) 15.5 (13,330)
Heating Capacity
kW
(kcal/h)
12.5 (10,750) 16.0 (13,760) 17.5 (15,050)
Total Indoor Unit Capacity kW 5.5~14.5 7.0~18.2 8.0~20.8
Power Consumption W —
Running Current A —
Casing Color Ivory White
Compressor
Type Hermetically Sealed Scroll Type
Model JT100G-VDL
Motor Output
(2.2kW/60rps)
kW 2.5 3.0 3.5
Refrigerant
Oil
Model DAPHNE FVC68D
Charge L 1.5
Refrigerant
Type R-410A
Charge kg 4.0
Air Flow Rate
(H)
Cooling
m³/min
(cfm)
106 (3,742)
Heating
m³/min
(cfm)
106 (3,742)
Fan
Type Propeller
Motor Output W 70+70
Running Current A 0.4+0.4
Power Consumption W 88+88
Starting Current A 20.0-19.2-18.4 24.8-23.7-22.7 26.4-25.2-24.2
Dimensions (H×W×D) mm 1,345×900×320
Package Dimensions (H×W×D) mm 1,475×925×390
Weight kg 125
Gross Weight kg 136
Operation
Sound
Cooling dBA 52 53 54
Heating dBA 54 55 56
Piping
Connection
Liquid mm φ9.5 (Flare Connection)
Gas mm φ19.1 (Brazing Connection)
Drain mm φ18
Heat Insulation Both Liquid and Gas Pipes
No. of Wiring Connection 3 For Power Supply (Including Earth Wiring), 2 For Interunit Wiring (Outdoor Unit-BP)
Total piping
length
O.U. - BP m 55
BP - I.U. m 60 80 90
System Total m 115 135 145
Max. piping
length
BP - I.U. m 15
1st Branch - I.U. m 40
Max. level
difference
O.U. - BP m 30
O.U. - I.U. m 30
BP - BP, I.U. - I.U. m 15
Necessity of Additional Charge H kg/m Necessary
Cooling Heating Piping Length
Indoor ; 27°CDB / 19°CWB
Outdoor ; 35°CDB
Indoor ; 20°CDB
Outdoor ; 7°CDB / 6°CWB
Main Piping : 5m
Branch Piping : 3m
Level difference:0m
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
BP Unit
Outdoor Unit
Main Piping
Branch Piping
Indoor Unit
(Q0143)
