Troubleshooting for Outdoor Unit SiEN18-622
378 Troubleshooting
7.17 Malfunction of PCB
Remote Control
Display
L1
Applicable
Models
AII outdoor unit models
Method of
Malfunction
Detection
Detect malfunctions by current value during waveform output before compressor startup.
Detect malfunctions by current sensor value during synchronized operation at the time of
startup.
Detect malfunctions using an SP-PAM series capacitor overvoltage sensor.
Malfunction
Decision
Conditions
In case of overcurrent (OCP) during waveform output
When the current sensor malfunctions during synchronized operation
When overvoltage occurs in SP-PAM
In case of IGBT malfunction
Supposed
Causes
Faulty outdoor PCB (A1P)
• IPM failure
• Current sensor failure
• SP-PAM failure
• Failure of IGBT or drive circuit

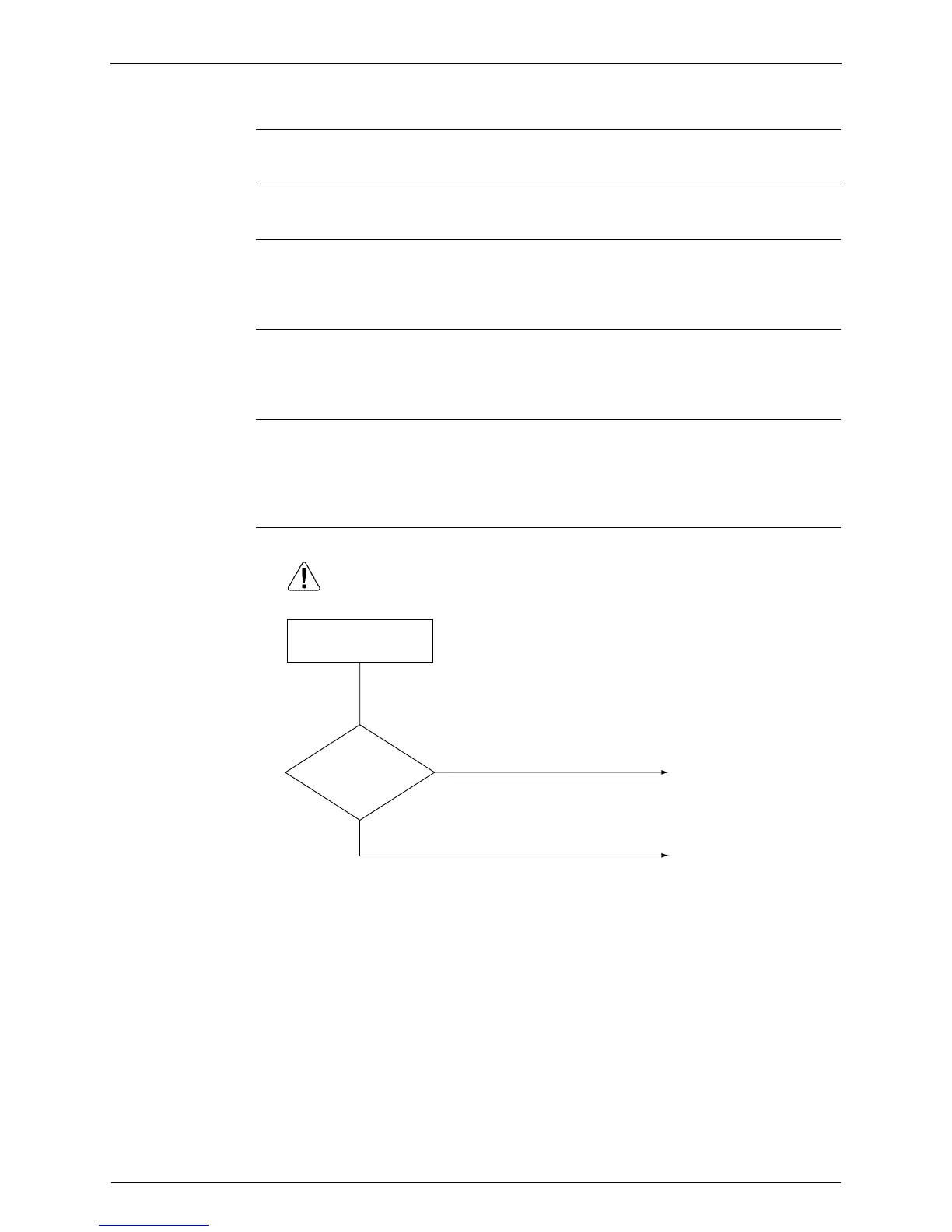

Troubleshooting
YES
NO
Turn OFF the power
supply once and then turn
it ON again.
Does
it return normally?
It is believed that
external factors (noise,
etc.) other than failure
caused the malfunction.
Replace the outdoor PC
board (A1P).
PC board equipped with
a resin case
( )
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
