Daikin Super Multi Plus E-Series - Cleaning the Air Filter

SiEN18-622 Instruction
System Configuration 243
CDK(X)S 25/35/50/60 C, FDK(X)S 25/35 C, CDXS 25/35/50/60 D
CAUTION
• Only a qualified service person is allowed to perform maintenance.
• Before cleaning, be sure to stop the operation and turn the breaker OFF.

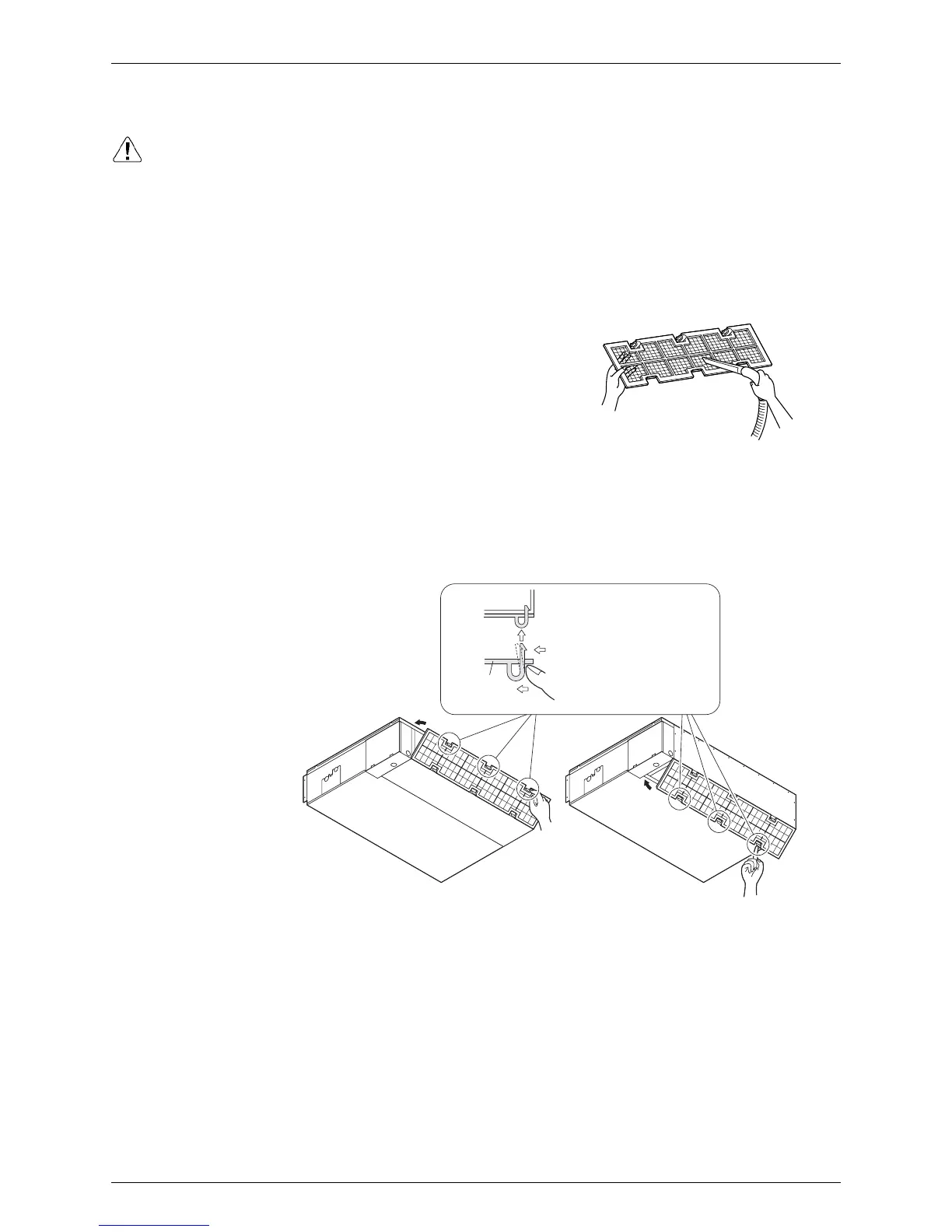

 Cleaning the air filter
1. Removing the air filter.
•Rear suction
Pull the bottom side of the air filter backwards, over the 3 bends.
• Bottom suction
Pull the filter over the 3 bends situated at the backside of the unit.
2. Cleaning the air filter.
• Remove dust from the air filter using a
vacuum cleaner and gently rinse them in
cool water. Do not use detergent or hot
water to avoid filter shrinking or
deformation. After cleaning dry them in the
shade.
3. Replacing the air filter.
•Rear suction
Hook the filter behind the flap situated at the top of the unit and push the other side gently over
the 3 bends.
• Bottom suction
Hook the filter behind the flap situated at the middle of the unit and push the other side gently
over the 3 bends.
•
In case of bottom side
Main unit
Filter
Attach the filter to the
main unit while
pushing down on the
bends.
Force
Force
In case of back side
