Troubleshooting for RA Indoor Unit SiEN18-622
332 Troubleshooting
4.6.4 Hall IC Check
Check No.16 1. Check the connector connection.
2. With the power ON, operation OFF, and the connector connected, check the following.
∗Output voltage of about 5 V between pins 1 and 3.
∗Generation of 3 pulses between pins 2 and 3 when the fan motor is operating.
Failure of (1) Æ faulty PCB Æ Replace the PCB.
Failure of (2) Æ faulty hall IC Æ Replace the fan motor.
Both (1) and (2) result Æ Replace the PCB.

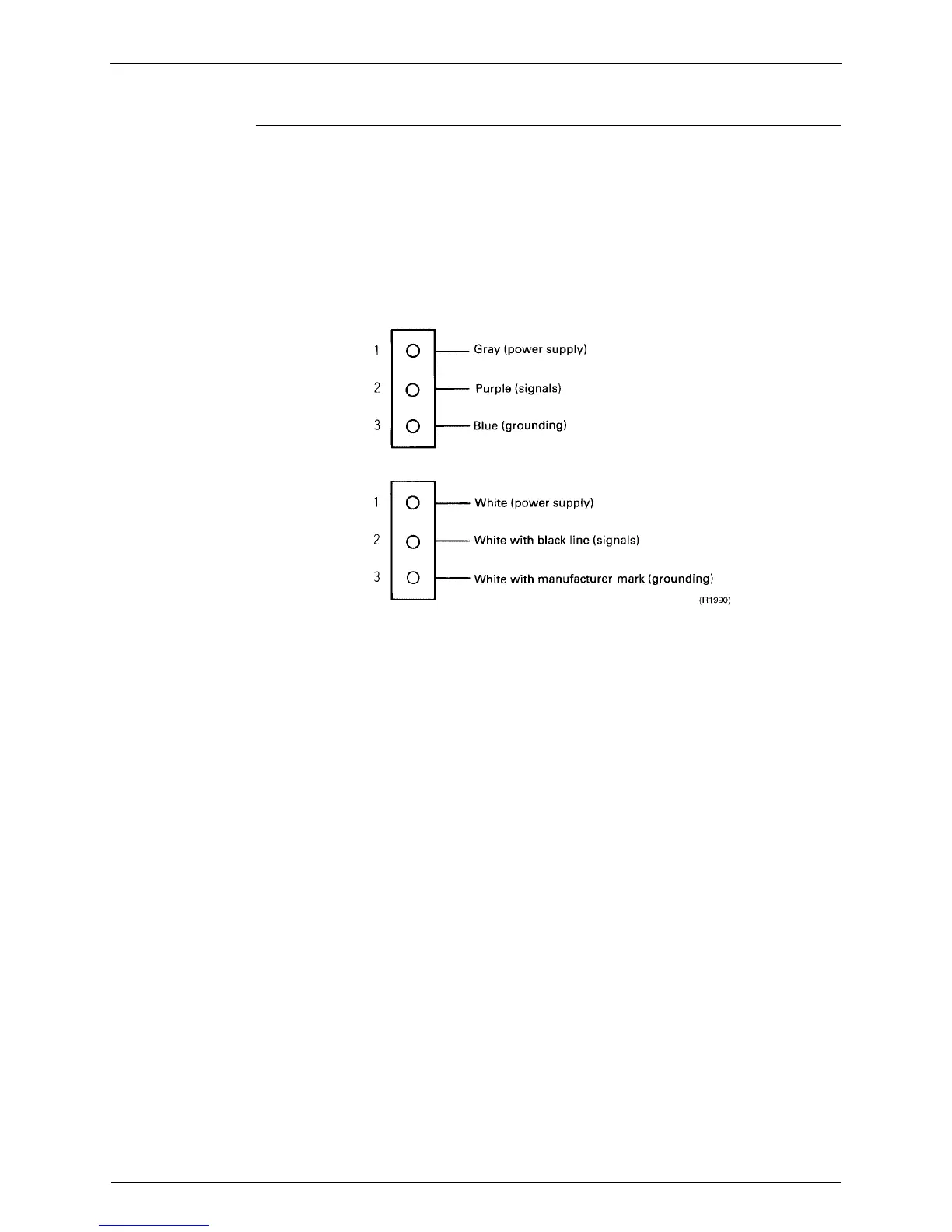

The connector has 3 pins, and there are two patterns of lead wire colors.
