Daikin Super Multi Plus E-Series - Functional Parts Layout; Outdoor Units

SiEN18-622 Functional Parts Layout
Refrigerant Circuit 87
2. Functional Parts Layout
2.1 Outdoor Units

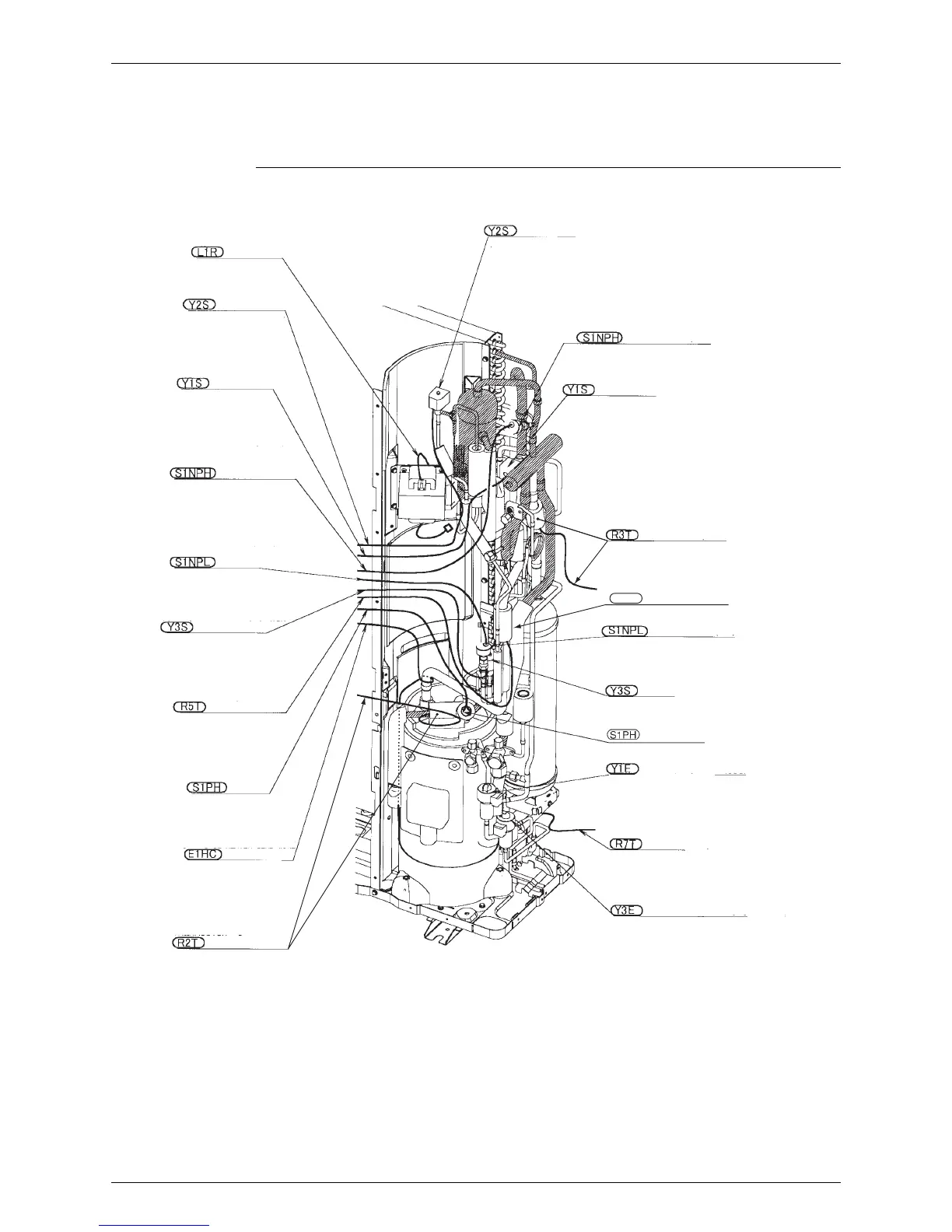

Birds-eye view
R5T
(Q0524)
Reactor lead wire
Solenoid valve lead wire
4 way valve lead wire
Pressure sensor (high)
lead wire
Pressure switch
lead wire
Crankcase heater lead wire
Thermistor (discharge)
Pressure sensor (low)
lead wire
Solenoid valve lead wire
Thermistor (suction 2)
(High voltage)
(Connector color: black)
(High voltage)
Solenoid valve
Pressure sensor (high)
4 way valve
Thermistor (suction 1)
Thermistor (suction 2)
Pressure sensor (low)
Solenoid valve
Pressure switch
Electronic expansion valve
Electronic espansion valve
Thermistor (liquid pipe)
(Connector color: black)
(Connector color: red)
(Connector color: blue)
(High voltage)
(Connector color: blue)
(High voltage)
(Connector color: pink)
(High voltage)
(Connector color: white)
(Marking color: blue)
(Connector color: blue)
(Marking color: red)
(Marking color: green)
(Connector color: pink)
(High voltage)
(Connector color: gray)
(High voltage)
(Connector color: red)
(Low voltage)
(Connector color: blue)
(Connector color: white)
(Marking color: green)
