Daikin Super Multi Plus E-Series - Pressure Sensor

SiEN18-622 Pressure Sensor
Troubleshooting 409
10.Pressure Sensor
High Pressure (P H )
Low Pressure (P
L )

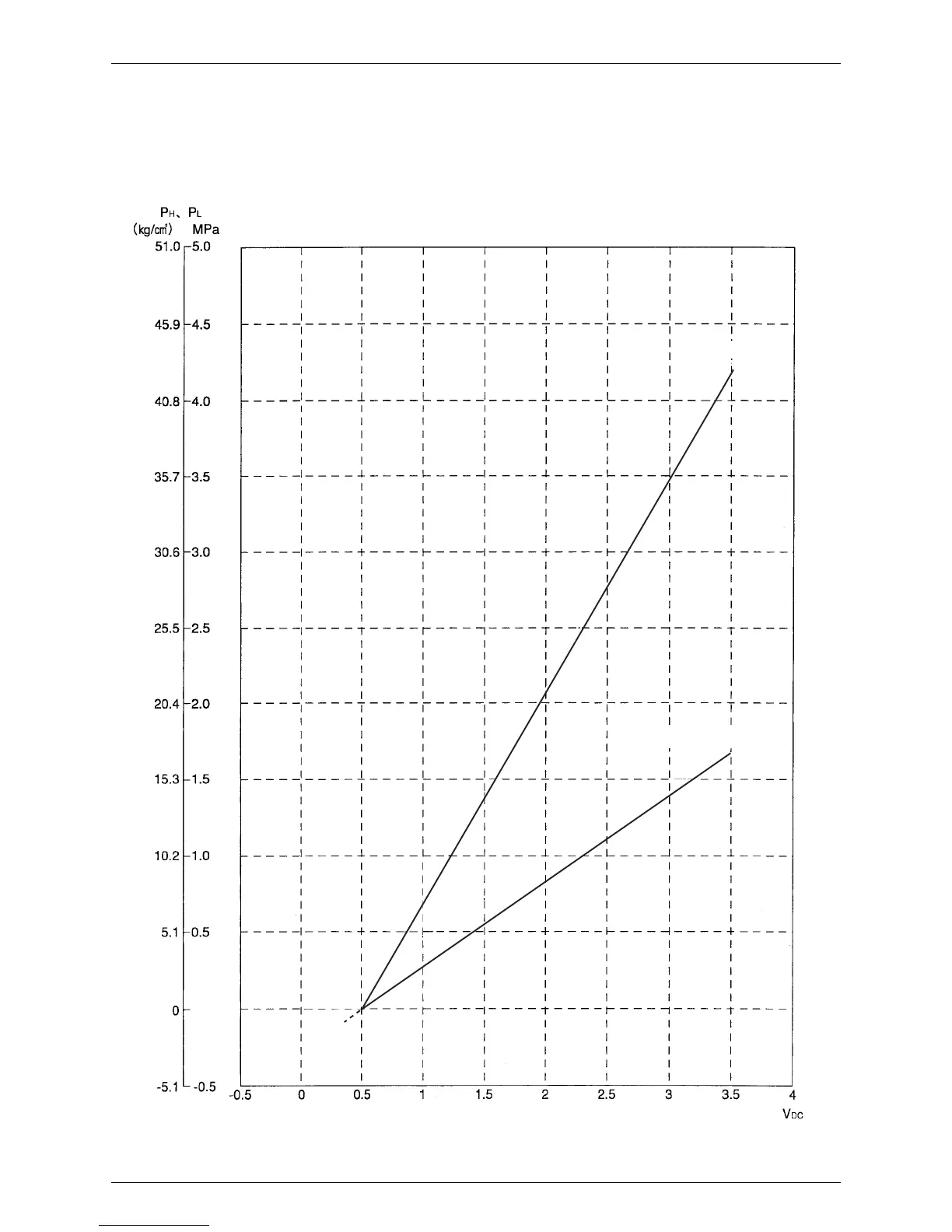

Output Voltage (V H, V L)
Detected Pressure
(V3053)
P H = 1.38V-0.69
P
L = 0.57V-0.28
P
H : High pressure (MPa)
V
L : Low pressure (MPa)
V : Voltage (V)
P
H : Detected Pressure [High Side] MPa
P
L : Detected Pressure [Low Side] MPa
V
H : Output Voltage [High Side] V DC
V L : Output Voltage [Low Side] V DC
