b. IftheDC-DCistheopen-framestyle,onlyJ1willneedtobeinstalled.RefertoFigure4-130DC-DC
Connectors(OpenFrame)onpage134.
4. Installthe-DCand+DCspadeterminalsontotheDCbusbar.
a. ForRevisionFandearliercompressorsrefertoFigure4-137ACInputandSpadeConnector
Installation-TTS/TGS/TTH/TGHRev.FandEarlier(ExceptTTS300/TGS230).
b. ForRevHcompressors,refertoFigure4-138ACInputandSpadeConnectorInstallation-
TTS/TGS/TTH/TGHRev.H(ExceptTTS300/TGS230).
5. InstalltheL1,L2,andL3terminalstotheACBusBars.
a. ForRevisionFandearliercompressors,refertoFigure4-137ACInputandSpadeConnector
Installation-TTS/TGS/TTH/TGHRev.FandEarlier(ExceptTTS300/TGS230).
b. ForRevHcompressors,refertoFigure4-138ACInputandSpadeConnectorInstallation-
TTS/TGS/TTH/TGHRev.H(ExceptTTS300/TGS230).


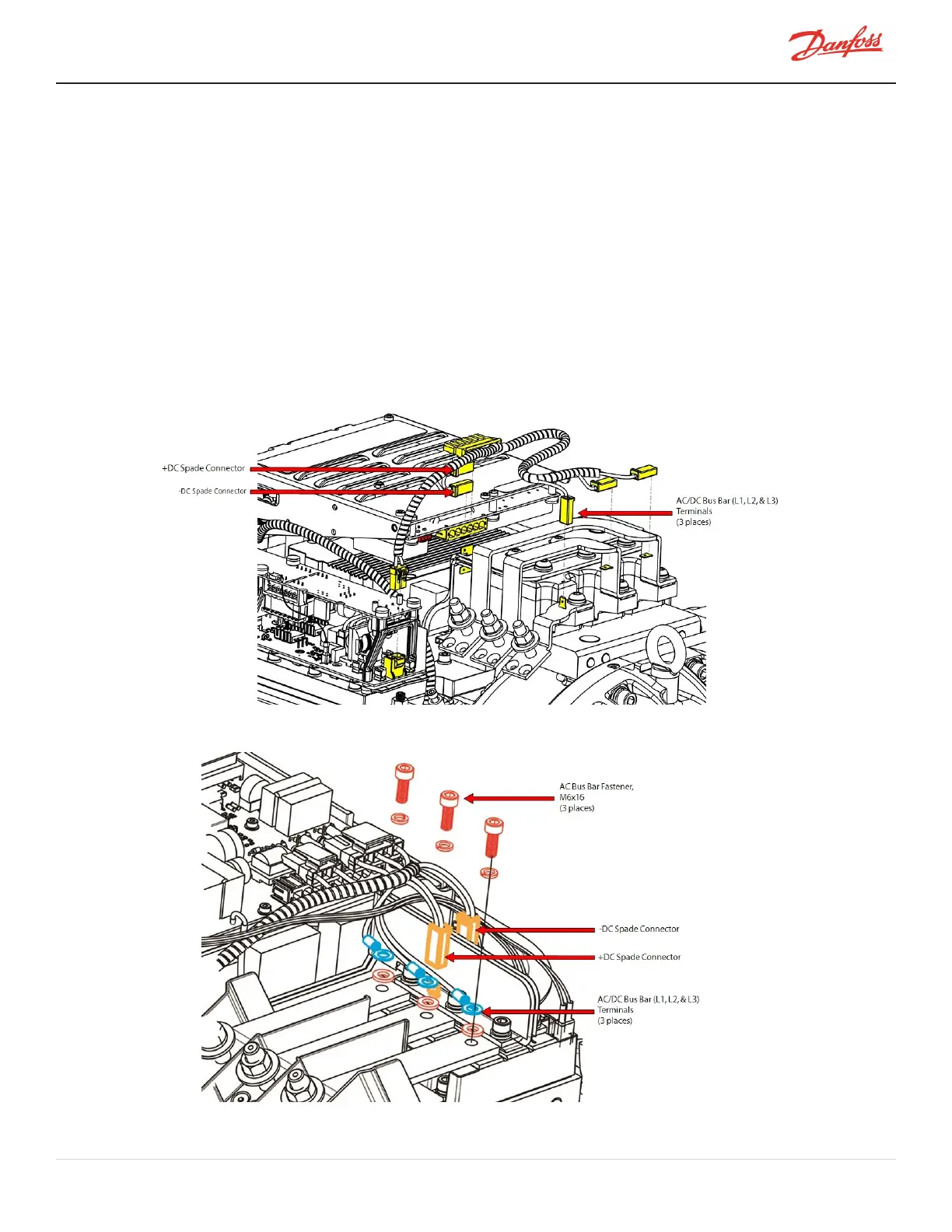

Figure 4-137 AC Input and Spade Connector Installation - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)
Figure 4-138 AC Input and Spade Connector Installation - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)
