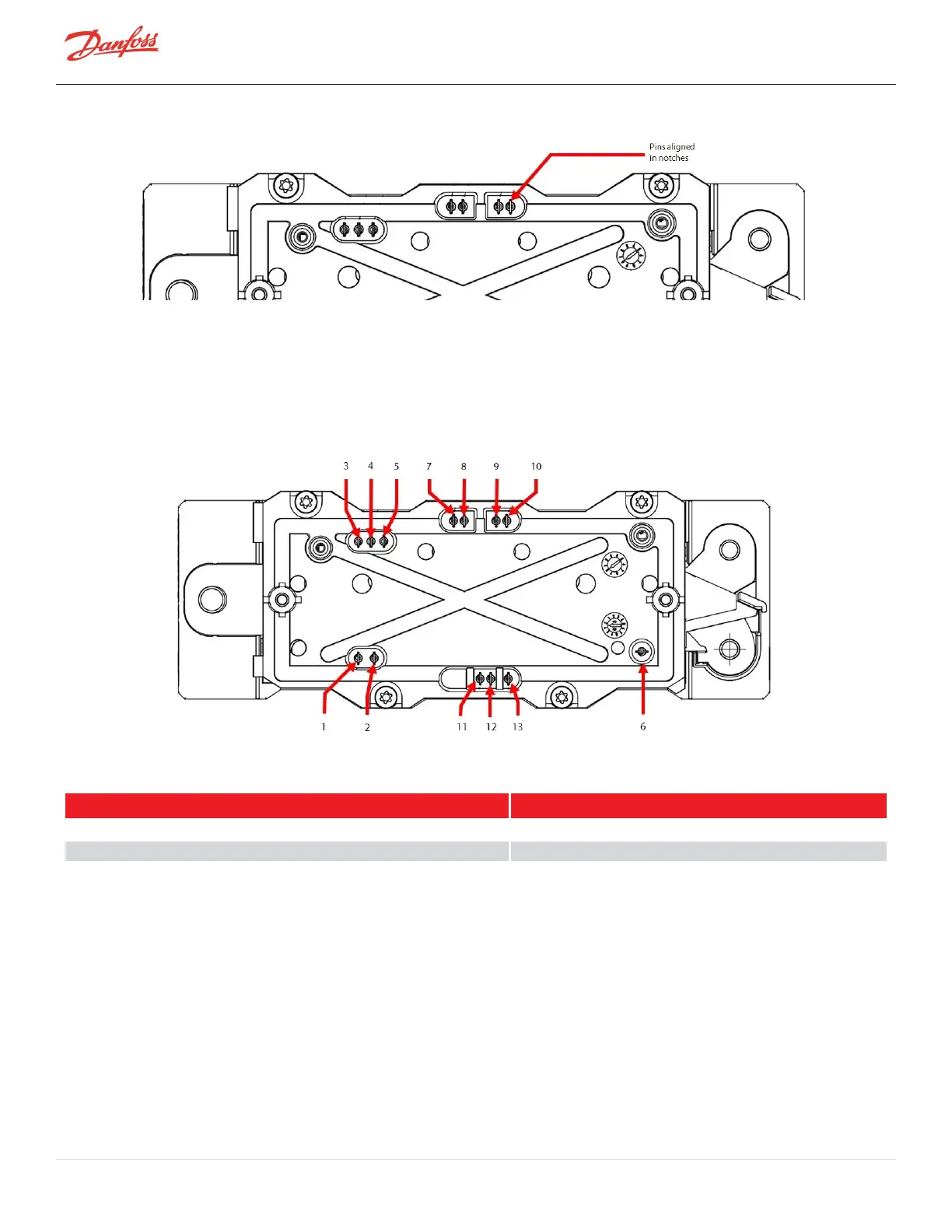

Figure 4-212 Seated Spring Pins

2. Therearetwo(2)differentlengthspringpins,ifanyarereplaced,besuretoreplacewiththesame
lengthspringpin.RefertoFigure4-213SpringLocationsandTable4-35SpringIdentificationforthe
locationsofthelongandshortspringpins.Foranexampleofthedifferencebetweenthetwo(2)
differentspringpinlengths,refertoFigure4-214SpringPinIdentificationonpage191.
Figure 4-213 Spring Locations
Table 4-35 Spring Identification
Spring Numbers Length
Springs1-6 Short
Springs7-13 Long

Page 190 of 294 - M-SV-001-EN Rev. H 1/23/2023
