Table 131: Input/Output Parameters
Input/output parameters
Value
Digital Input 1
Used for a proximity sensor.
X3-1 (STO 1)
X3-2 (STO 2)
STO
option board
OPTAF
STO
X3-3 (GND)
X3-4 (GND)
SD2+
SD1+
SD2-
SD1-
Proximity
sensor
A+/A-
X4-11 (DIN1A)
X4-12 (DIN1B)
X3-10 (GND)
Advanced safety
option board
X3-9 +24 V
e30bi385.10

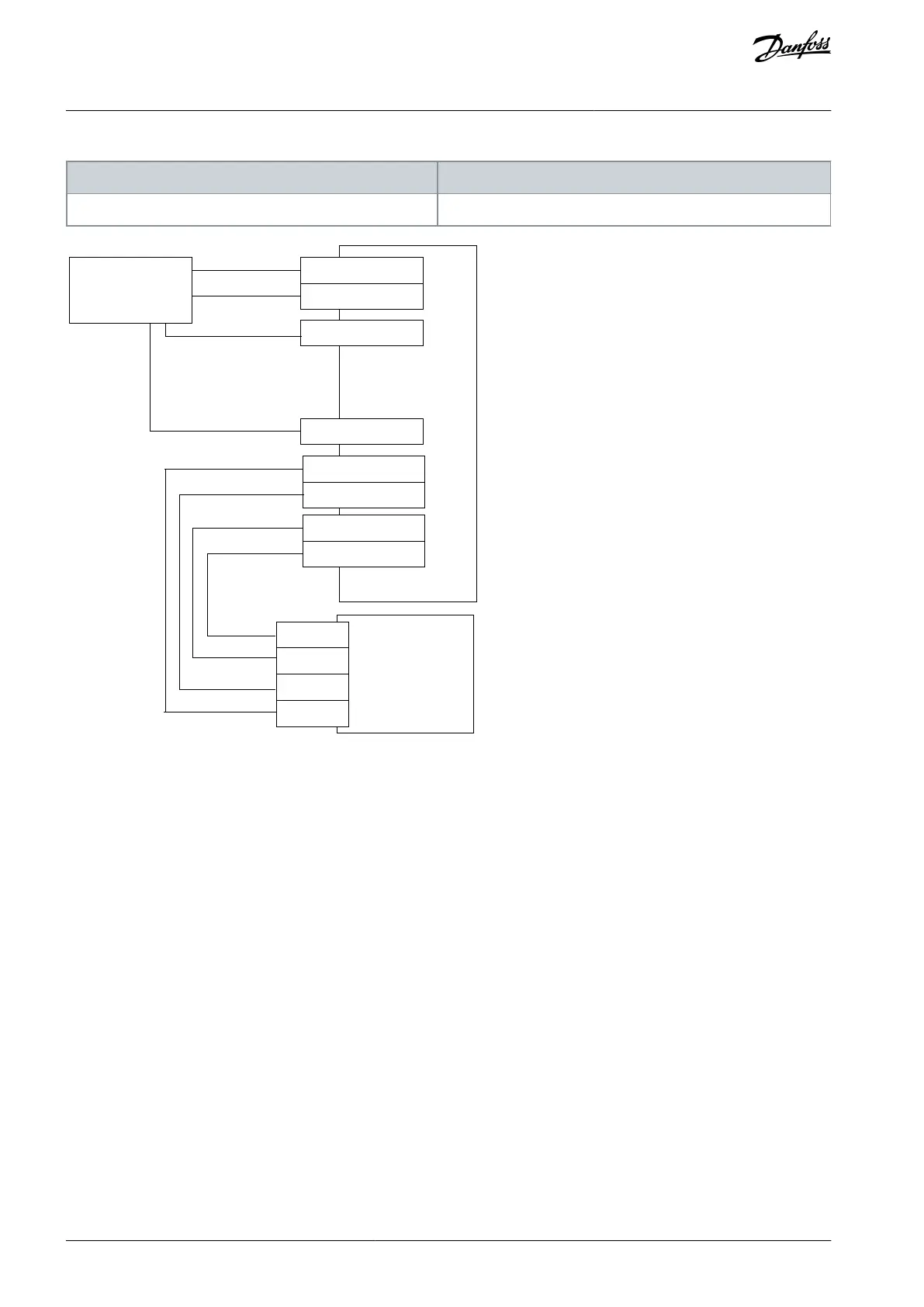

Illustration 84: Using 1 Proximity Sensor
AQ319736045637en-000101 / DPD01798188 | Danfoss A/S © 2021.06
Configuration Examples
VACON® NXP Advanced Safety Options
Operating Guide
