Danfoss VACON OPTEA User Manual

1
Configurable encoder voltage.
2
GND.
3
A+. Terminal A of digital pulse signal.
4
A-. Terminal A of digital pulse signal.
5
B+. Terminal B of digital pulse signal.
6
B-. Terminal B of digital pulse signal.
7
Z+. Reference signal, optional.
8
Z-. Reference signal, optional.
9
A+. Unmodified encoder signal loopback.
10
A-. Unmodified encoder signal loopback.
11
B+. Unmodified encoder signal loopback.
12
B-. Unmodified encoder signal loopback.
13
Z+. Unmodified encoder signal loopback.
14
Z-. Unmodified encoder signal loopback.
3.5.6 Option Board OPTBN
The OPTBN option board is similar to the OPTBL option board, but in addition, the OPTBN option board has a Sin/Cos type encoder
interface board attached to it.
The Sin/Cos type encoder interface board is used to connect an encoder with analog sinus and cosine signal to the OPTBN option
board.
From revision E onwards, the OPTBN (70CVB01958, 141X4610) board enables the use of closed-loop control. To use closed-loop
control, the OPTBN board must be installed in slot C. For further information, see 3.5.8 Closed-loop Control with OPTBN.
1 2 3 4 5 6 9 10 11 12 13 147 8
V GND + - + - + - + - + - + -
X7
X8
X3
X4
e30bi958.10

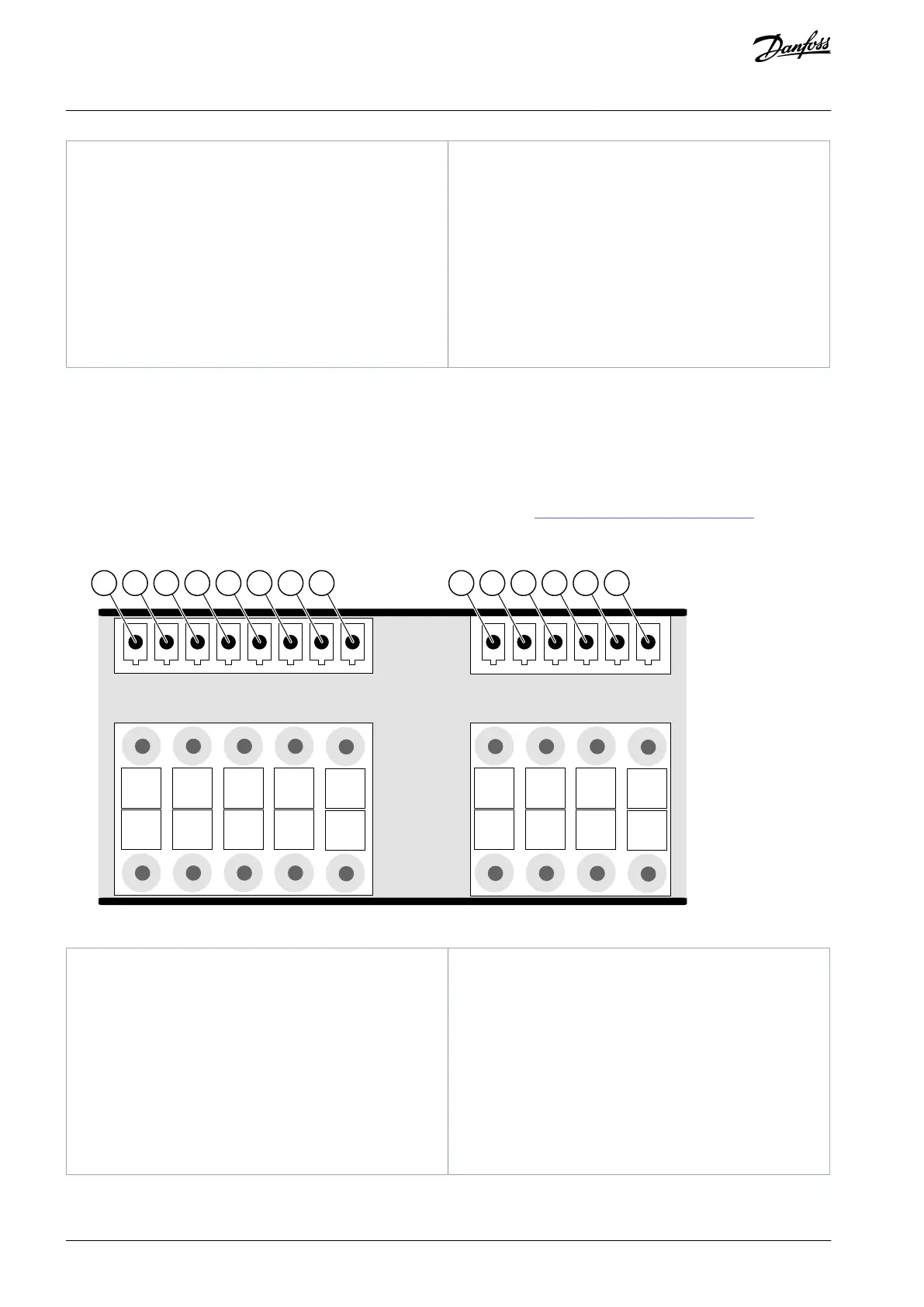

Illustration 9: The Terminals X7 and X8 of the Sin/Cos Type Encoder Interface Board
1
Encoder voltage. Selectable encoder voltage.
2
GND.
3
Sin+. Sinus terminal of analog pulse signal.
4
Sin-. Sinus terminal of analog pulse signal.
5
Cos+. Cosine terminal of analog pulse signal.
6
Cos-. Cosine terminal of analog pulse signal.
7
Z+. Reference signal, optional.
8
Z-. Reference signal, optional.
9
Sin+. Unmodified encoder signal loopback.
10
Sin-. Unmodified encoder signal loopback.
11
Cos+. Unmodified encoder signal loopback.
12
Cos-. Unmodified encoder signal loopback.
13
Z+. Unmodified encoder signal loopback.
14
Z-. Unmodified encoder signal loopback.
AQ319736045637en-000101 / DPD0179832 | Danfoss A/S © 2021.06
Overview of the System
VACON® NXP Advanced Safety Options
Operating Guide
