Danfoss VACON OPTEA User Manual

SinCos / Digital pulse
Encoder
Board
Advanced
safety
option
board
SLOT C SLOT D
Drive
Control Board
Encoder
SinCos / Digital pulse signals
e30bi369.10

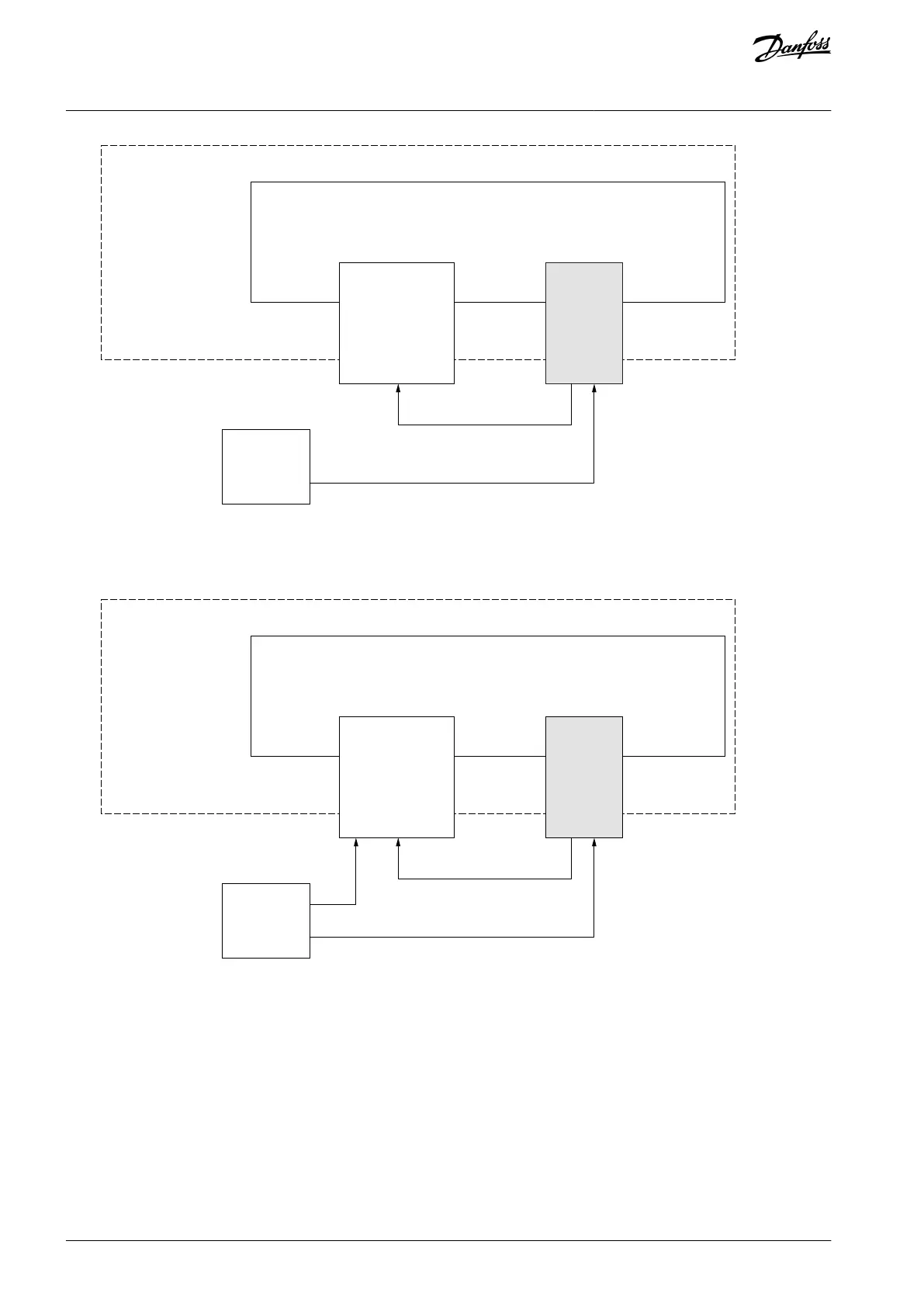

Illustration 10: Encoder Signals in Closed-loop Control
When an absolute encoder is used, the cables for the absolute data are connected directly to the encoder board id slot C. The Sin-
Cos/Digital pulse signal cables are connected to the Advanced safety option board and from there to the option board in slot C.
Absolute
Encoder
SinCos / Digital pulse
SinCos / Digital pulse signals
Absolute
Encoder
Board
Absolute
Data
Advanced
safety
option
board
SLOT C SLOT D
Drive
Control Board
e30bi370.10
Illustration 11: Absolute Encoder Signals in Closed-loop Control
This configuration enables the use of absolute encoder with position data for control. The safety functions are implemented with-
out the absolute data, and the safety functions with position monitoring are monitoring the relative position based on the incre-
mental signals from the encoder.
AQ319736045637en-000101 / DPD0179836 | Danfoss A/S © 2021.06
Overview of the System
VACON® NXP Advanced Safety Options
Operating Guide
