A B
Logical level
SS2 Request
SS2 Active
SOS Reached
SS2 Reached
Acknowledgement
t
t
t
t
t
e30bi358.10

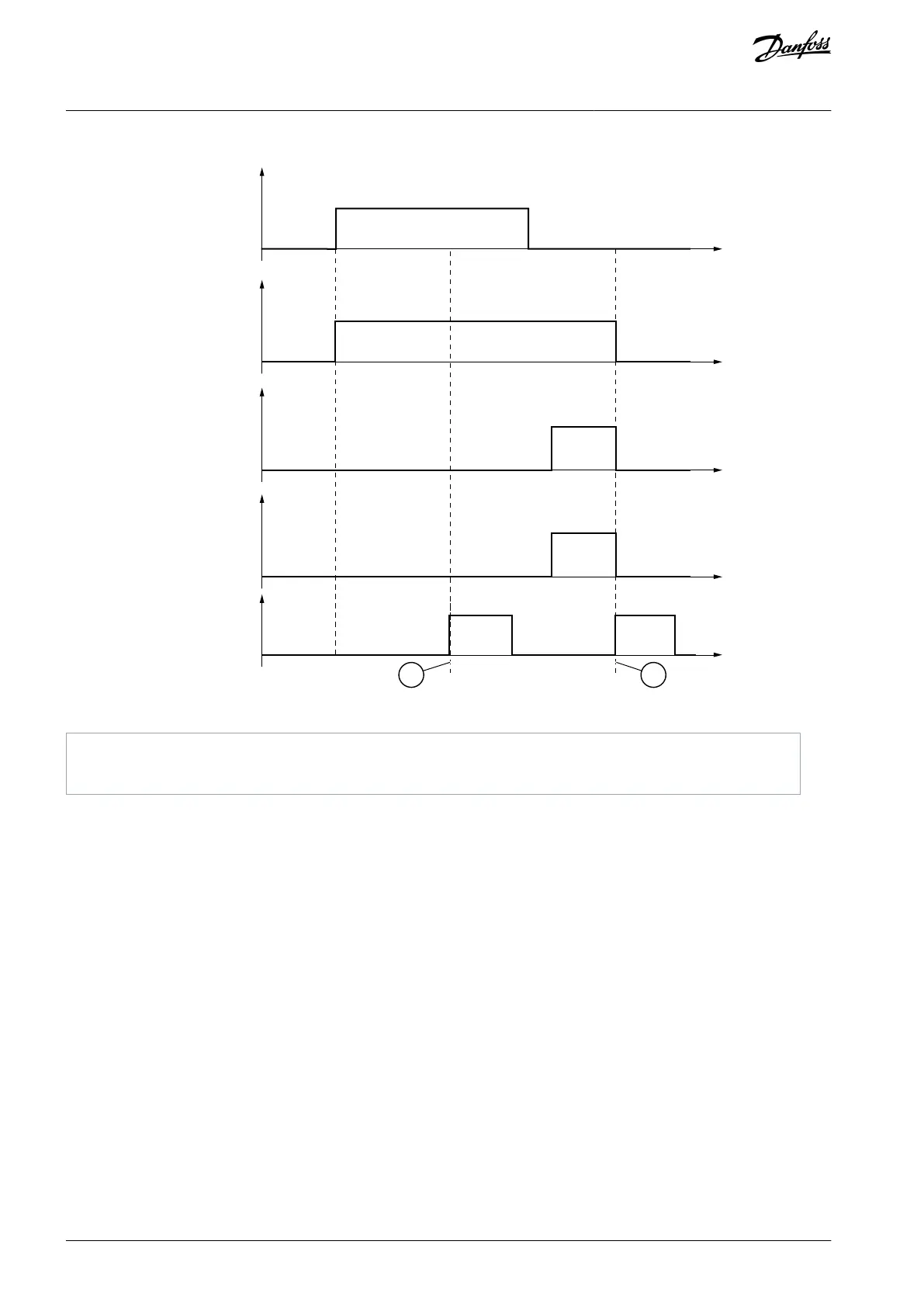

Illustration 22: The Deactivation of the SS2 Request Before the Function is Reached. Acknowledgment: Manual.
A
The manual acknowledgment is rejected because the safe stopping function is requested
B
After the safety functions are not requested, the manual acknowledgment is accepted.
