Danfoss VACON OPTEA

Speed
Logical level
Logical level
Automatic acknowledgement
Manual acknowledgement
STO Request
STO Active
STO Reached
SBC Reached
Acknowledgement
SBC t1
t
t
t
t
t
t
e30bi339.10

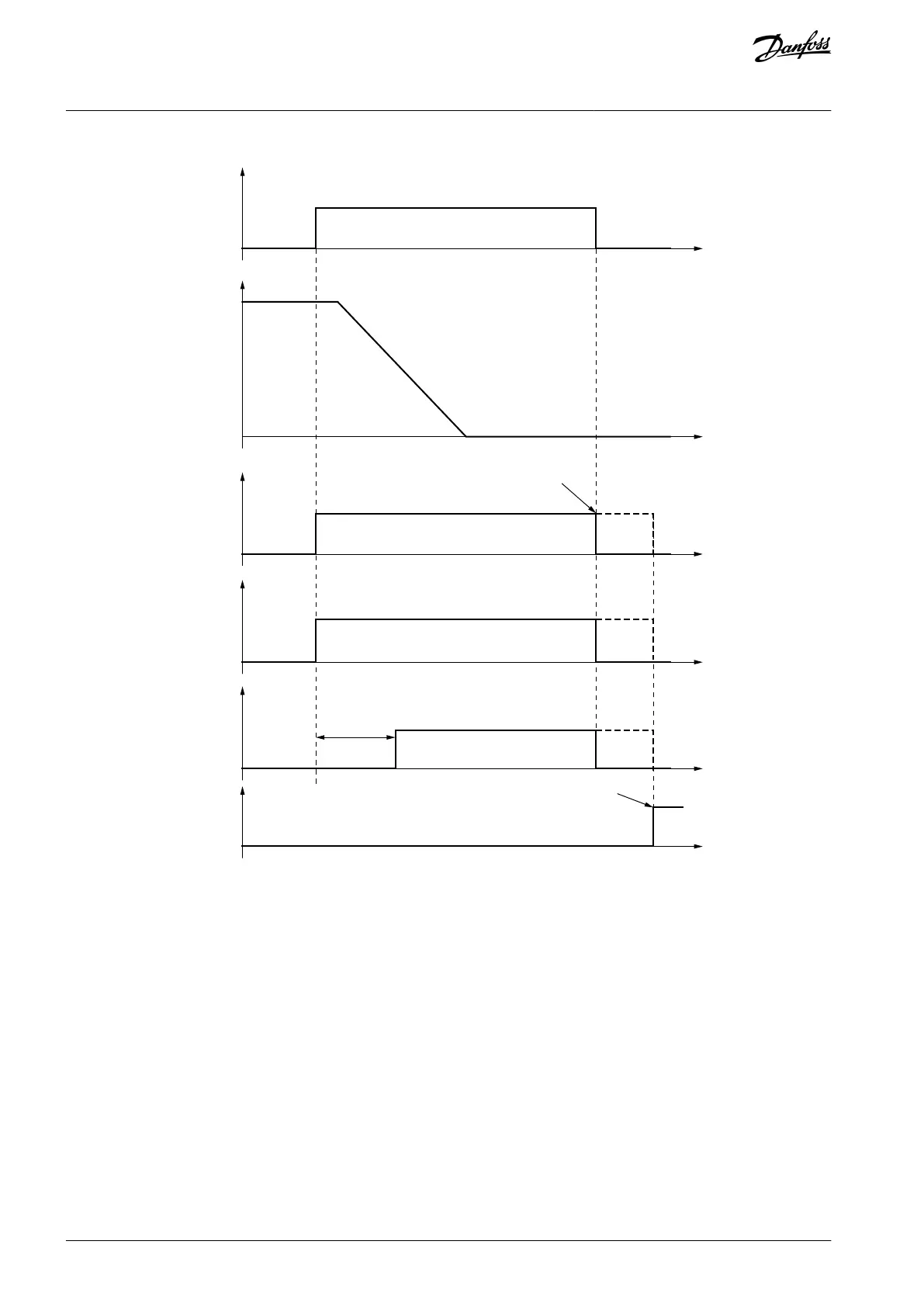

Illustration 33: The STO and SBC Signals when the SBC Function is Used, SBC Order = STO First, and the STO Function is Requested
AQ319736045637en-000101 / DPD0179872 | Danfoss A/S © 2021.06
Safety Functions
VACON® NXP Advanced Safety Options
Operating Guide
