Danfoss VACON OPTEA

Speed
Zero Speed
Logical level
Logical level
SS1 Request
SS1 Reached
SS1 Active
Acknowledgement
SS1 td2
t
t
t
t
t
Automatic acknowledgement
Manual acknowledgement
e30bi336.10

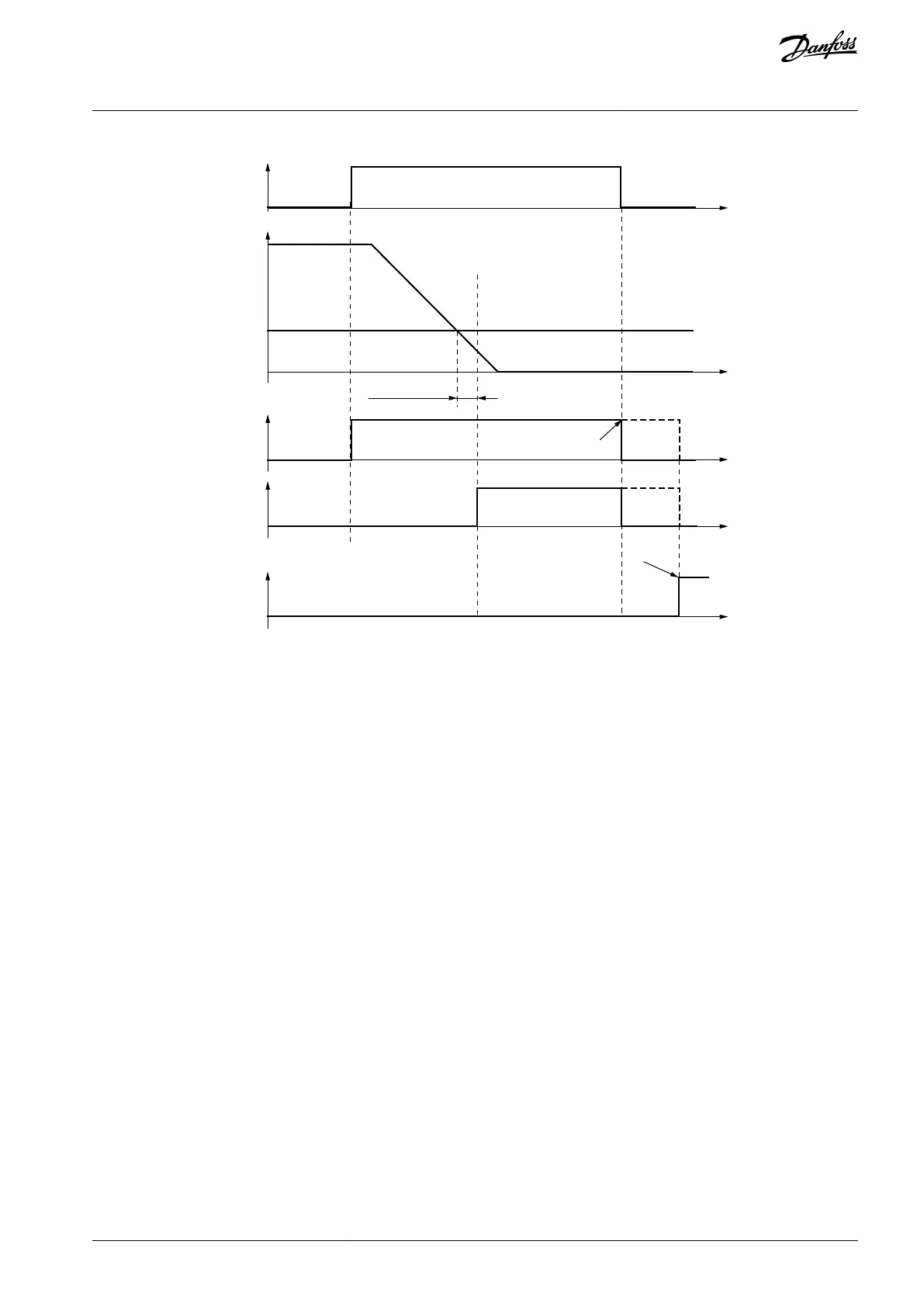

Illustration 39: The SS1 Signals in the Zero Speed Monitoring Mode
