TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
100
3

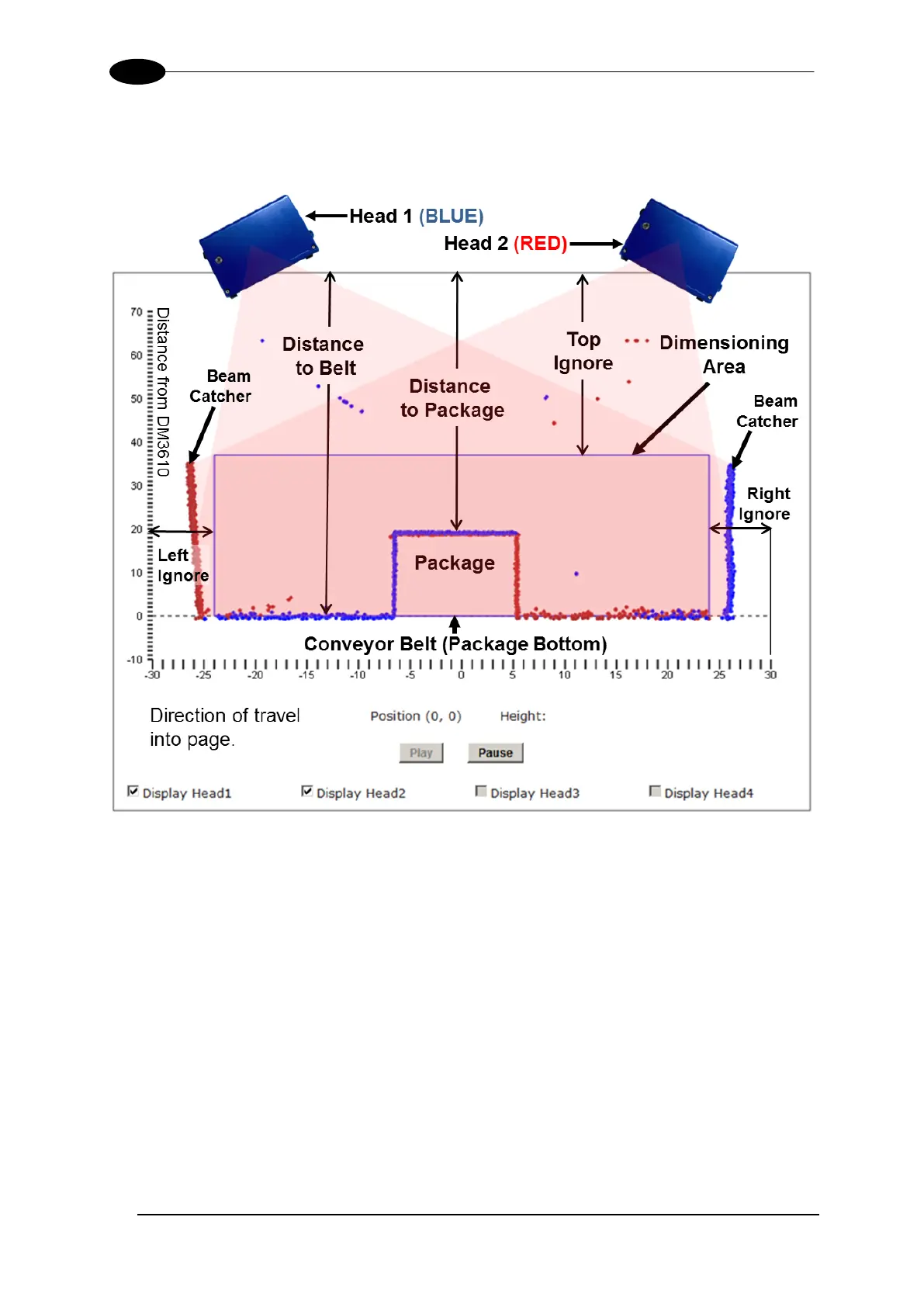

The DimView monitor is explained in the image below.
Figure 49: Understanding DimView
3. When you have selected the heads to display, click Play to activate DimView or click
Pause to freeze the image.
