ELECTRICAL INSTALLATION

45

3

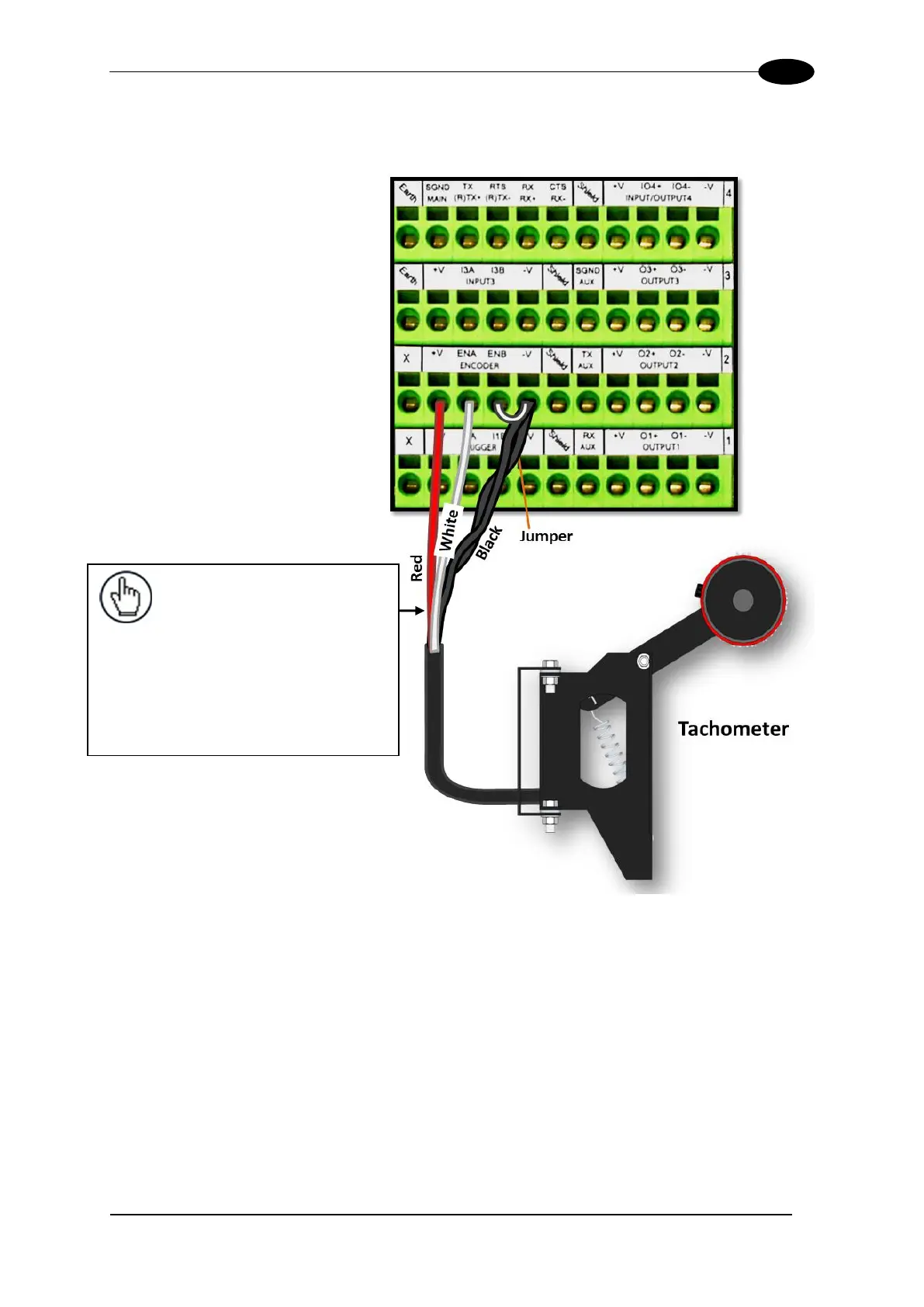

3.10.2 Tachometer Wiring (PNP Output)

Figure 41: Tachometer Wiring (PNP Output)

NOTE: Some tachometers may

have a different color coding:

Red (+V)

or White/Orange

White (signal)

or White/Blue

Black (ground) or Orange/White
