Datalogic DM3610 - Mounting Structure Assembly

TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
20
2

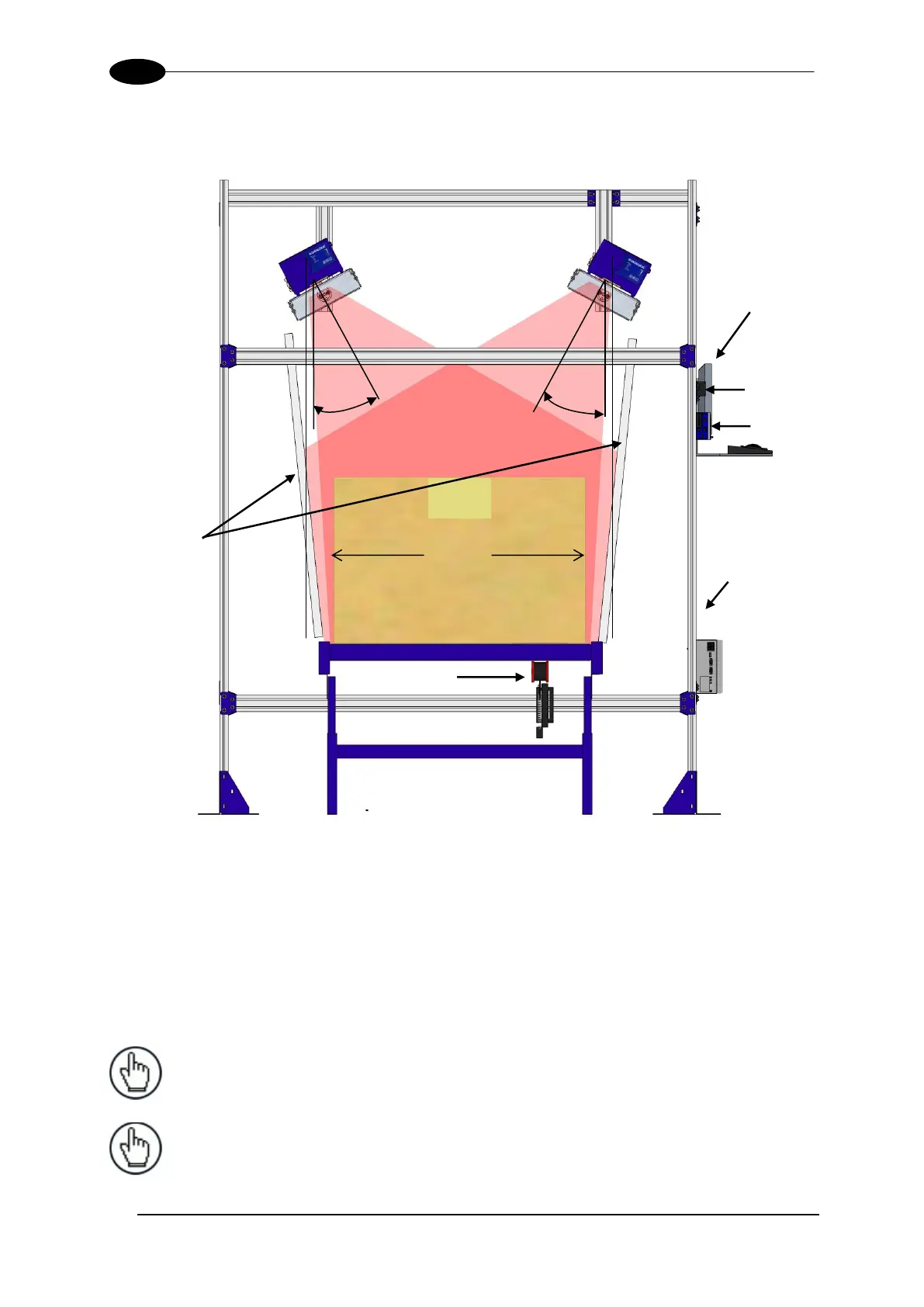

Figure 20: 2-Head Dimensioning System Installation – FRONT VIEW
2.4.9 Mounting Structure Assembly
When using the standard mounting structure provided by Datalogic, assemble as defined in
the application information provided with the structure.
NOTE: This manual addresses standard two-head system installation. The
information provided here may be superseded by any application specific
drawings provided by Datalogic.
NOTE: Depending on your specific installation, beam catchers may be
needed to avoid false dimensioning data points.
Tachometer
Direction of conveyor
travel is toward the
viewer
DM3610
HEAD 2
1200mm
[48”]
DC3000
Controller
CBX510
Monitor,
Mouse,
Keyboard
(optional)
Mount and angle the dimensioners based on
your application specifications.
DM3610
HEAD 1
Beam
Catchers
CD141
Display
