TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL

3.13.2 Slave DM3610 (PNP)

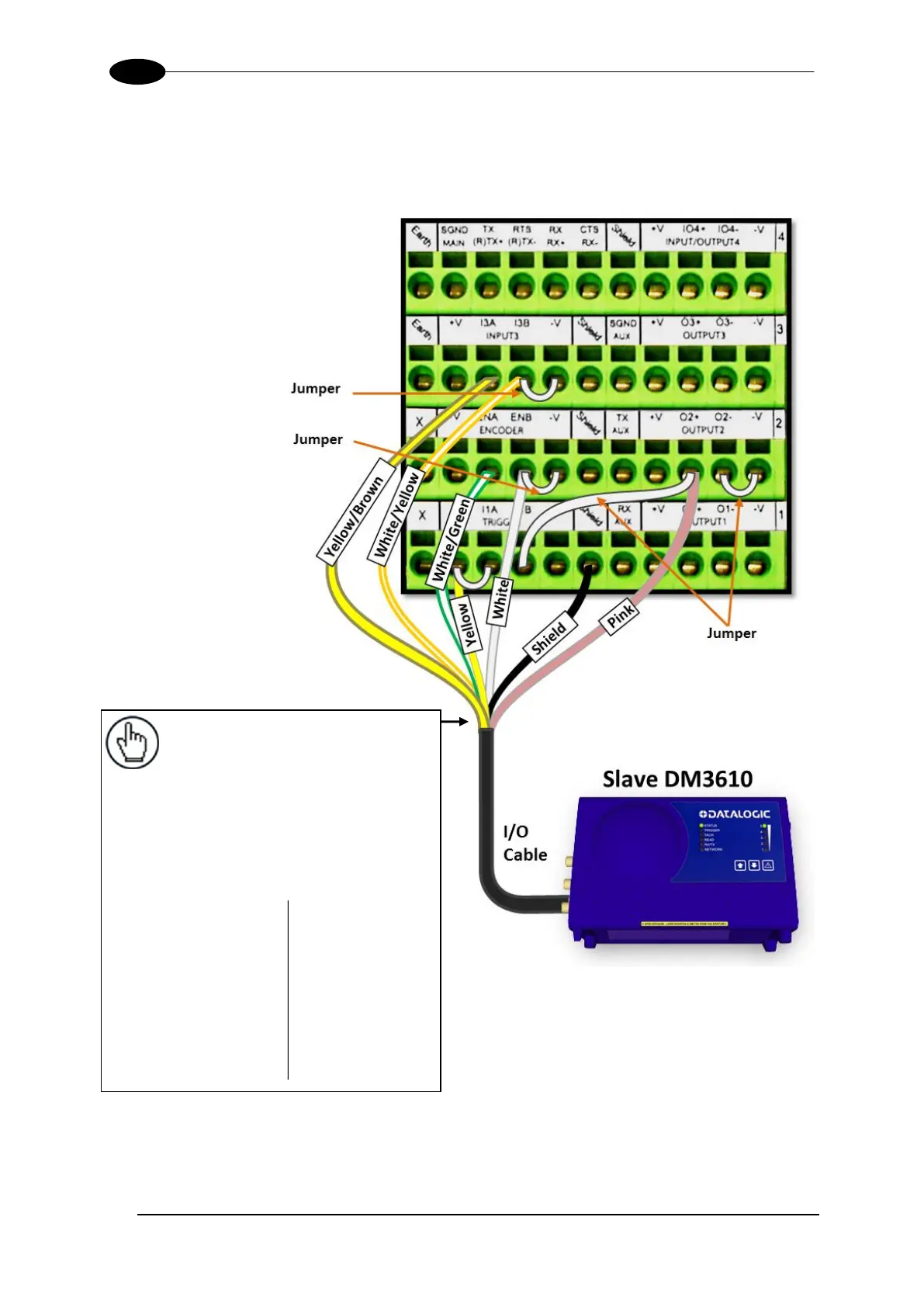

Figure 44: DM3610Slave Wiring (PNP)

NOTE: Colors are shown for

cables

93A050076 (3M),

93A050077 (5M),

and

93A050078

(10M),

but some installations or

spares may use cables

93A050059 (3M),

93A050058

(1M),

or 93A050060 (5M).

See the color key below:

93A050076

93A050077

93A050078

Yellow/Brown

White/Yellow

White/Green

Yellow

White

Pink

93A050059

93A050058

93A050060

Black/White

Blue

Grey

Orange

Green/Red

Green/Black
