ELECTRICAL INSTALLATION
47
3
3.13 WIRING TO A SLAVE DM3610 DIMENSIONER (HEAD2) VIA THE
CBX510
The Master DM3610 Dimensioner receives Tach/Trig signals through its main I/O cable
connected to the CBX510. Slave DM3610 units, however, must be wired directly to the
CBX510 pin-block for I/O communication.
The following diagram illustrates recommended I/O wiring from slave DM3610s to the
CBX510 connection box.
3.13.1 Slave DM3610 (NPN)

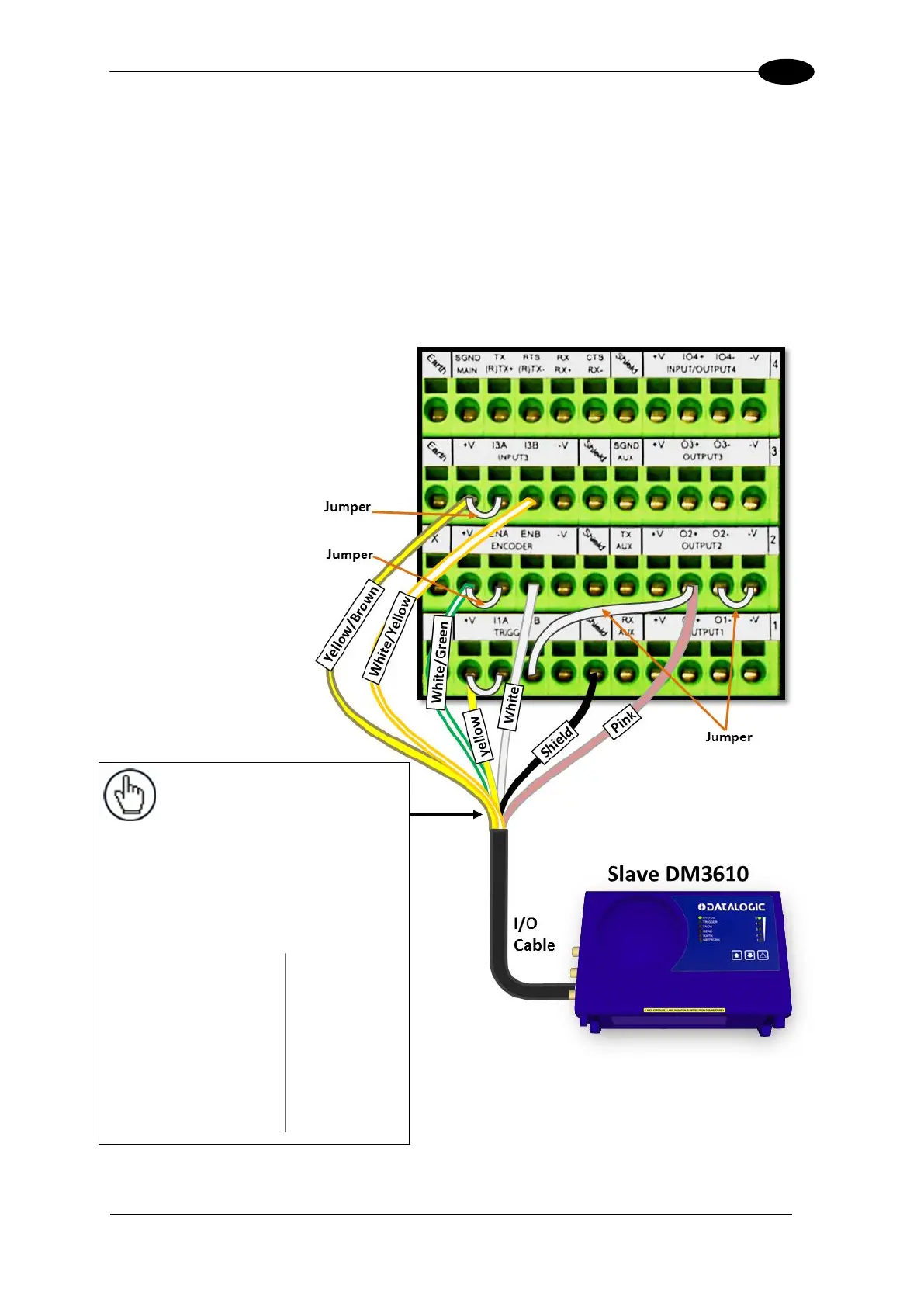

Figure 43: Slave DM3610 I/O Wiring (NPN)
NOTE: Colors are shown for
cables
93A050076 (3M),
93A050077 (5M),
and
93A050078
(10M),
but some installations or
spares may use cables
93A050059 (3M),
93A050058
(1M),
or 93A050060 (5M).
See the color key below:
93A050076
93A050077
93A050078
Yellow/Brown
White/Yellow
White/Green
Yellow
White
Pink
93A050059
93A050058
93A050060
Black/White
Blue
Grey
Orange
Green/Red
Green/Black
