TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
3.10 TACHOMETER WIRING
DM3610 applications over a conveyor belt use an accessory tachometer and mounting kit.
Use the cable provided with the tachometer to connect to the CBX510 pin block as shown
below.
3.10.1 Tachometer Wiring (NPN Output)

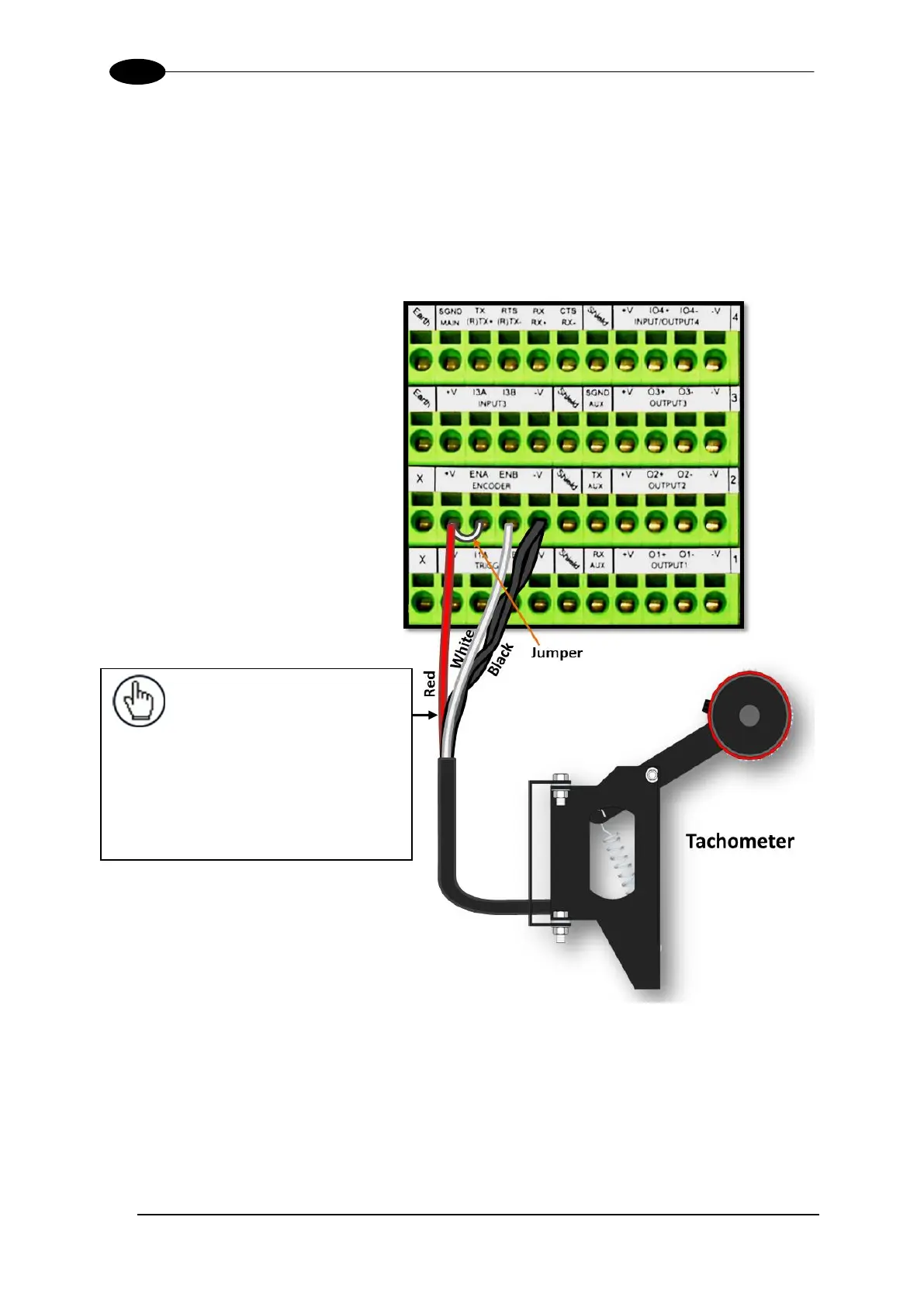

Figure 40: Tachometer Wiring (NPN Output)
NOTE: Some tachometers may
have a different color coding:
(+V)
Red or White/Orange
White or White/Blue
(Ground) Black or Orange/White
To Next Page
