2.4.6 Mounting Structure Considerations
You can provide your own mounting structure or Datalogic can design one for you. We
recommend using a Datalogic mounting structure for standard applications.
Your mounting structure must provide the following capabilities:
It is adjustable enough for you to move your dimensioners to the optimum position for
proper dimensioning.
It is able to hold 16 kg [36 lbs] (three times the weight of the DM3610) times the total
number of dimensioners in your application.
It allows a technician access to the dimensioners when mounted.
It must be as vibration free as possible so as not to affect the dimensioning accuracy.
It is constructed of steel or aluminum.
It provides approximately 300 mm [12 inches] minimum clearance on all sides of the
dimensioners and DC3000 Dimensioning Controller. This clearance is necessary to
provide proper ventilation, allow access to all panels of the dimensioners, and allow room
for proper servicing.

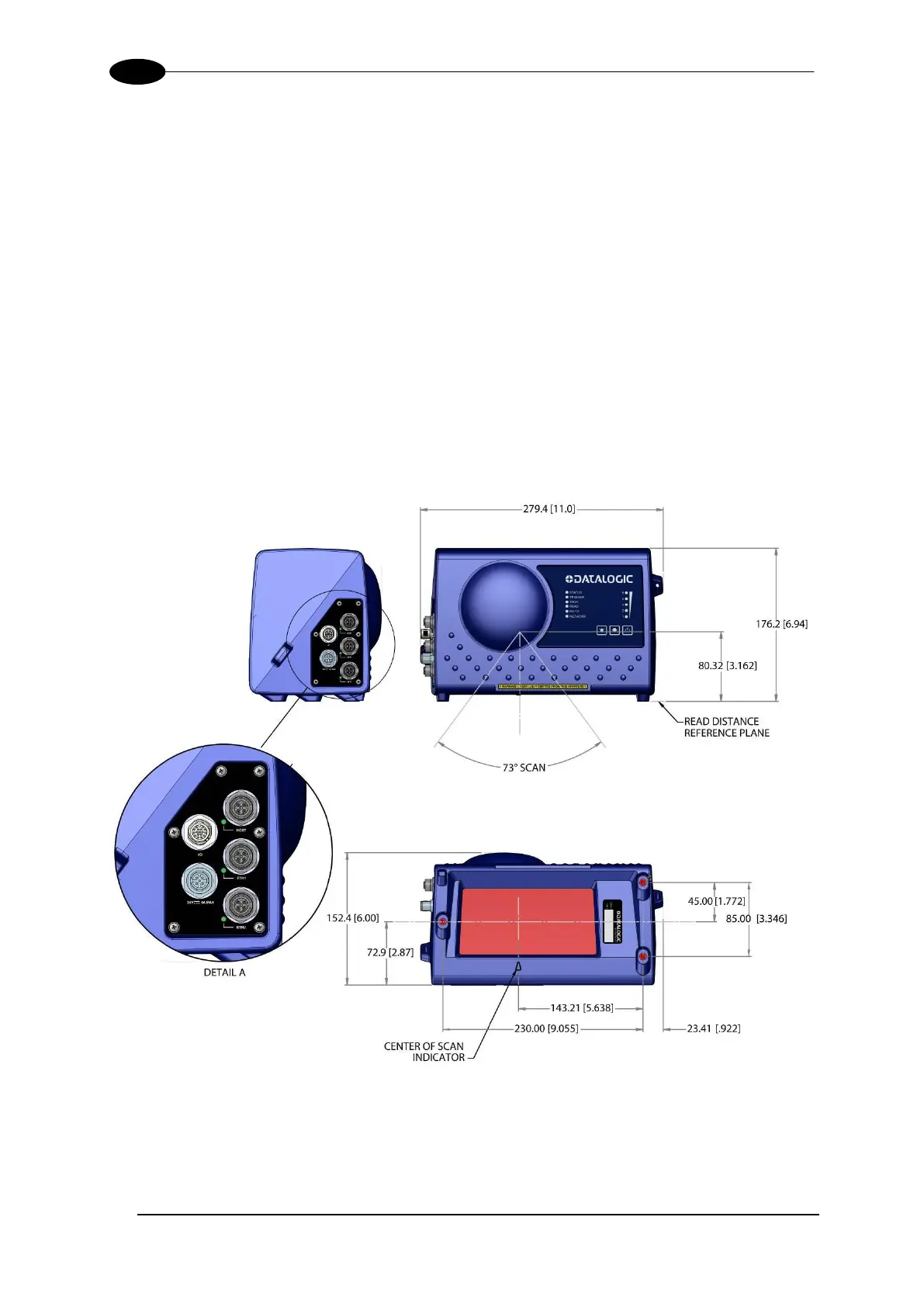

Figure 14: DM3610 Dimensions
